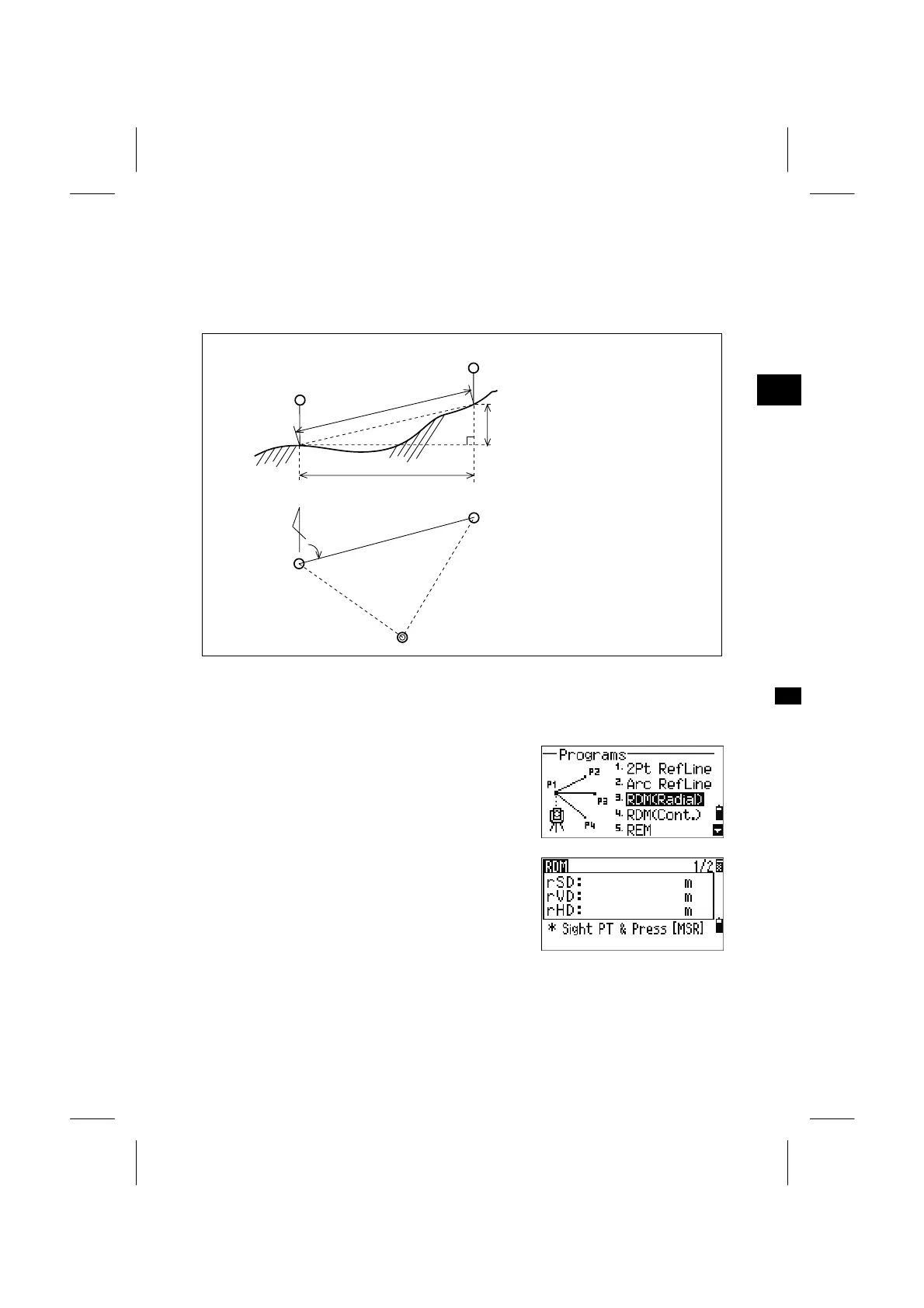

3. Remote Distance Measurement
Measures the horizontal distance, vertical distance and slope distance between two
points.
rHD
rHA
rVD
Horizontal angle 0 direction
1st sighting
point
1st sighting
point
rSD
2nd sighting point
Station point
2nd sighting point
rSD: Slope distance between two points
rHD: Horizontal distance between two points
rVD: Vertical distance between two points
rV%: Percentage of grade (rVD/rHD) x 100%
rGD: Vertical grade (rHD/rVD) :1
rAZ: Azimuth from first point to second point
3
PRG: 3. RDM (Rad)
3-1. RDM (Radial)
Measuring between the Current and the First Point Measured
Press the [3] key on the PRG menu to enter the
RDM (Radial) function.
Sight the first point and press the [MSR1] or
[MSR2] key.
3-60
To Next Page
