Using the Simple Program Function Section 4-16
The program END status can also be cleared using an event. If the program
start function is assigned to an event, however, the program end status cannot
be cleared from the Program Start parameter display, which will function only
as a monitor display.
4-16-3 Combining a Simple Program with an SP Ramp

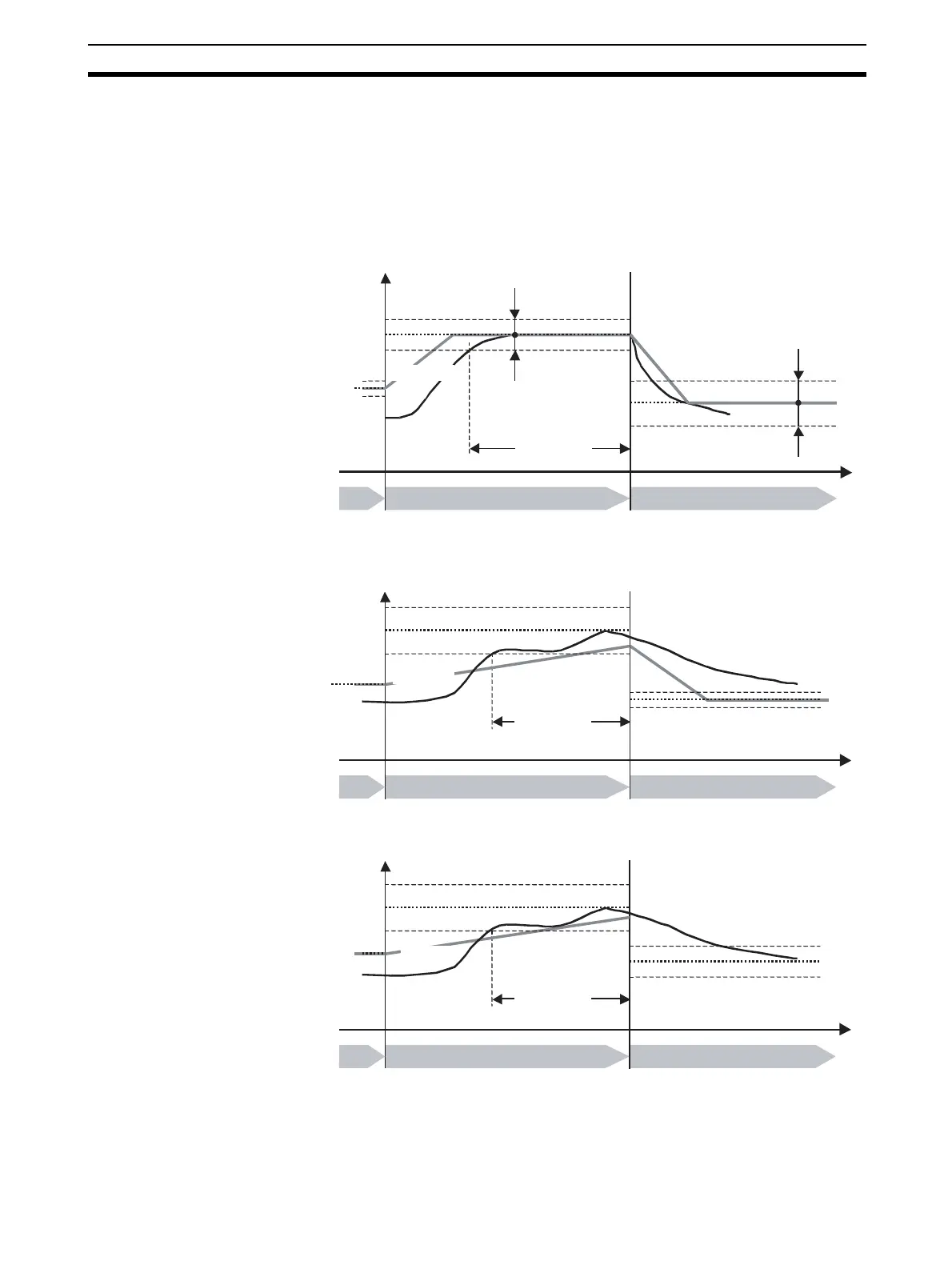

Control can be combined with the SP ramp by setting the SP Ramp Set Value
and Soak Time parameters for each bank.
If the program moves to the next bank at the end of the soak time before the
ramp SP reaches the SP, the SP ramp operation will extend across the banks
as shown below as long as the SP Ramp Set Value parameter is not set to 0.
If the SP Ramp Set Value parameter is set to 0 for the next bank, SP ramp
operation will be stopped as shown below.
Bank n+1Bank n
SPn
PV
Wait band
Soak time
SPn+1
SPn-1
Wait band
Wait band
Wait band
Ramp SP
Bank n+1Bank n
SPn
PV
Soak time
SPn+1
SPn-1
Ramp SP
Bank n+1Bank n
SPn
PV
Soak time
SPn+1
SPn-1
Ramp SP
