Calibrating the Transfer Output
Section 6-6

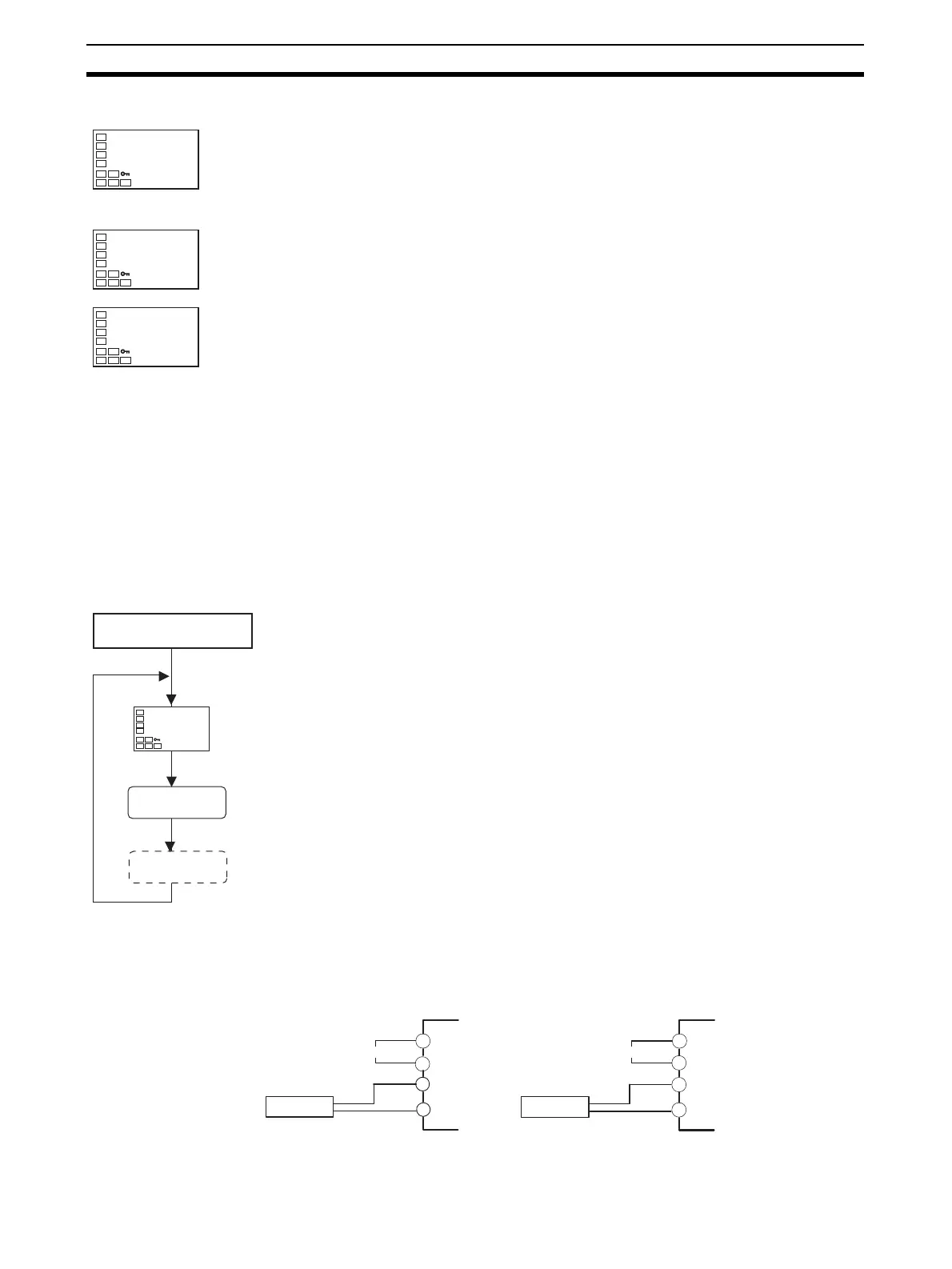

6-6 Calibrating the Transfer Output
Input type 27 or 28:
Input type 29:
6. When the M Key is pressed, the status changes as shown to the left.
Set the STV to 1 V.
Allow the count value on the No. 2 display to fully stabilize, then press the
D Key to temporarily register the calibration settings.
If this count value is outside of the specified range, the No. 2 display will
flash and the count value will not be temporarily registered.
7. When the M Key is pressed, the status changes as shown to the left.
The data to be temporarily registered is not displayed if it is not complete.
Press the U Key. The No. 2 display changes to yes. Release the key and
wait two seconds or press the M Key. This stores the temporarily regis-
tered calibration data to EEPROM.
To cancel the saving of temporarily registered calibration data to EE-
PROM, press the M Key (while no is displayed in the No. 2 display) with-
out pressing the U Key.
8. The calibration mode is ended by turning the power OFF.
For Controllers that have a transfer output (E5AN/EN-H@@F), transfer
output calibration continues to be performed. For details on the settings,
refer to 6-6 Calibrating the Transfer Output on page 292.
For Controllers that have a transfer output (E5@N-H@@F),
the Transfer Output Calibration Screen will be displayed
after input calibration has been completed.
Use the following procedure for calibration.
1. Connect the DMM to the transfer output terminal.
1v-1
5ac0
2v-1
4ad9
str
no
adj
30
Advanced Function
Setting Level
Main Input
Calibration
Input calibration
display
M
M
M
M
Note: This is displayed only for
Controllers that have a
transfer output (E5AN/EN-
H@@F).
Transfer Output
Calibration
E5AN/EN-H
+
−
28
27
15
14
10
DMM
Input power supply
+
−
E5CN-H
DMM
Input power supply
