Startup Procedure and
Test Run
4
4.5 Keypad Operation
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 131
The configuration procedure is complete.

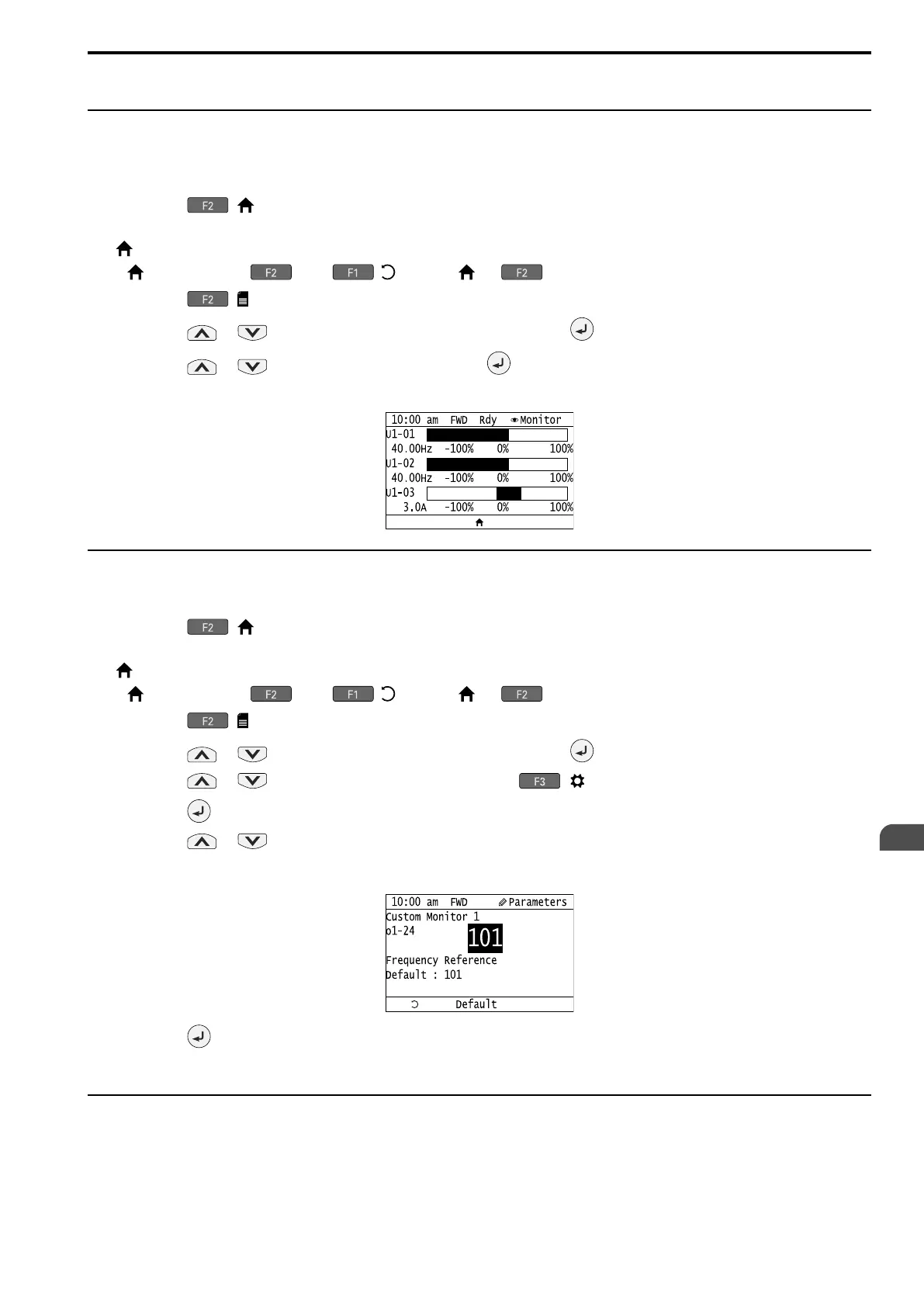

◆ Show Monitors as Bar Graphs
The procedure in this section shows how to show a specific monitor as a bar graph. You can show a maximum of
three.
1. Push ( ) to display the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Bar Graph], and push .
The screen will show the monitors as shown in this figure.
◆ Set the Monitors to Show as Analog Gauges
The procedure in this section shows how to show the frequency reference monitor as an analog gauge.
1. Push ( ) to show the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Analog Gauge], then push ( ).
5. Push .
6. Push or to select the monitor number to register.
Enter the three digits in “x-xx” part of monitor Ux-xx to identify which monitor to output. For example, to
show monitor U1-01 [Frequency Reference], set it to "101" as shown in this figure.
Push .
The configuration procedure is complete.
◆ Display Monitors as an Analog Gauge
The following explains how to display the contents selected for a monitor as an analog gauge.
