4.5 Keypad Operation
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 143

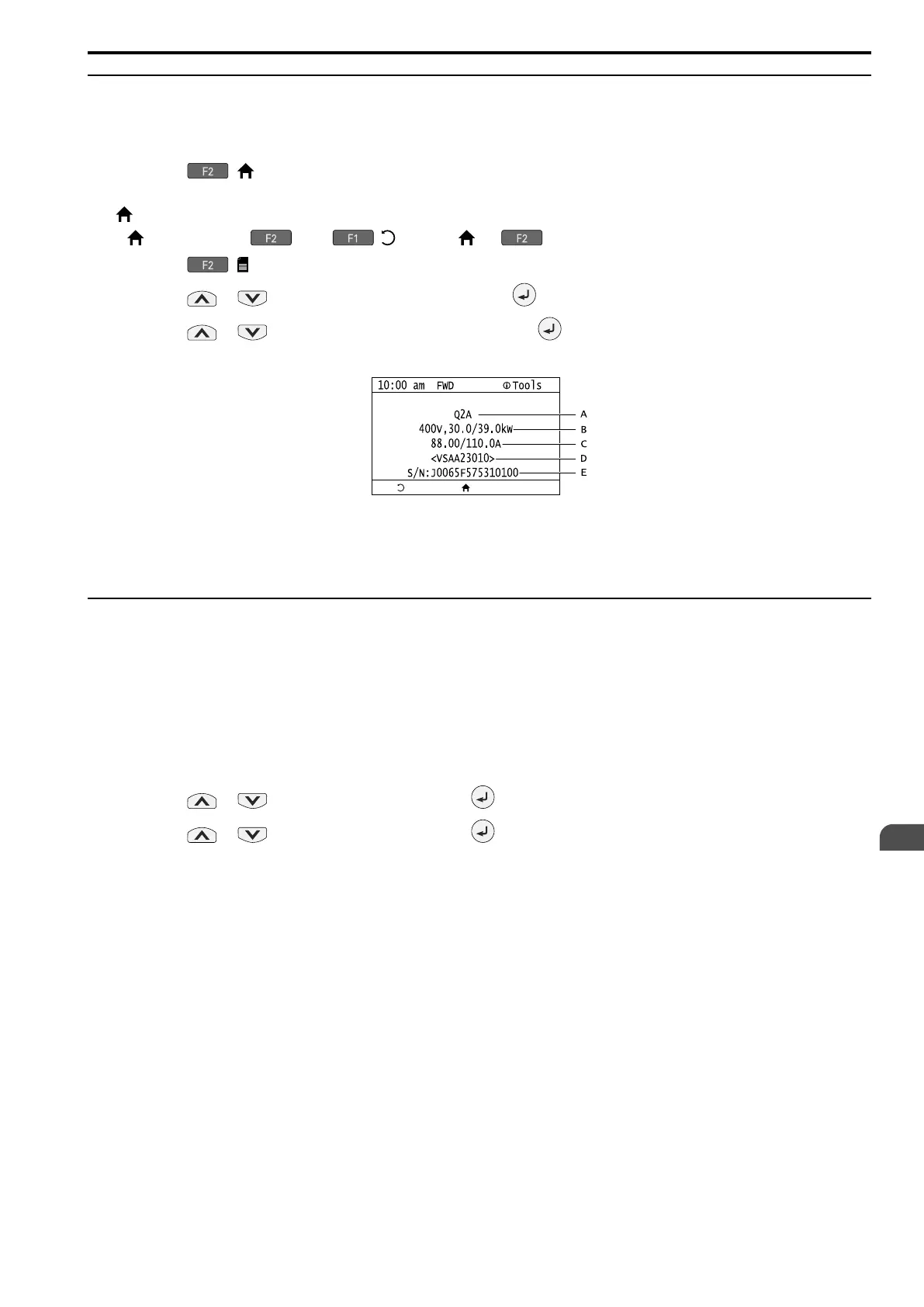

◆ Show Information about the Drive
The procedure in this section shows how to show the drive model, maximum applicable motor output (HD/ND),
rated output current (HD/ND), software version, and the serial number on the keypad.
1. Push ( ) to show the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Configuration], then push .
4. Push or to select [Drive Information], then push .
The keypad will show the drive information.
A - Drive Series
B - Maximum Applicable Motor
Output (HD/ND)
C - Rated Output Current (HD/ND)
D - Drive Software Version
E - Serial Number
◆ Write Automatically Backed-up Parameters to the Drive
You can automatically back up parameters to the keypad connected to the drive and write those parameters to a
different drive as specified by the settings of o3-06 [AutoBackup Selection] and o3-07 [AutoBackup Lapse].
Note:
• Set o3-06 = 1 [AutoBackup Selection = Enabled] in each drive to which you will write the parameters.
• This operation is not available when the parameters in the keypad and the parameters on the other drives are set to the same values.
1. Connect the keypad to the drive.
The drive will ask to restore the parameters.
2. Push or to select [Yes] and then push .
3. Push or to select [Yes] and then push to confirm the restore process.
The keypad will show the “End” message when the write process is complete.
