12.10 o: KEYPAD
804 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
12.10 o: KEYPAD
o parameters set keypad functions.
Note:
You cannot set the parameters in Table 12.57 with the optional LED keypad.
Table 12.57 Parameters that You Cannot Set with the LED Keypad
No. Name
o1-05
LCD Contrast Adjustment
o1-24 to o1-35
Cust.Monitor 1 to 12
o1-36
LCD Backlight Brightness
o1-37
LCD Blight ON/OFF Selection
o1-38
LCD Blight Off-Delay
o1-39
Show Init Screen
o1-40
Home Screen Selection Mode
o1-41 to o1-46
1st to 3rd Monitor Area Selections/Settings
o1-47 to o1-51
Trend Plot 1 or 2 Scale Settings
o1-55 to o1-56
Analog Gauge Area Selection/Setting
No. Name
o3-04
COPY Memory Selection
o3-05
COPY Items Selection
o3-06
AutoBackup Selection
o3-07
AutoBackup Lapse
o4-22
Time Format
o4-23
Date Format
o5-01
Log Start Selection
o5-02
Log Sample Lapse
o5-03 to o5-12
Log Monitor Data 1 to 10

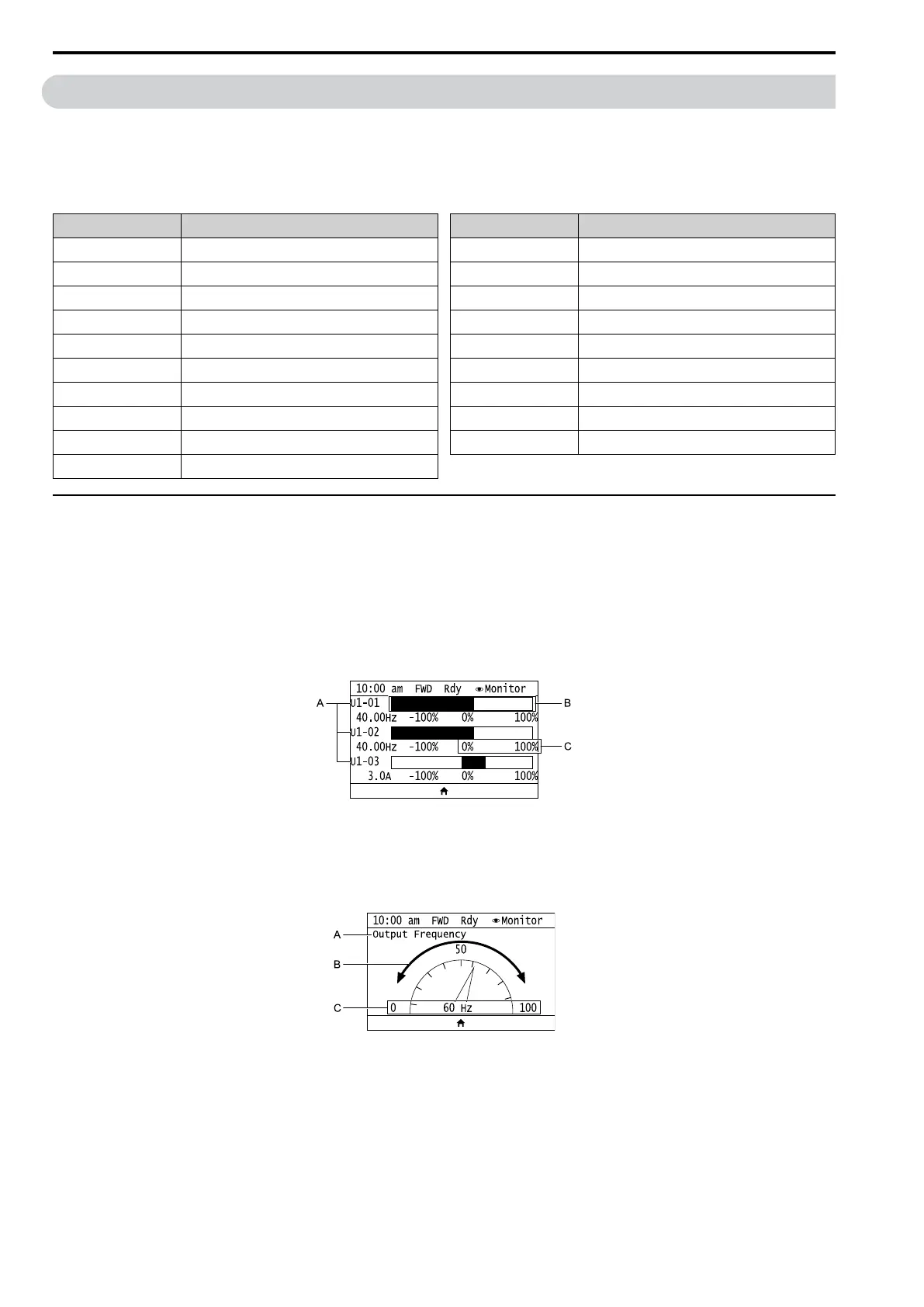

◆ o1: KEYPAD DISPLAY
o1 parameters select the parameters shown on the initial keypad screen and to configure the parameter setting
units and display units. These parameters also adjust the backlight and contrast of the LCD display.
■ Home Screen Display Format
o1-40 [Home Screen Selection Mode] changes the display of the monitor shown on the Home screen. You can
show numerical values or one of these three displays on the Home screen monitor:
Bar Graph Display
A - Select Ux-xx [MONITORS] with
o1-24, o1-25, and o1-26.
B - Configure display regions with
o1-41, o1-43, and o1-45.
C - Select display ranges with o1-42,
o1-44, and o1-46.
Analog Gauge Display
A - Select Ux-xx [MONITORS] with
o1-24.
B - Configure display regions with
o1-56.
C - Select display ranges with o1-55.
