Parameter Details
12
12.7 H: TERMINALS
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 723
■ 32: Q2pack AI3
Setting Function Description
32 Q2pack AI3
Use with Q2pack. Refer to the Q2pack online manual for more information.
◆ H4: ANALOG OUTPUTS
H4 parameters set the drive analog monitors. These parameters select monitor parameters, adjust gain and bias,
and select output signal levels.
■ Calibrate Meters Connected to MFAO Terminals AO1 and AO2
You can use H4-02, H4-03, H4-05, and H4-06 [AO1 An.Out Gain, AO1 An.Out Bias, AO2 An.Out Gain, and AO2
An.Out Bias] to calibrate meters connected to terminals AO1 and AO2.
No. Name Setting Range Default Setting
H4-02 AO1 An.Out Gain -999.9 - 999.9% 100.0%
H4-03 AO1 An.Out Bias -999.9 - 999.9% 0.0%
H4-05 AO2 An.Out Gain -999.9 - 999.9% 50.0%
H4-06 AO2 An.Out Bias -999.9 - 999.9% 0.0%
H4-07 AO1 Signal Level Select
0: 0-10 VDC
1: -10 +10 VDC
2: 4-20 mA
0
H4-08 AO2 Signal Level Select
0: 0-10 VDC
1: -10 +10 VDC
2: 4-20 mA
0

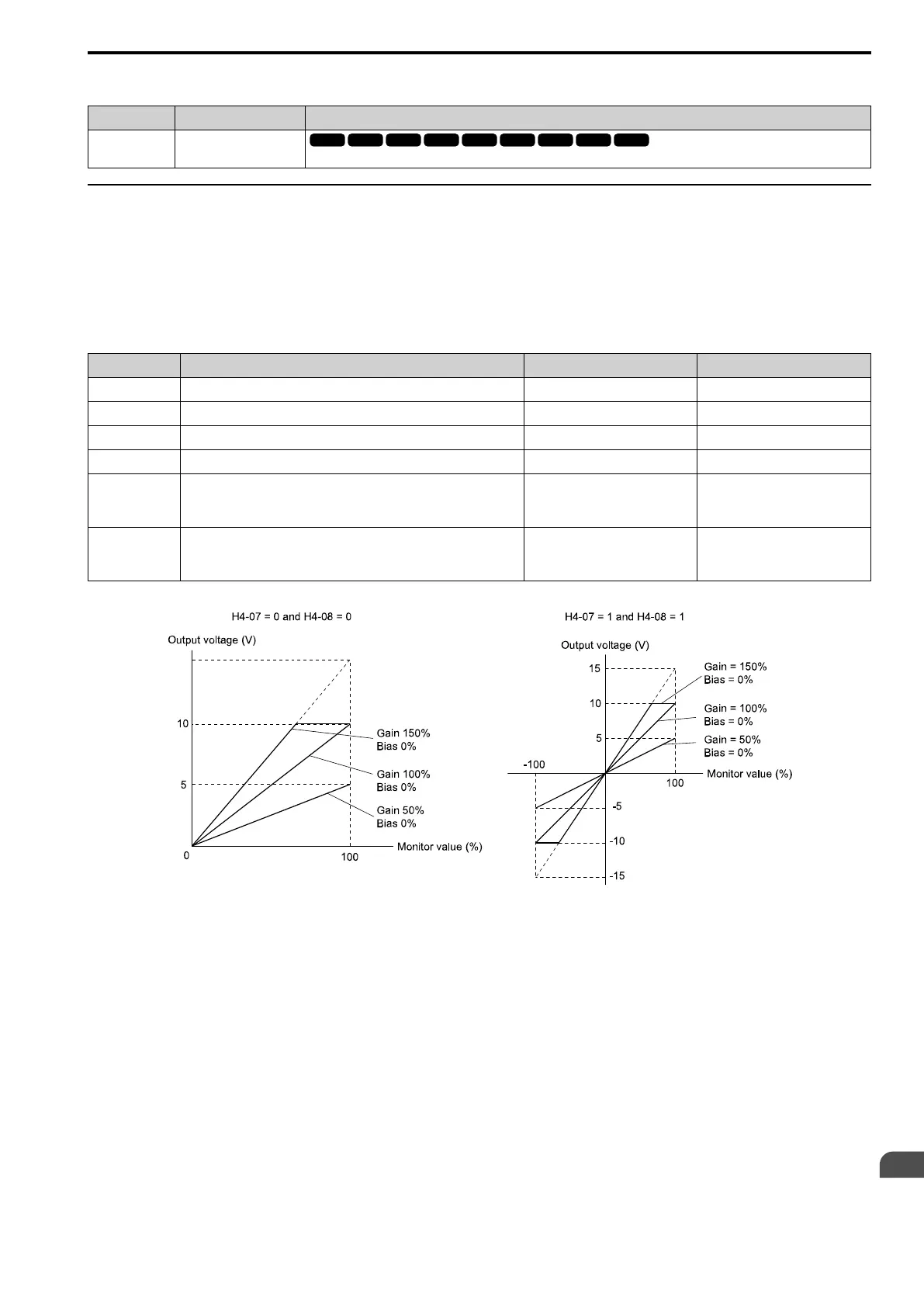

Figure 12.107 shows the gain and bias.
Figure 12.107 Analog Output Gain/Bias Configuration Example 1
For example, when the parameter value set to analog output is 0, and a 3 V signal is output to terminal AO1, H4-
03 [AO1 An.Out Bias] is set to 30%.
