Parameter List
11
11.4 C: TUNING
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 407

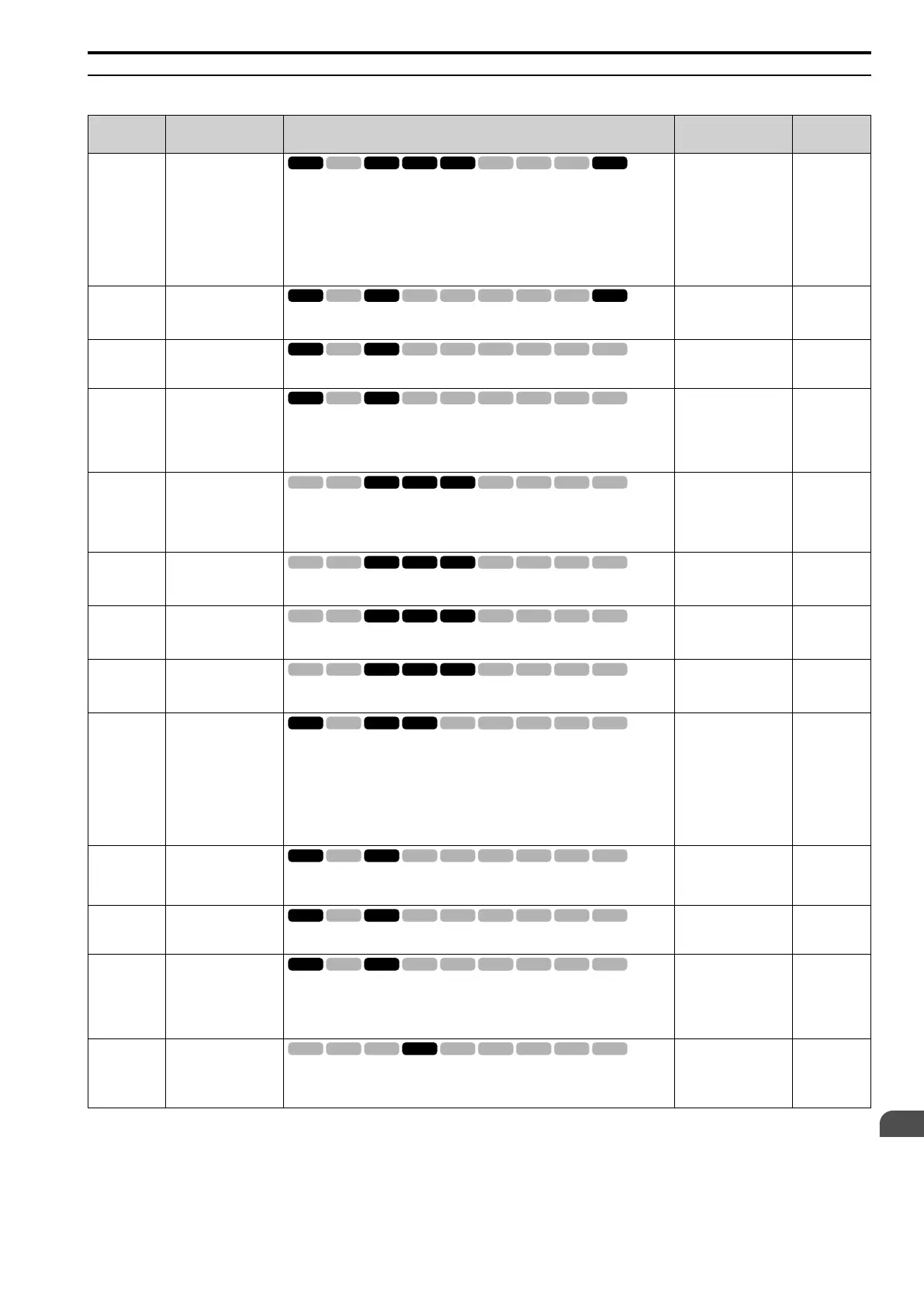

◆ C3: SLIP COMPENSATION
No.
(Hex.)
Name Description
Default
(Range)
Ref.
C3-01
(020F)
RUN
Slip Comp Gain
Sets the gain for the slip compensation function. Usually it is not necessary to change
this setting.
Note:
Correctly set these parameters before changing the slip compensation gain:
• E2-01 [Mot Rated Current (FLA)]
• E2-02 [Mot Rated Slip] (Set during Auto-Tuning when A1-02 = 2 [Control
Method = OLVector])
• E2-03 [Mot No-Load Current]
Determined by A1-02
(0.0 - 2.5)
570
C3-02
(0210)
RUN
Slip Comp Delay Time
Sets the slip compensation delay time when speed is unstable or when the slip
compensation response is too slow. Usually it is not necessary to change this setting.
Determined by A1-02
(0 - 10000 ms)
571
C3-03
(0211)
Slip Comp Limit
Sets the upper limit for the slip compensation function as a percentage of the motor
rated slip.
200%
(0 - 250%)
571
C3-04
(0212)
Slip Comp@Regen
Sets the slip compensation function during regenerative operation.
0 : Disabled
1 : Enable>6 Hz
2 : Enable>C3-15
0
(0 - 2)
571
C3-05
(0213)
Vout Limit Selection
Sets the automatic reduction of motor magnetic flux when the output voltage is
saturated.
0 : Disabled
1 : Enabled
0
(0, 1)
572
C3-16
(0261)
Expert
Vout Limit Start Level
Sets the modulation factor that starts the output voltage limit operation when C3-05 = 1
[Vout Limit Selection = Enabled].
90.0%
(70.0 - 90.0%)
572
C3-17
(0262)
Expert
Vout Limit Max Level
Sets the modulation factor used with C3-18 [Vout Limit Level] for the output voltage
limit operation when C3-05 = 1 [Vout Limit Selection = Enabled].
100.0%
(85.0 - 100.0%)
572
C3-18
(0263)
Expert
Vout Limit Level
Sets the maximum drop width of the voltage reference when C3-05 = 1 [Vout Limit
Selection = Enabled].
90.0%
(50.0 - 100.0%)
572
C3-21
(033E)
RUN
M2 Slip Comp Gain
Sets the gain for the motor 2 slip compensation function. Usually it is not necessary to
change this setting.
Note:
Correctly set these parameters before changing the slip compensation gain:
• E4-01 [M2 Rated Current (FLA)]
• E4-02 [M2 Rated Slip] (Set during Auto-Tuning when E3-01 = 2 [M2 Control
Method Selection = OLVector])
• E4-03 [M2 No-Load Current]
Determined by E3-01
(0.0 - 2.5)
572
C3-22
(0241)
RUN
M2 Slip Comp
DelayTime
Sets the slip compensation delay time for motor 2 when speed is unstable or when the
slip compensation response is too slow. Usually it is not necessary to change this
setting.
Determined by E3-01
(0 - 10000 ms)
573
C3-23
(0242)
M2 Slip Comp Limit
Sets the upper limit for the slip compensation function as a percentage of the motor 2
rated slip.
200%
(0 - 250%)
573
C3-24
(0243)
M2 Slip Comp Regen
Condition
Sets the slip compensation during regenerative operation function for motor 2.
0 : Disabled
1 : Enable>6 Hz
2 : Enable>C3-15
0
(0 - 2)
573
C3-28
(1B5B)
Expert
Adaptative Slip Control
Mode
Sets the slip compensation function mode.
0 : Normal
1 : Advanced
0
(0, 1)
574
