Electrical
Installation
3
3.3
Main
Circuit
Wiring
SIEPYEUOQ2A01A
AC
Drive
Q2A
T
echnical
Manual
71
◆
Configuration
of
Main
Circuit
T
erminal
Block

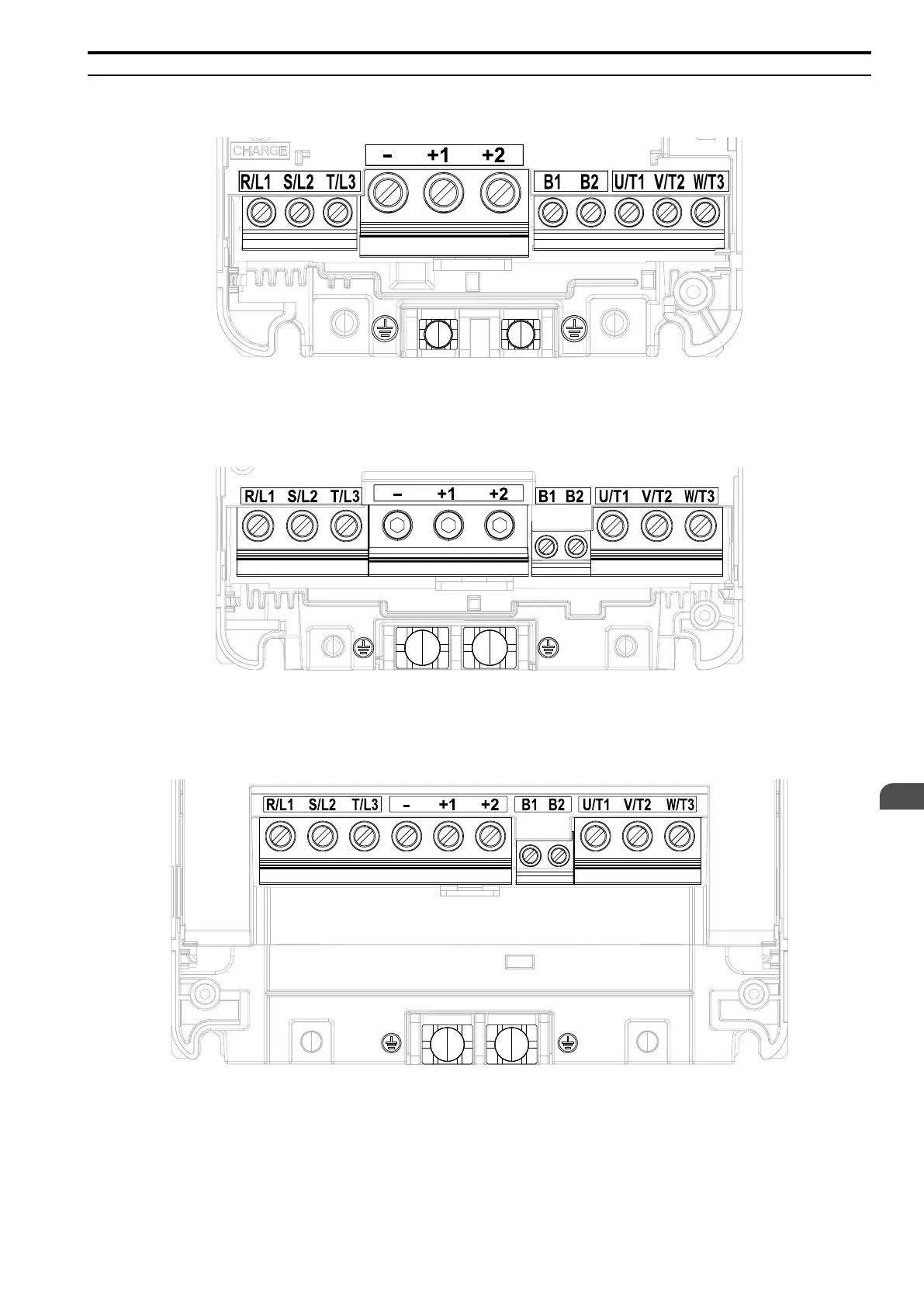

Figure
3.3
Configuration
of
Main
Circuit
T
erminal
Block
for
Drive
Models
4002
-
4023
Figure
3.4
Configuration
of
Main
Circuit
T
erminal
Block
for
Drive
Models
4031,
4038
Figure
3.5
Configuration
of
Main
Circuit
T
erminal
Block
for
Drive
Model
4044
70
72
