2.8 Change the Drive Enclosure Type
56 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual

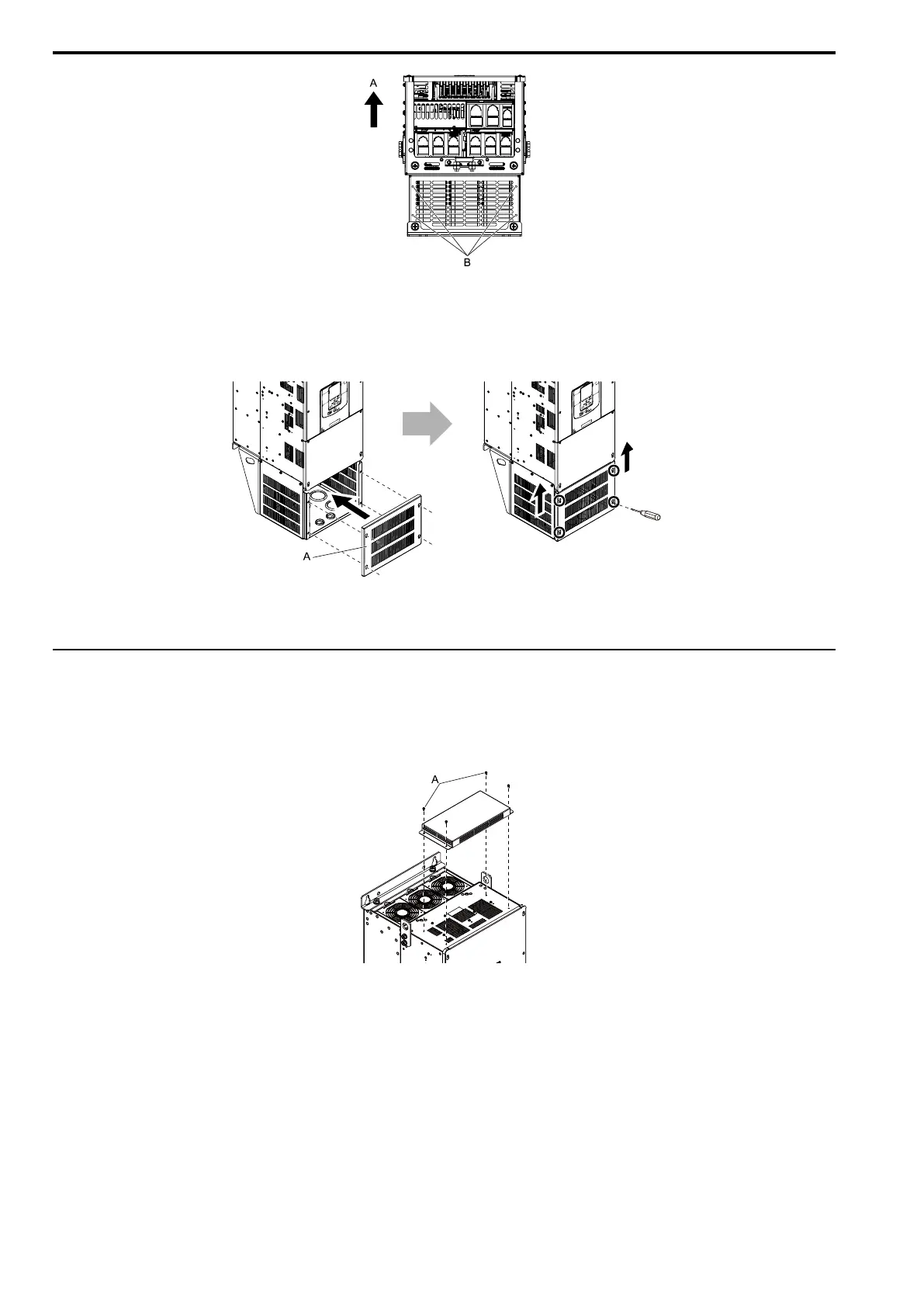

A - Front of drive B - Screw holes on bottom
Figure 2.59 Locations of Screw Holes on Bottom
3. Align the screw holes on conduit bracket 2 with the screw holes on conduit bracket 1.
Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.).
A - Conduit bracket 2
Figure 2.60 Attach Conduit Bracket 2
◆ Attach the Protective Cover of Drive Models 4371
■ Attach the Top Protective Cover
Align the screw holes of the top protective cover with the screw holes on the top of the drive.
Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.) to attach the cover.
Figure 2.61 Attach the Top Protective Cover
