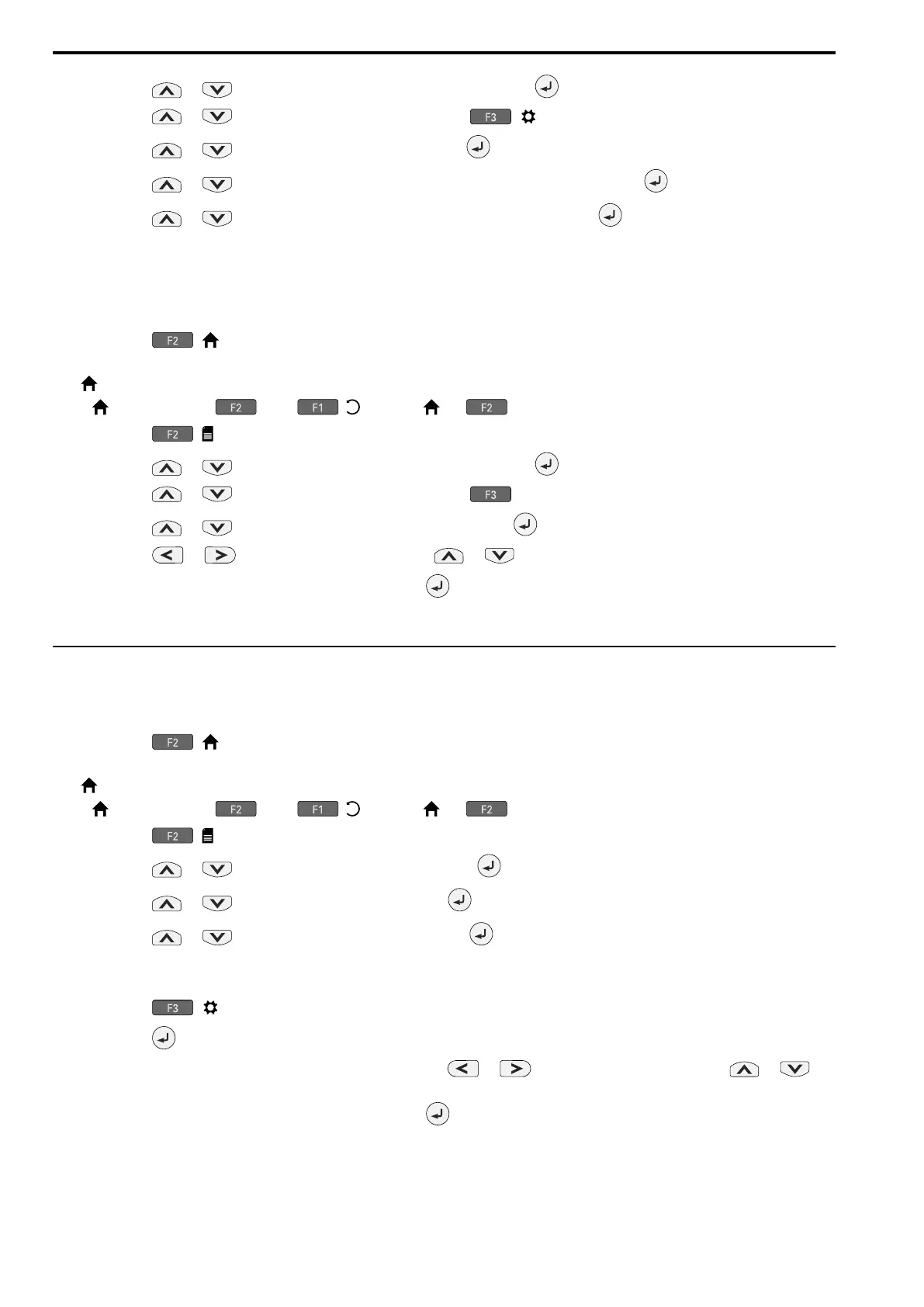

4.5 Keypad Operation
142 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Data Logger], then push ( ).
5. Push or to select [Log Monitor], then push .
6. Push or to select the save-destination monitor parameter, then push .
7. Push or to select the monitor number to be logged, then push .
The setting procedure is complete.
■ Set the Sampling Time
The procedure in this section shows how to set the sampling time for data logging.
1. Push ( ) to show the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Data Logger], then push (Setup).
5. Push or to select [Log Sample Lapse], then push .
6. Push or to select the digit, then push or to change the value.
7. When you are done changing the value, push .
The procedure to set the sampling time is complete.
◆ Set Backlight to Automatically Turn OFF
You can set the backlight of the keypad screen to automatically turn OFF after a set length of time since the last
key operation on the keypad. The procedure in this section shows how to turn ON and turn OFF the backlight.
1. Push ( ) to show the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Configuration], then push .
4. Push or to select [Backlight], then push .
5. Push or to select [ON] or [OFF], then push .
• [ON]: Backlight is always ON
• [OFF]: Backlight turns OFF after set length of time.
6. Push ( ).
7. Push .
8. To adjust the time to turn off LCD backlight, push or to select the digit, then push or to
change the value.
9. When you are done changing the value, push .
The procedure to set the backlight to turn OFF automatically is complete.
