8.4 Replace a Cooling Fan and Circulation Fan
318 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
2. Pull the cooling fan straight up from the drive. Disconnect the power supply connector and remove the fan
from the drive.
A - Cooling Fan

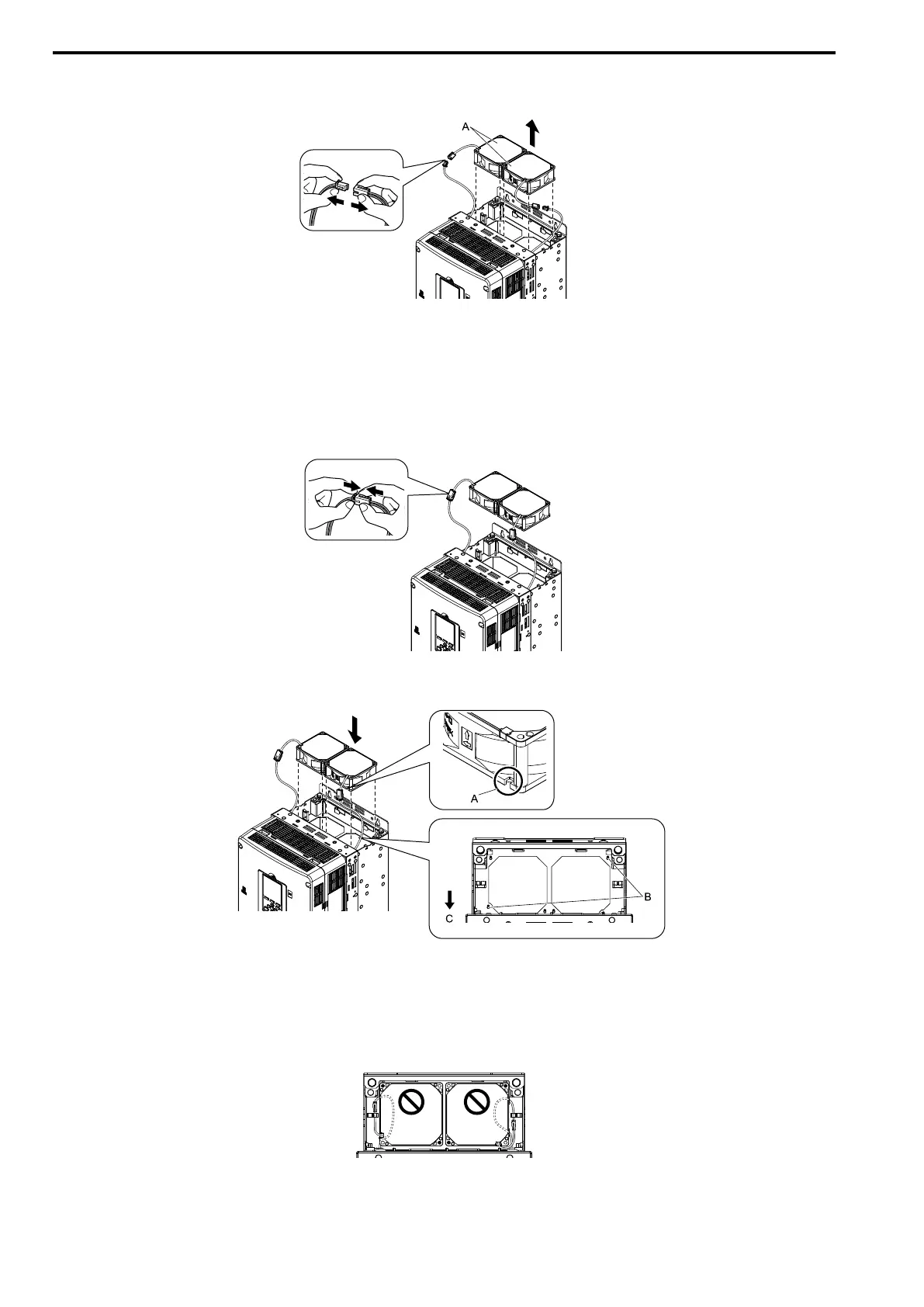

Figure 8.21 Remove the Cooling Fan
■ Install a Fan
Reverse the removal procedure to install a cooling fan.
1. Connect the drive and the fan connector.
Figure 8.22 Connect Connector
2. Align the notches on the fan with the pins on the drive and install the cooling fan in the drive.
A - Notch on fan
B - Alignment pins on drive
C - Front of drive
Figure 8.23 Install the Cooling Fan
Note:
When you install the cooling fan, make sure that you do not pinch cables between the cooling fan and the drive.
