2 Models and External Dimensions
2 - 100
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)

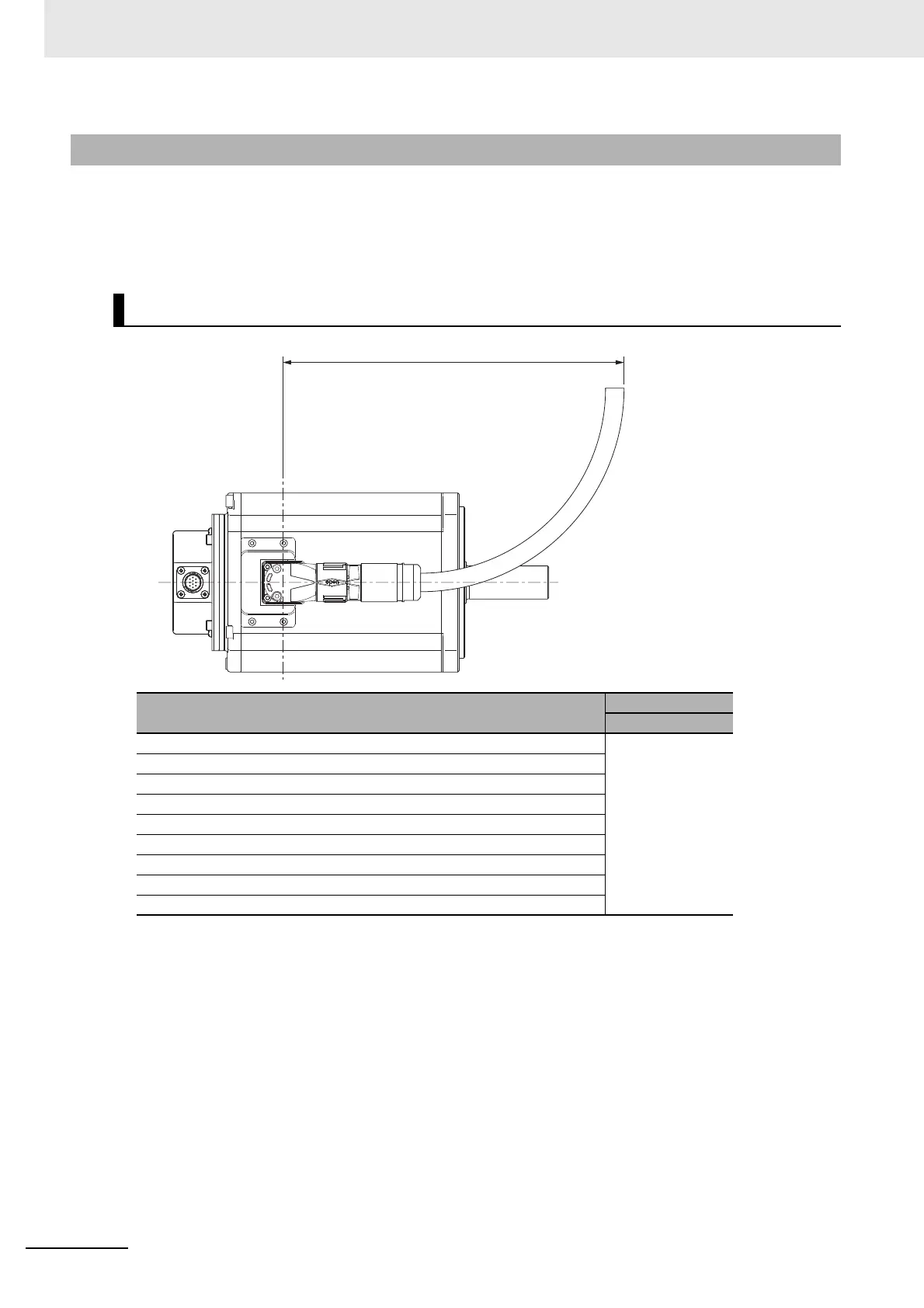

Cable wiring dimensions are shown below the table when you install a Servomotor for connector type
M23 and M40.
The dimensions from the rotation center of the connector to the cable surrounding are indicated as A
when you wire a cable with the minimum bending radius (ten times as outer dimension of sheath wire).
2-4-4 Cable Wiring Dimension for a Case of Motor Installing
Motor for Connector Type M23
Model
Dimension [mm]
A
R88M-1L4K030T(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2) 265
R88M-1L4K030C(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
R88M-1L4K730T(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
R88M-1L5K030C(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
R88M-1M4K015T(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
R88M-1M4K015C(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
R88M-1M5K015T(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
R88M-1M5K515C(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
R88M-1M7K515C(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2)
A
To Next Page
