4 Configuration and Wiring
4 - 40
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
This section describes the procedure for attaching a connector to a Servomotor. Use the following pro-
cedure to fit the connectors.

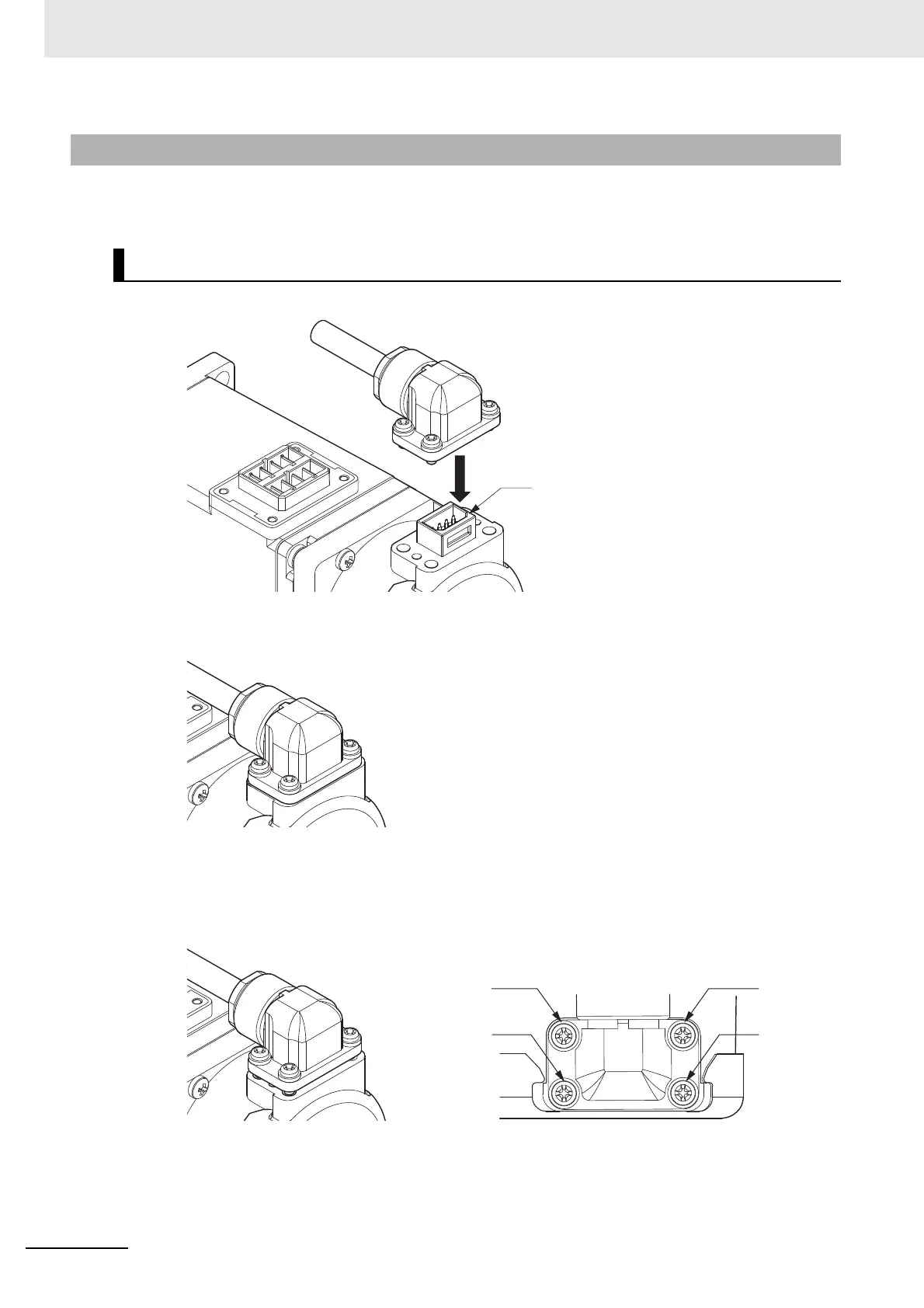

1 Align the connector's orientation with the key position, and fit the connector into place.
2 Tighten the screws to fix the connector after it is fitted.
Note Make sure that the connector is securely fitted into place without a gap or tilt.
Do not tighten the screws if the connector is not securely fitted into place. Doing so may result in a damage.
Tighten the four screws evenly.
The screw tightening torque is 0.2 N·m.
4-2-3 Connector Attachment Procedure
Servomotors with Flange Size of 80×80 or less
Example of a gap Example of screw tightening order
Example: tighten the screws in the order
of 1, 4, 3, and then 2.
2
13
4
