7.6.2 Basic circuit diagram

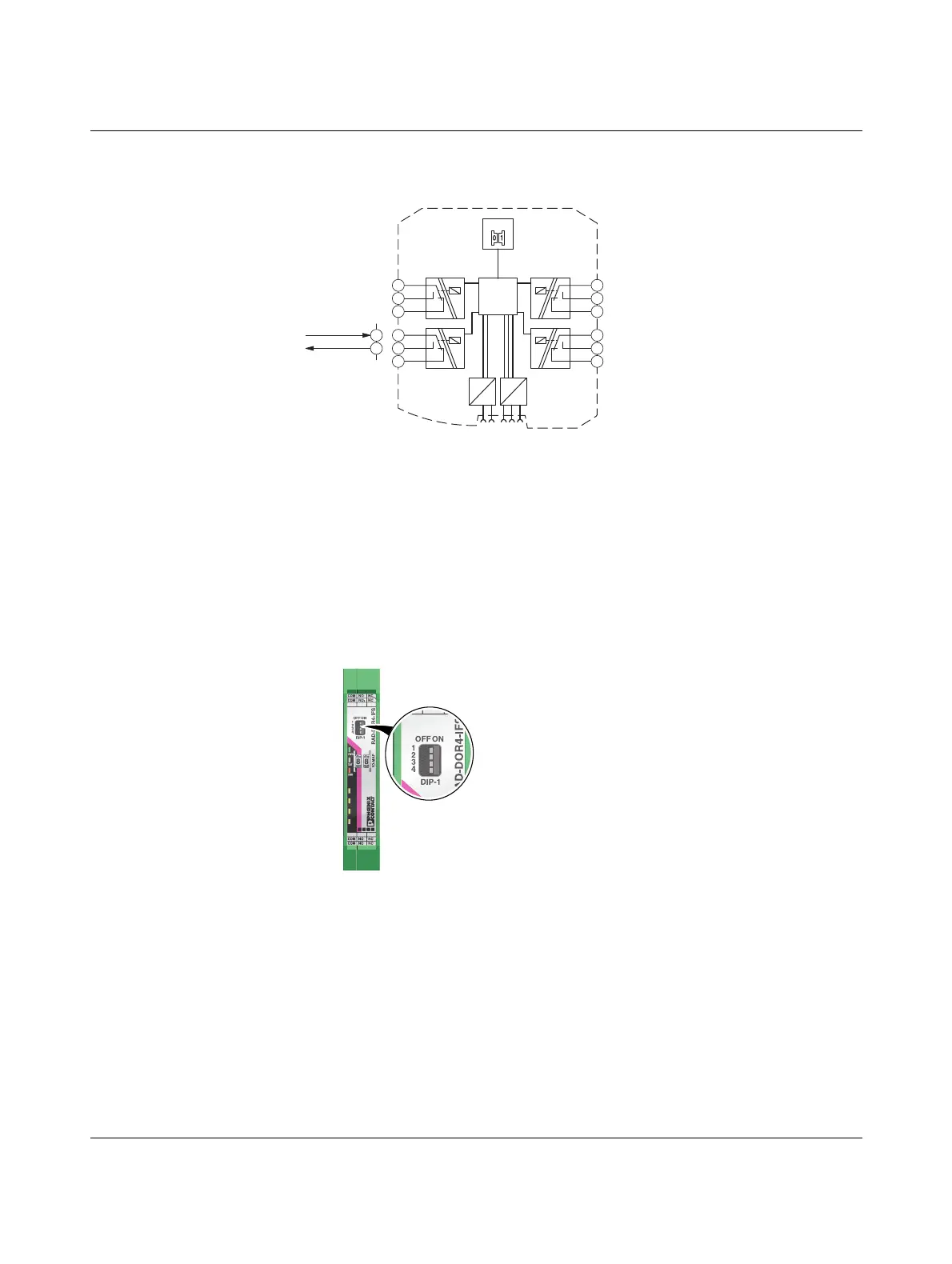

Figure 7-26 Basic circuit diagram for the RAD-DOR4-IFS
7.6.3 Setting the DIP switches
You can use the DIP switches on the front to set the behavior of the outputs in the event of
an error, e.g., interruption of the wireless connection. Any changes to the DIP switch set-
tings will be applied immediately.
– RESET = output value is set to 0
– HOLD = hold the last output value
Figure 7-27 DIP switches of the RAD-DOR4-IFS
5.1
5.2
5.3
2.1
2.2
2.3
6.1
6.2
6.3
1.1
1.2
1.3
DC
DC
IFS
IFS
µC
IO-MAP
COM
2
NO
2
NC
2
COM
1
NO
1
NC
1
COM
3
NO
3
NC
3
COM
4
NO
4
NC
4
24 V DC/250 V AC
1.1
1.2
OFF ON
DIP-1
1
2
3
4
COM 1 NO1 NC1
COM 2 NO2 NC2
COM 4 NO4 NC4
COM 3 NO3 NC3
PWR
DAT
ERR
1 1 1
2 2
4 4 4
3 3 3
DO1
DO2
DO3
DO4
