Brief description
105542_en_05 PHOENIX CONTACT 17 / 198

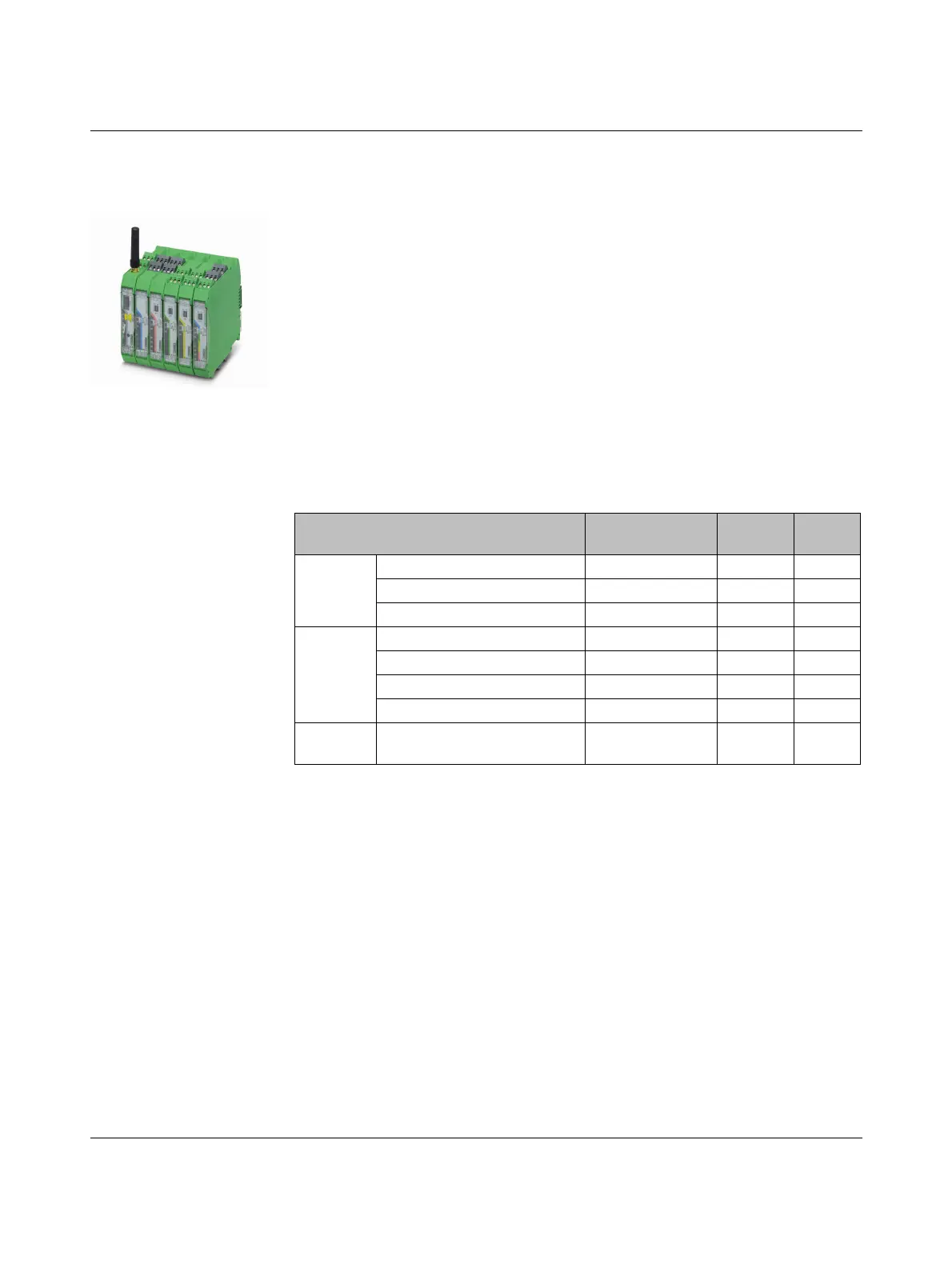

2.3 I/O extension modules
Various I/O extension modules are available for setting up the wireless system quickly and
easily. You can therefore adapt the number and type of signals to the respective application.
Features
– White thumbwheel for easy and tool-free assignment of device pairs (I/O mapping)
– Modular structure via DIN rail connector (hot-swap capability)
– Depending on the module: channel-to-channel electrical isolation
– Depending on the module: analog inputs or outputs (0/4 mA ... 20 mA / 16-bit resolution
/ <0.1% accuracy)
– Depending on the module: digital wide-range inputs or outputs (0 V ... 250 V AC/DC)
– DIP switches for HOLD/RESET behavior of outputs
– Loop power function for passive sensors
For a detailed description of the available I/O extension modules, refer to the pages listed
below:
Table 2-2 Overview of I/O extension modules
Module type Designation Order
No.
From
page
Analog 4 analog inputs RAD-AI4-IFS 2901537 87
4 Pt 100 inputs RAD-PT100-4-IFS 2904035 91
4 analog outputs RAD-AO4-IFS 2901538 98
Digital 4 digital inputs RAD-DI4-IFS 2901535 102
8 digital inputs or 2 pulse inputs RAD-DI8-IFS 2901539 106
4 digital relay outputs RAD-DOR4-IFS 2901536 111
8 digital transistor outputs RAD-DO8-IFS 2902811 106
Analog/
digital
1 analog input/output, 2 digital
wide-range inputs/outputs
RAD-DAIO6-IFS 2901533 121
