Brief description
105542_en_05 PHOENIX CONTACT 15 / 198
2 Brief description
Wireless communication is based on Trusted Wireless 2.0 technology. The wireless mod-
ules meet the high requirements for interference-free data transmission through, among
other things, the use of the frequency-hopping spread spectrum (FHSS) method and
128-bit data encryption (AES).

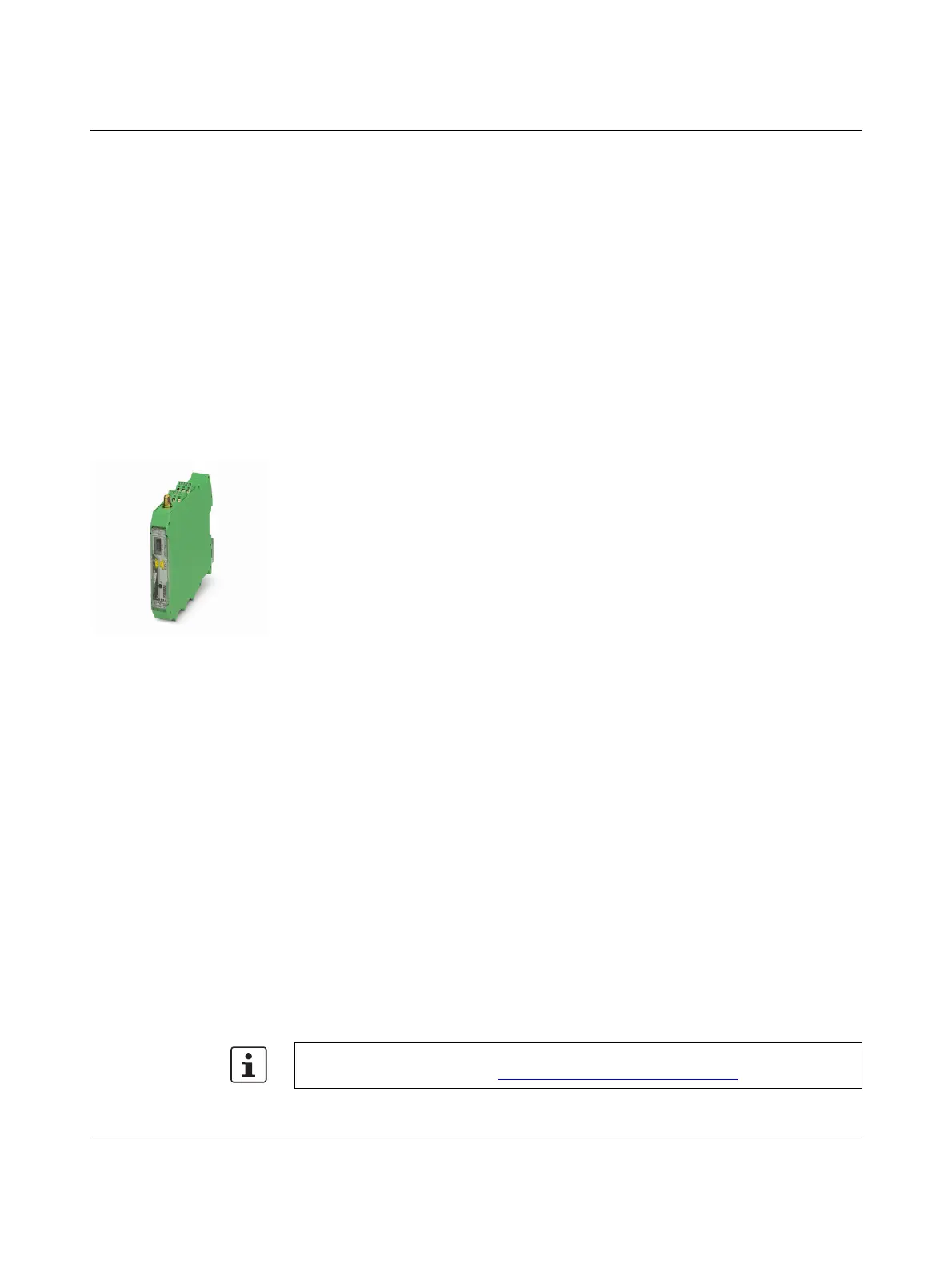

2.1 Wireless modules
In addition to an RS-232 and RS-485 2-wire interface, the wireless modules support the op-
tion of directly connecting up to 32 I/O extension modules in the station structure via the DIN
rail connector.
Addressing of the wireless modules and I/O mapping of the extension modules is carried
out quickly and easily by means of the thumbwheel on the front. The yellow thumbwheel on
the wireless module is used to set the RAD ID. The white thumbwheel on the extension
modules is used to set the I/O MAP address. Programming knowledge is not required. You
can easily start up the wireless network without the need for software.
In addition, the wireless network can be extended with up to 98 RS-485 stations
(RAD-RS485-IFS, Order No. 2702184). I/O data can therefore be distributed across vari-
ous media using the thumbwheel.
The PSI-CONF configuration and diagnostic software for special functions and diagnostic
options of the wireless module is available free of charge.
Features
– Flexible network applications:
I/O data, serial data, PLC / Modbus/RTU mode, dual mode
– Adjustable data rates for the wireless interface
– Easy point-to-point or network structures (star, mesh)
– Yellow thumbwheel for unique addressing of wireless modules in the wireless network
– Integrated RS-232 and RS-485 interfaces
– Can be extended with up to 32 I/O modules per station via DIN rail connector (hot-swap
capability)
– 128-bit AES data encryption and authentication
– Unique network addressing via plug-in configuration stick (RAD-CONF) for secure, par-
allel operation of multiple networks with different RF bands
– Data rates and ranges can be configured using the PSI-CONF software
– International approvals
– Installation in Ex Zone 2 (RAD-2400-IFS and RAD-868-IFS only)
–Can be combined with RS-485 stations
Wireless modules Frequency band
RAD-2400-IFS, RAD-2400-IFS-JP License-free 2.4 GHz ISM band
RAD-868-IFS 868 MHz ISM band, license-free in Europe
The RAD-RS485-IFS RS-485 front module is not described in this user manual.
For additional information, visit phoenixcontact.com/product/2702184.
