Phoenix Contact RAD-RS485-IFS User Manual

Typical combinations of antennas and adapter cables
105542_en_05 PHOENIX CONTACT 181 / 198
A 1.3 Antenna splitter
Directional antennas, 8 dBi, with 2-way outdoor antenna splitter

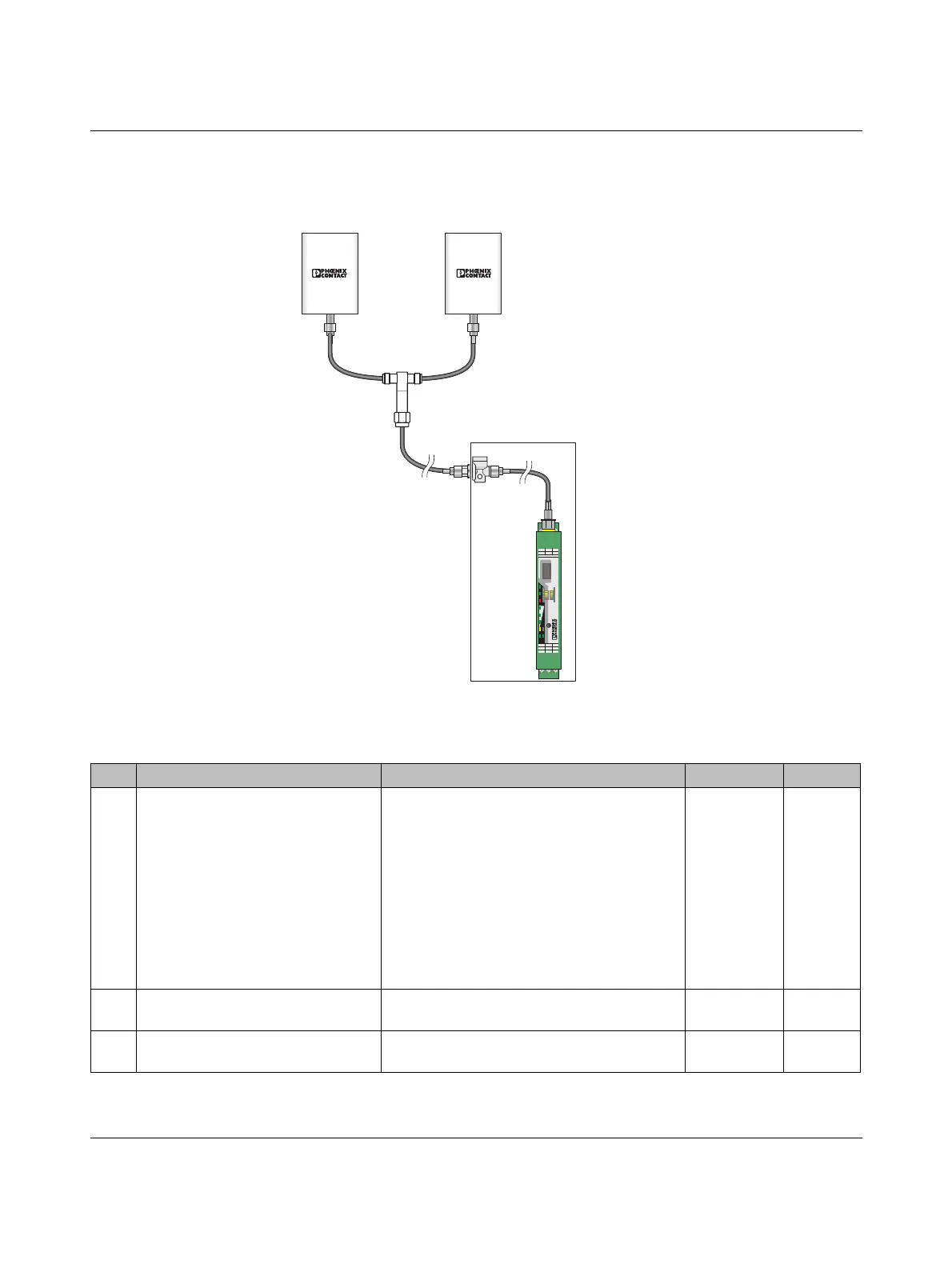

Figure A-10 Directional antennas, 8 dBi, with 2-way outdoor antenna splitter
Items 4 and 5 are optional.
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI- RSSI+
ANT
SPORT
0 1
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
11
2
2
3
4
5
6
Item Product Description Connection Order No.
1
ANT-DIR-2459-01 Directional antenna, 2.4 GHz/5 GHz, 9 dBi
gain, linear vertical polarization, h/v 75°/55°
opening angle for 2.4 GHz, IP67 protection
N (female) 2701186
Alternative:
ANT-DIR-868-01 Directional antenna, 868 MHz, 3.5 dBi, circular
polarized, IP67, including mounting bracket
and mast clips for 25 mm ... 85 mm diameter,
stainless steel, ATEX and IECEx approval
N (female) 2702137
Or other directional antennas from
Phoenix Contact
2
FL LCX PIG-EF142-N-N Antenna cable, 50 cm length, 50 Ω impedance N (male)
 N (male)
2700677
3
RAD-SPL-2-N/N 2-way distributor for antenna signals (antenna
splitter)
3 x N (male) 2702293
