Description of I/O extension modules
105542_en_05 PHOENIX CONTACT 113 / 198
7.6.4 Diagnostic LEDs
The RAD-DOR4-IFS I/O extension module uses a total of seven LEDs to indicate the oper-
ating states.

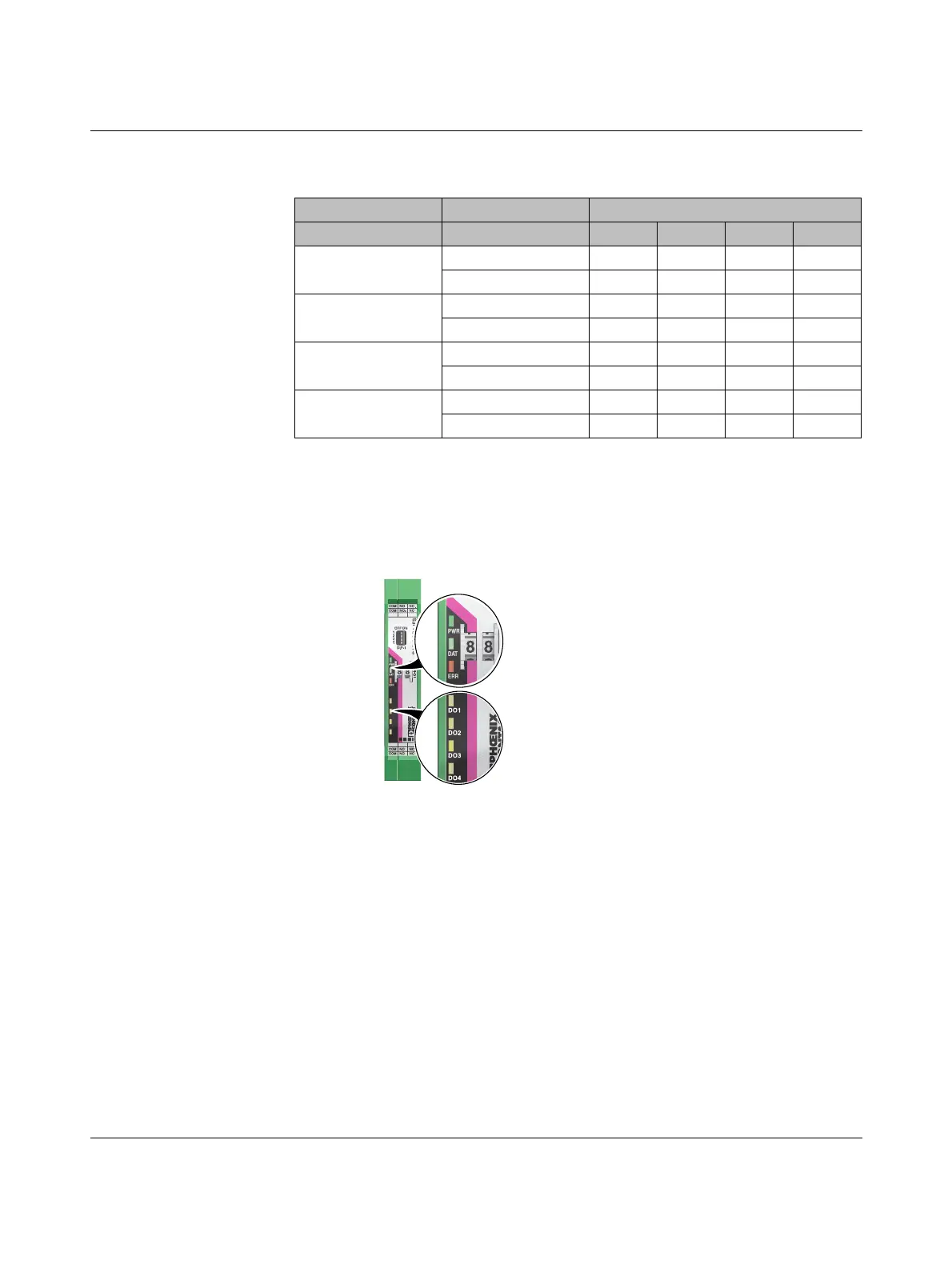

Figure 7-28 Diagnostic LEDs of the RAD-DOR4-IFS
PWR LED
The green PWR LED indicates the status of the supply voltage.
DAT LED
The green DAT LED indicates the status of bus communication.
Table 7-10 DIP switches of the RAD-DOR4-IFS
DIP switch
Setting Output signal 1 2 3 4
Digital OUT1
RESET OFF
HOLD ON
Digital OUT2
RESET OFF
HOLD ON
Digital OUT3
RESET OFF
HOLD ON
Digital OUT4
RESET OFF
HOLD ON
Off No supply voltage
On Supply voltage OK
Off No communication
Flashing Configuration and addressing mode
On Cyclic data communication
OFF ON
DIP-1
1
2
3
4
COM 1 NO1 NC1
COM 2 NO2 NC2
COM 4 NO4 NC4
COM 3 NO3 NC3
PWR
DAT
ERR
1 1 1
2 2
4 4 4
3 3 3
DO1
DO2
DO3
DO4
