CAUTION
THE TOOL MUST BE FIRMLY FIXED IN THE CLAMP AND
THE CENTRAL SCREW MUST BE BROUGHT INTO CON-
TACT WITH THE TOOL. EXCESSIVE TORQUE CAN CAUSE
THE SPECIFIC TOOL TO BUCKLE.

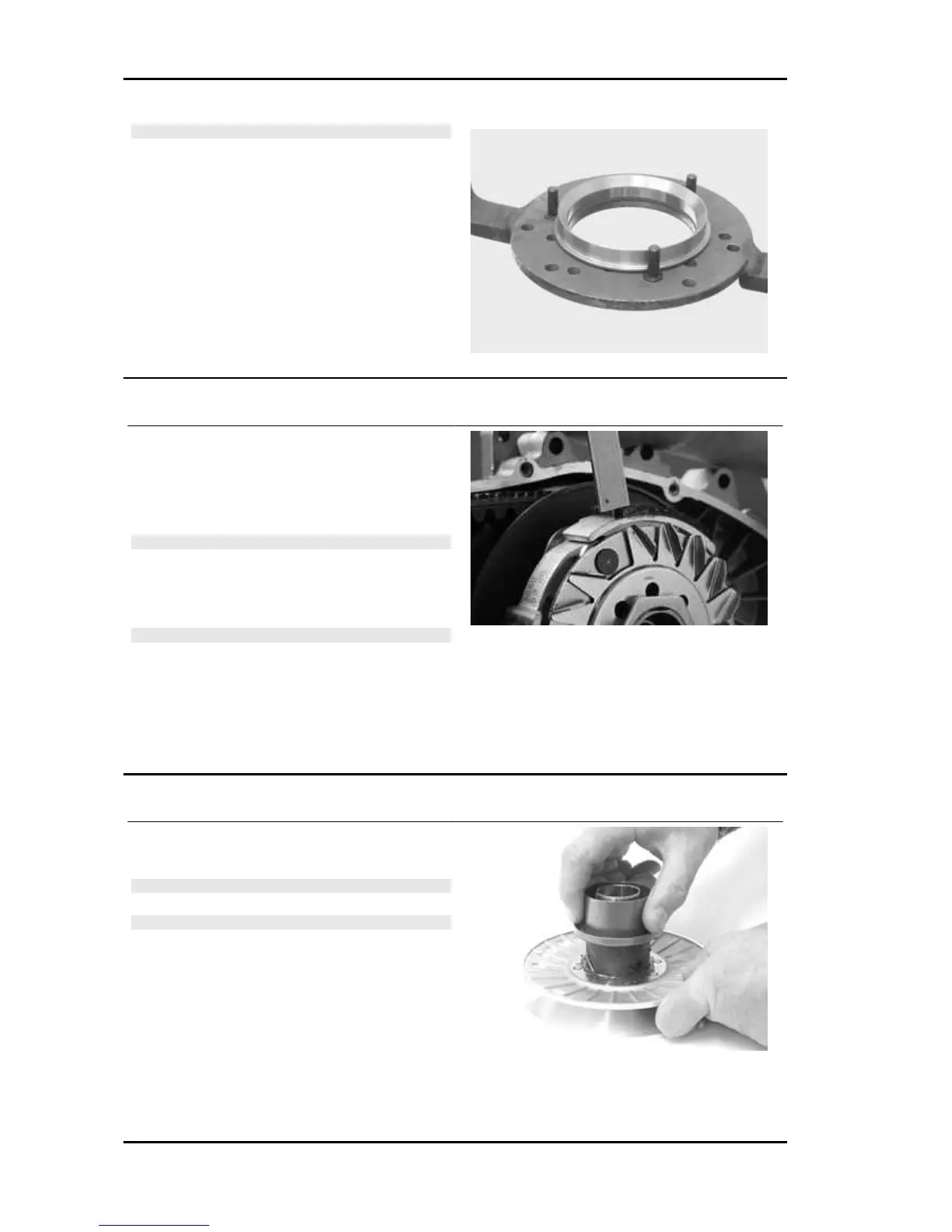

Specific tooling
020444Y009 46x55 Wrench
020444Y011 adapter ring
Inspecting the clutch
- Check the thickness of the clutch mass friction
material.
- The masses must not show traces of lubricants;
otherwise, check the driven pulley unit seals.
N.B.
UPON RUNNING-IN, THE MASSES MUST EXHIBIT A CEN-
TRAL CONTACT SURFACE AND MUST NOT BE DIFFER-
ENT FROM ONE ANOTHER.
VARIOUS CONDITIONS CAN CAUSE THE CLUTCH TO
TEAR.
CAUTION
DO NOT OPEN THE MASSES USING TOOLS TO PREVENT
A VARIATION IN THE RETURN SPRING LOAD.
Characteristic
Check minimum thickness
1 mm
Pin retaining collar
- Simultaneously turn and pull the collar manually
to remove it.
N.B.
USE TWO SCREWDRIVERS IF YOU HAVE DIFFICULTY.
N.B.
BE CAREFUL NOT TO PUSH THE SCREW DRIVERS IN
TOO FAR TO AVOID DAMAGE THAT COULD ENDANGER
THE O-RING SEAL.
Engine Carnaby 125 - 200
ENG - 106
