Pick-Up.

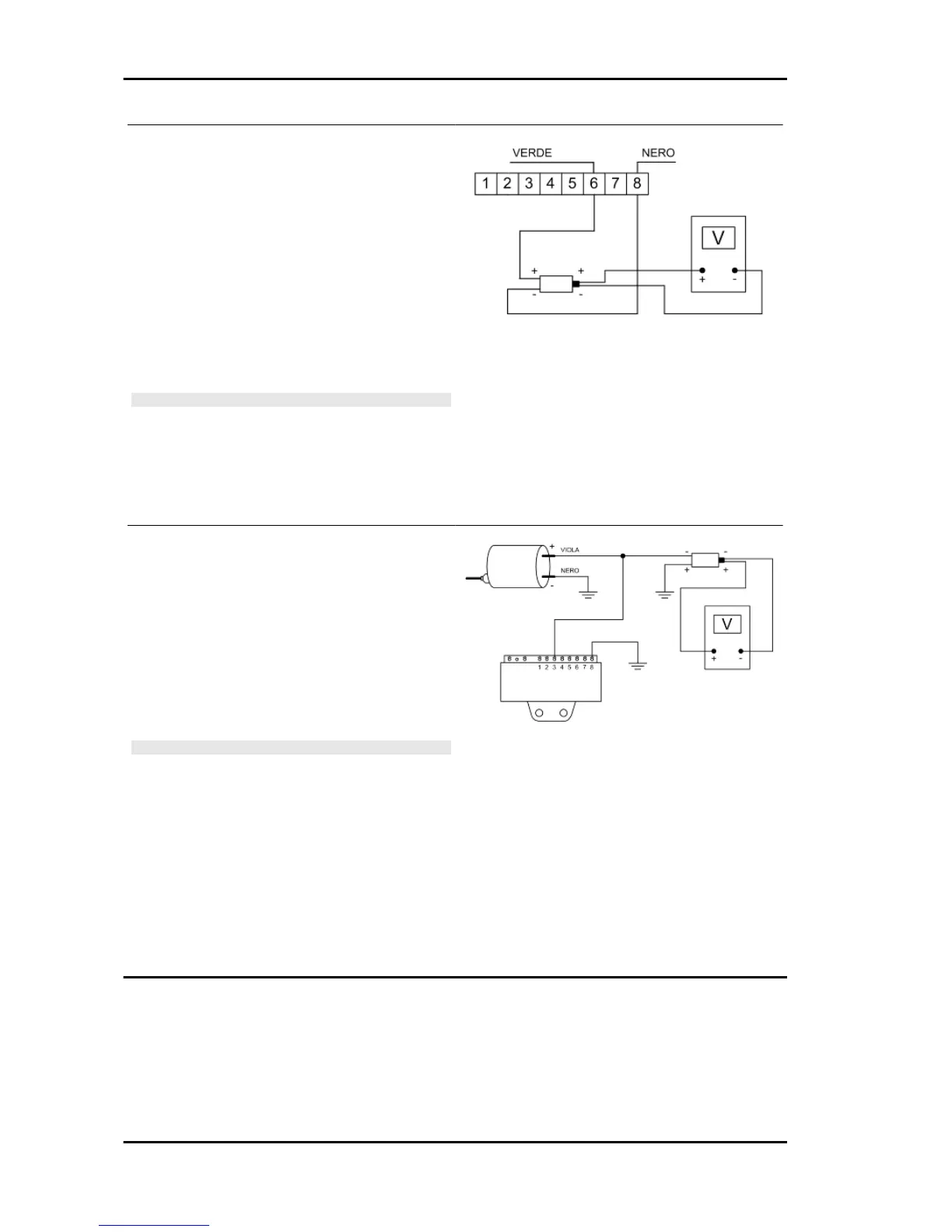

- Disconnect the control unit connector and con-
nect the positive terminal to connector No. 6 and
the negative terminal to connector No. 8 (see fig-
ure).
- The multimeter end of a scale should be 200V.
Use the start-up system to run the engine and
measure the voltage produced by the Pick-Up.
- Replace the Pick-Up if non-conforming values
are measured.
N.B.
THE MULTIMETER MUST BE SELECTED TO DETECT
CONTINUOUS VOLTAGE.
Electric characteristic
Voltage value
> 5 Volt
H.V. coil
With the control unit and HV coil connected, meas-
ure the voltage of the coil primary during the start-
up test with the voltage peak adaptor and con-
necting the positive terminal to the ground one and
the negative to the coil positive connector.
If non-conforming values are measured, replace
the control unit.
N.B.
THE PLASTIC CAP OF THE POSITIVE TERMINAL ON THE
HV COIL PRIMARY IS BLACK AND THE NEGATIVE TER-
MINAL ONE IS GREEN.
Specific tooling
020409Y Multimeter adaptor - Peak voltage de-
tection
Electric characteristic
High voltage coil voltage value
>200V
Electrical system Carnaby 125 - 200
ELE SYS - 84
