5. Seal ring
6. Piston
7. Gasket
8. Spring
9. Tank
CAUTION
ALL THE SEALS AND GASKETS MUST BE REPLACED EVERY TIME THE PUMP IS SERVICED.
Refitting
- Upon refitting, perform the operation but in reverse order.
- Tighten the hydraulic line to the prescribed torque and purge the system.
- When the operation is over, tighten the brake fluid bleed screw to the prescribed torque.
WARNING
BRAKE FLUID IS HYGROSCOPIC; THAT IS, IT ABSORBS MOISTURE FROM THE SURROUND-
ING AIR. IF THE LEVEL OF MOISTURE IN THE FLUID EXCEEDS A GIVEN VALUE, BRAKING WILL
BE INEFFICIENT. THEREFORE, ALWAYS USE FLUID FROM SEALED CONTAINERS. UNDER
NORMAL DRIVING AND CLIMATIC CONDITIONS YOU SHOULD CHANGE THIS FLUID EVERY
TWO YEARS. IF BRAKES ARE USED INTENSELY AND/OR IN HARSH CONDITIONS, CHANGE
THE FLUID MORE FREQUENTLY.
CAUTION
WHEN CARRYING OUT THE OPERATION, BRAKE FLUID MAY LEAK FROM BETWEEN THE
BLEED SCREW AND ITS SEAT ON THE CALLIPER. CAREFULLY DRY THE CALLIPER AND DE-
GREASE THE DISC SHOULD THERE BE BRAKE FLUID ON IT.
Locking torques (N*m)
Oil bleed screw 12 - 16 Hydraulic line fixing screw: 16 ÷ 20 Fixing screws for handlebar control
assembly U-bolts 7 ÷ 10
See also
Front

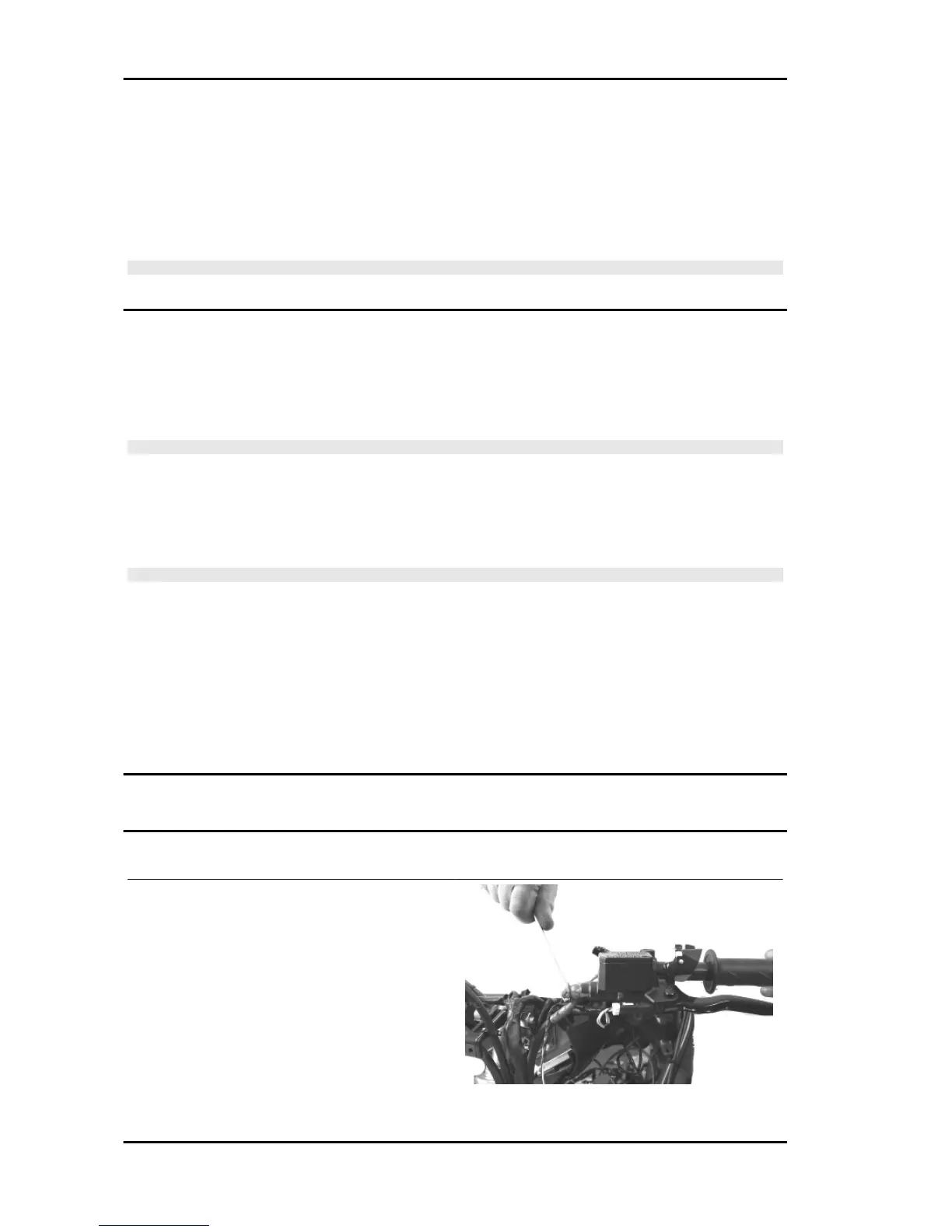

Rear brake pump - combined
Removal
- Remove the front handlebar cover.
- Remove the rear handlebar cover.
- Drain the braking system.
- Disconnect the brake oil pipe from the pump,
paying attention to a possible escape of remaining
oil.
- Remove the rear brake stop button from the lev-
er.
Braking system Carnaby 125 - 200
BRAK SYS - 230
