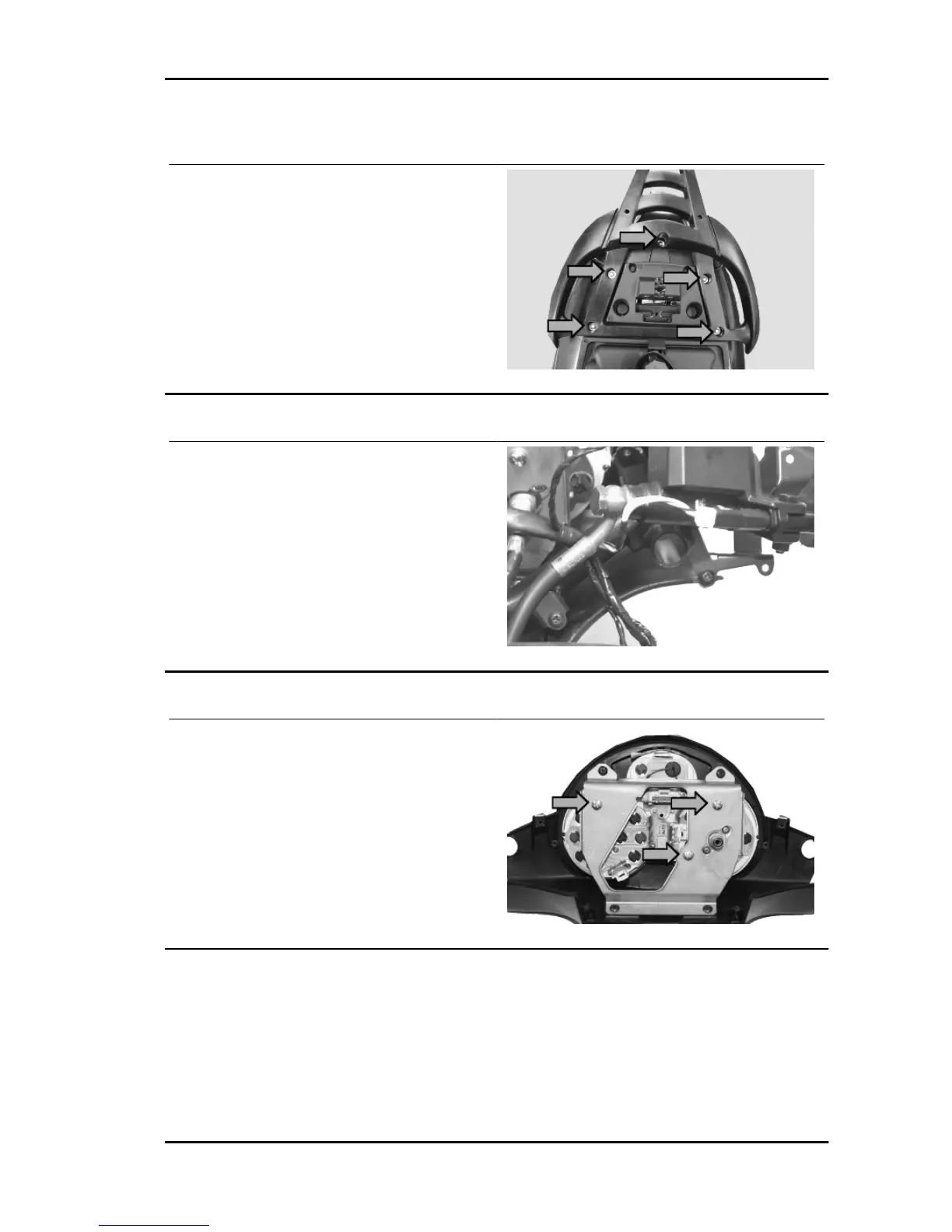

Rear rack
- Undo the five fixing screws.
Rear handlebar cover
- Remove the front handlebar cover.
- Remove the rear-view mirrors.
- Remove the four frame fixing screws from both
sides, as shown in the figure.
Instrument panel
- Remove the front handlebar cover.
- Disconnect the connectors.
- Remove the odometer cable.
- Remove the three screws shown in the figure.
- Remove the instrument panel
Carnaby 125 - 200 Chassis
CHAS - 241
