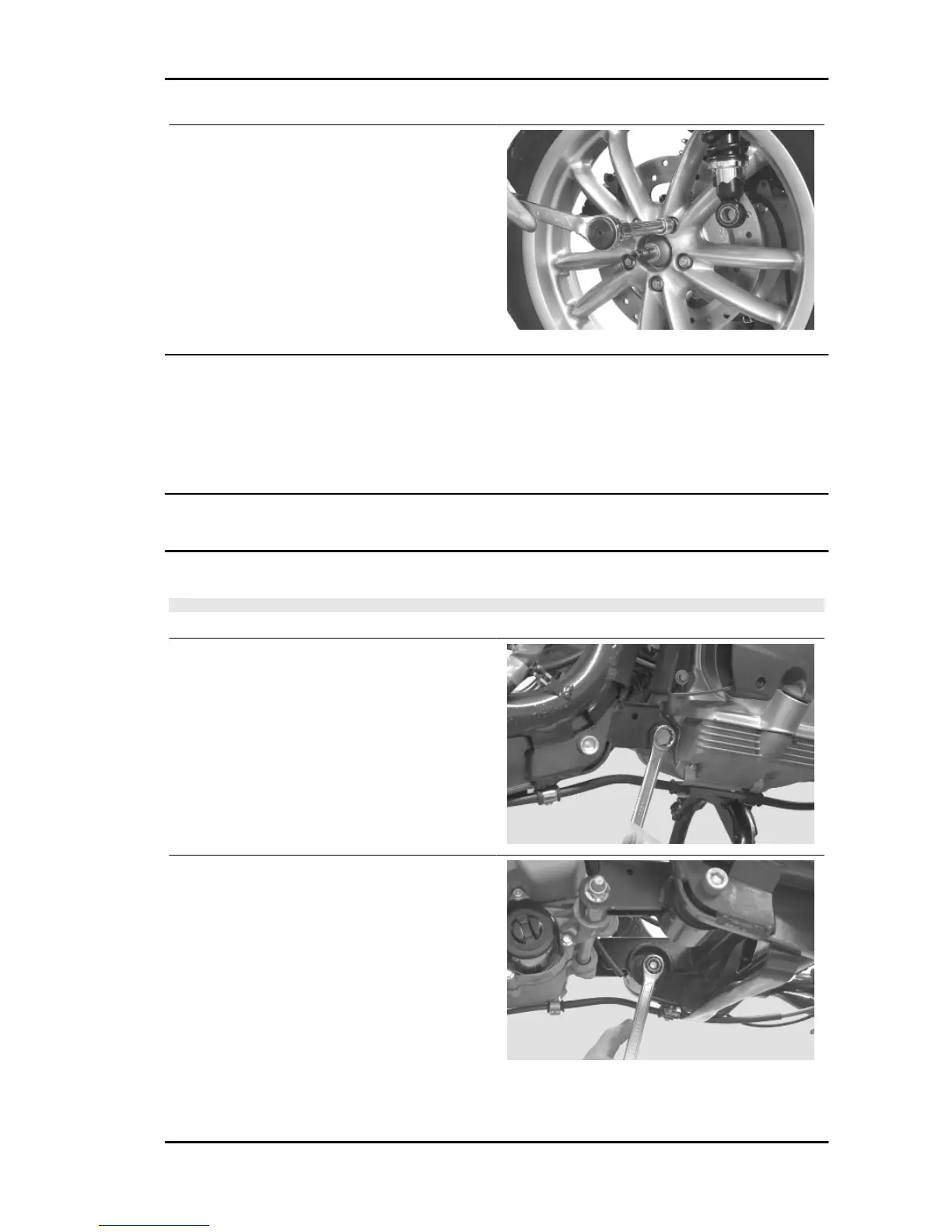

- Remove the five screws fixing the wheel to the
hub.
- Remove the wheel and collect the conical spacer.
Refitting the rear wheel
- Carry out the removal operations but in reverse order, observing the prescribed tightening torques.
Locking torques (N*m)
Fixing screw for wheel rim to hub 34 ÷ 38
Swing-arm
Removal
WARNING
IT IS NOT NECESSARY TO REMOVE THE SWINGING ARM TO SERVICE IT.
- Rest the scooter on its centre stand.
- Remove the side spoilers.
- Remove the footrest.
- Support the engine adequately.
- Unscrew the pin connecting the swinging arm to
the engine and collect the spacer.
- Operating from both sides of the scooter, loosen
the nut from the inside and collect the washer.
Carnaby 125 - 200 Suspensions
SUSP - 209
