* Either tool can be used.

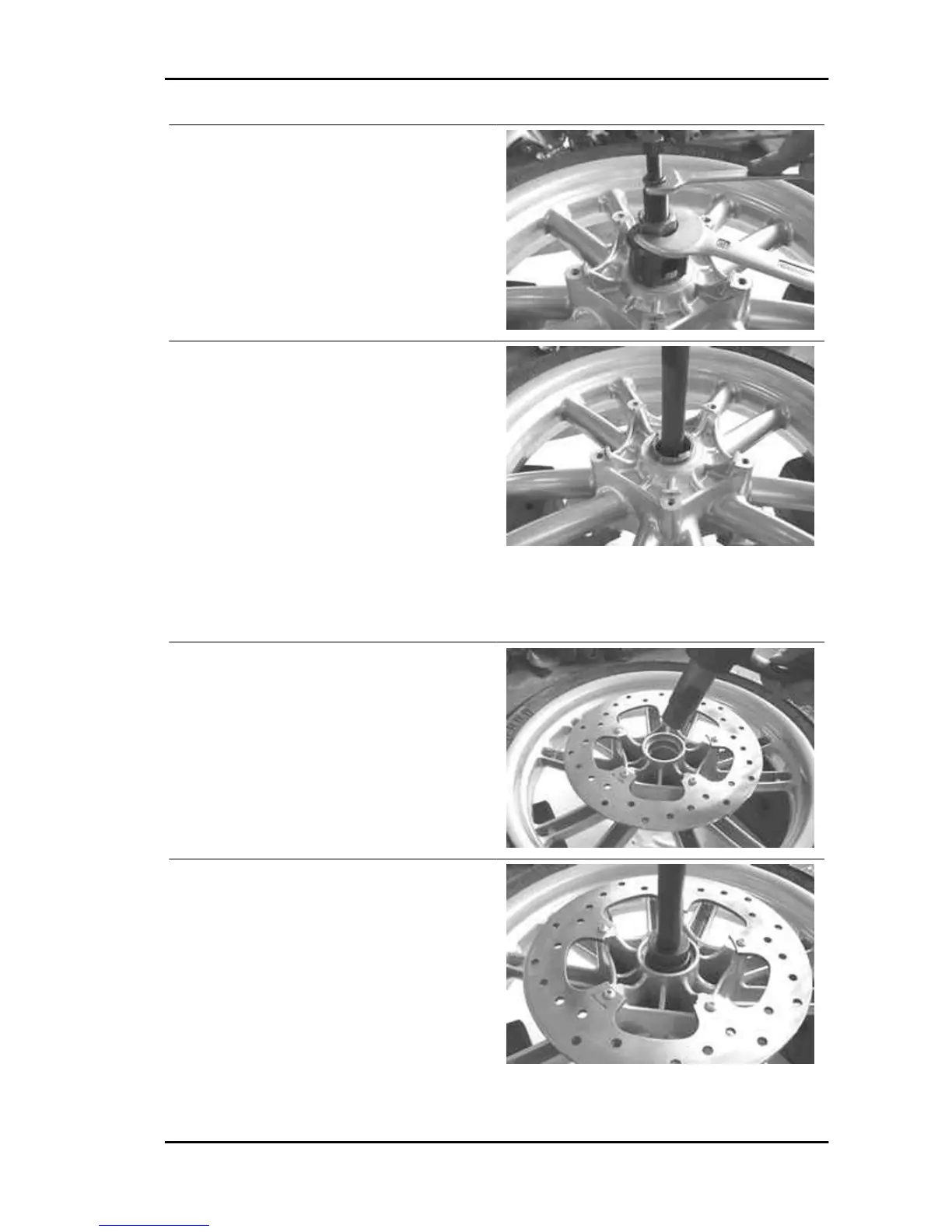

- Support the front wheel with two wooden shims
that make it possible to avoid scratching in the
case of contact with the rim.
- Insert the punch (consisting of adaptor handle,
15 mm adaptor and guide) from the odometer drive
side to permit the removal of the brake disc side
bearing and the spacer bushing.
Specific tooling
020376Y Adaptor handle
020456Y Ø 24 mm adaptor
020412Y 15 mm guide
- Heat the bearing seat on the side the brake disc
with the heat gun.
- Insert the bearing using the punch consisting of
adaptor handle, 42x47 mm adaptor and 15 mm
guide, and drive it up to the stop.
Carnaby 125 - 200 Suspensions
SUSP - 193
