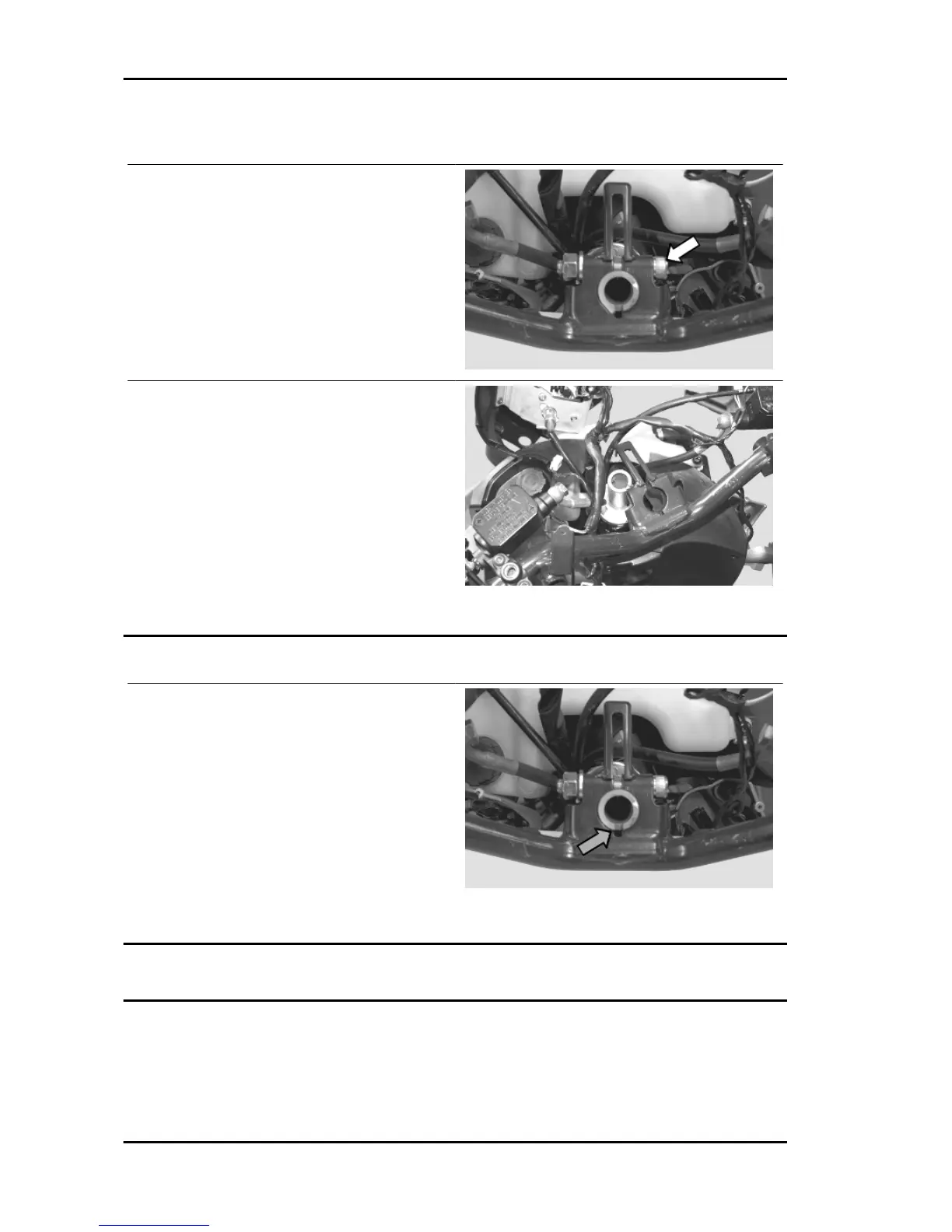

Removal
- Remove the front handlebar cover.
- Remove the rear handlebar cover.
- Remove the fixing pin.
- Remove the handlebar resting it on the shield
back plate.
If you want to remove the fork, proceed as follows:
- Remove the front handlebar cover.
- Remove the rear handlebar cover by disconnect-
ing the odometer cable and the instrument panel
connectors.
- Remove the brake pumps.
- Release the throttle control.
- Remove the fixing pin.
- Remove the handlebar.
Refitting
- Install the handlebars on the steering tube, pay-
ing attention to the centring, aligning the recess on
the handlebar with that on the steering tube as
shown in the figure.
- Tighten the handlebar fixing screw on the steer-
ing tube to the prescribed torque.
Locking torques (N*m)
Handlebar fixing screw (*) 45 ÷ 50
(*) Lubricate the nuts with engine oil before installation
Front fork
Suspensions Carnaby 125 - 200
SUSP - 196
