NEVER RUN THE ENGINE WITHOUT THE AIR FILTER, THIS WILL RESULT IN AN EXCESSIVE
CYLINDER AND PISTON WEAR AND ALSO IN CARBURETTOR DAMAGE.
CAUTION
WHEN TRAVELLING ON DUSTY ROADS, THE AIR FILTER MUST BE CLEANED MORE OFTEN
THAN SHOWN IN THE SCHEDULED MAINTENANCE CHART.
Recommended products
AGIP FILTER OIL Oil for air filter sponge
Mineral oil with specific additives for increased adhesiveness
Engine oil
Replacement

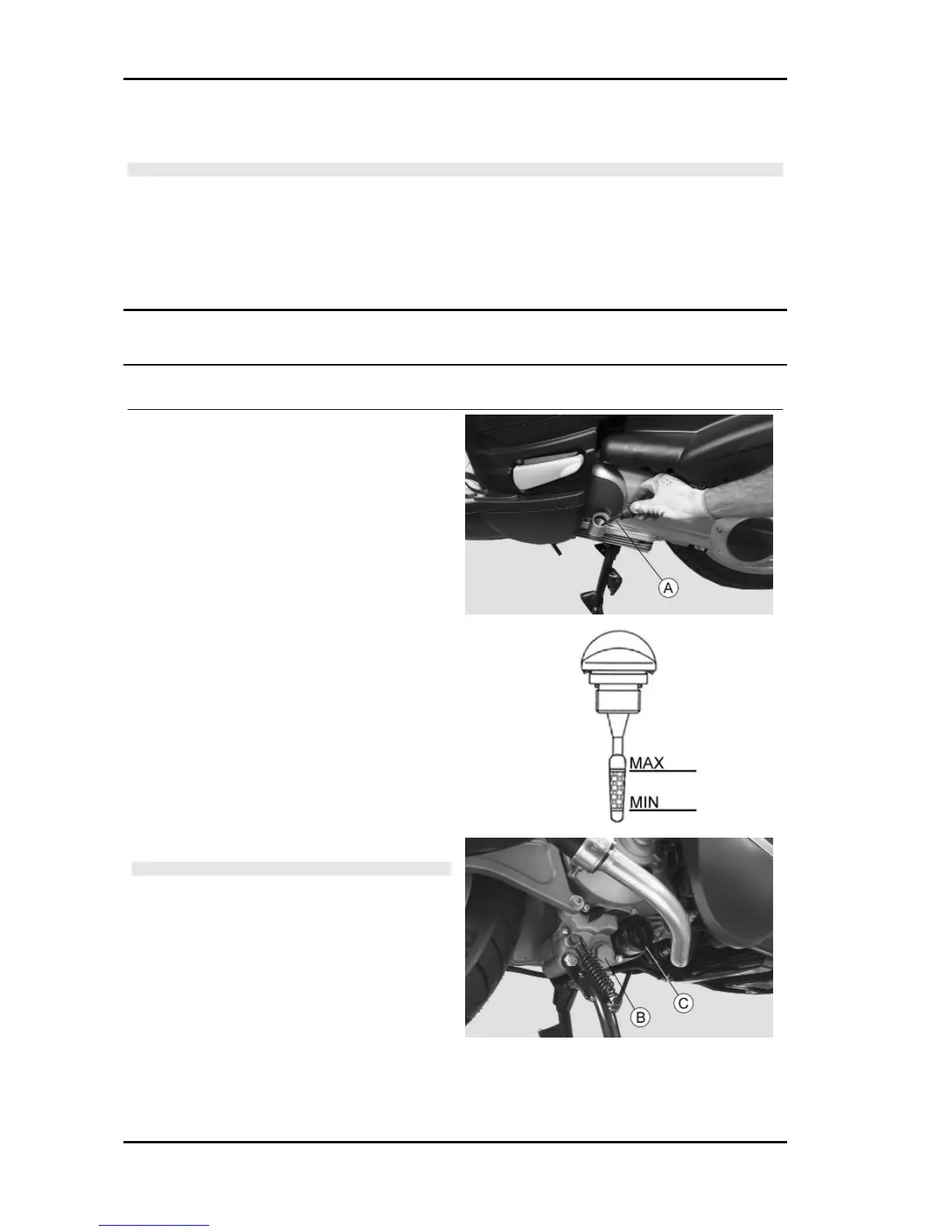

Change oil as indicated in the scheduled mainte-
nance table. The engine must be emptied by drain-
ing the oil through the drainage plug «B» of the
mesh pre-filter, flywheel side. Moreover, to facili-
tate oil drainage, remove the mesh pre-filter and
loosen the cap/dipstick «A». Once all the oil has
drained through the drainage hole, unscrew and
remove the oil cartridge filter «C ». Before filling,
carry out the operations described in the "Engine
oil filter" paragraph.
Since a certain quantity of oil still remains in the
circuit, fill adding approx. 600 ÷ 650 cm³ of oil
through the cap «A». Then start up the scooter,
leave it running for a few minutes and switch it off:
After about five minutes, check the level and, if
necessary, top-up but never exceeding the MAX
level reference mark.
N.B.
THE ENGINE MUST BE HOT WHEN THE OIL IS CHANGED.
Recommended products
AGIP CITY HI TEC 4T Engine oil
SAE 5W-40 Synthetic oil that exceed the require-
ments of API SL, ACEA A3, JASO MA specifica-
tions
Locking torques (N*m)
Engine oil drainage plug 24 ÷ 30
See also
Engine
Maintenance Carnaby 125 - 200
MAIN - 48
