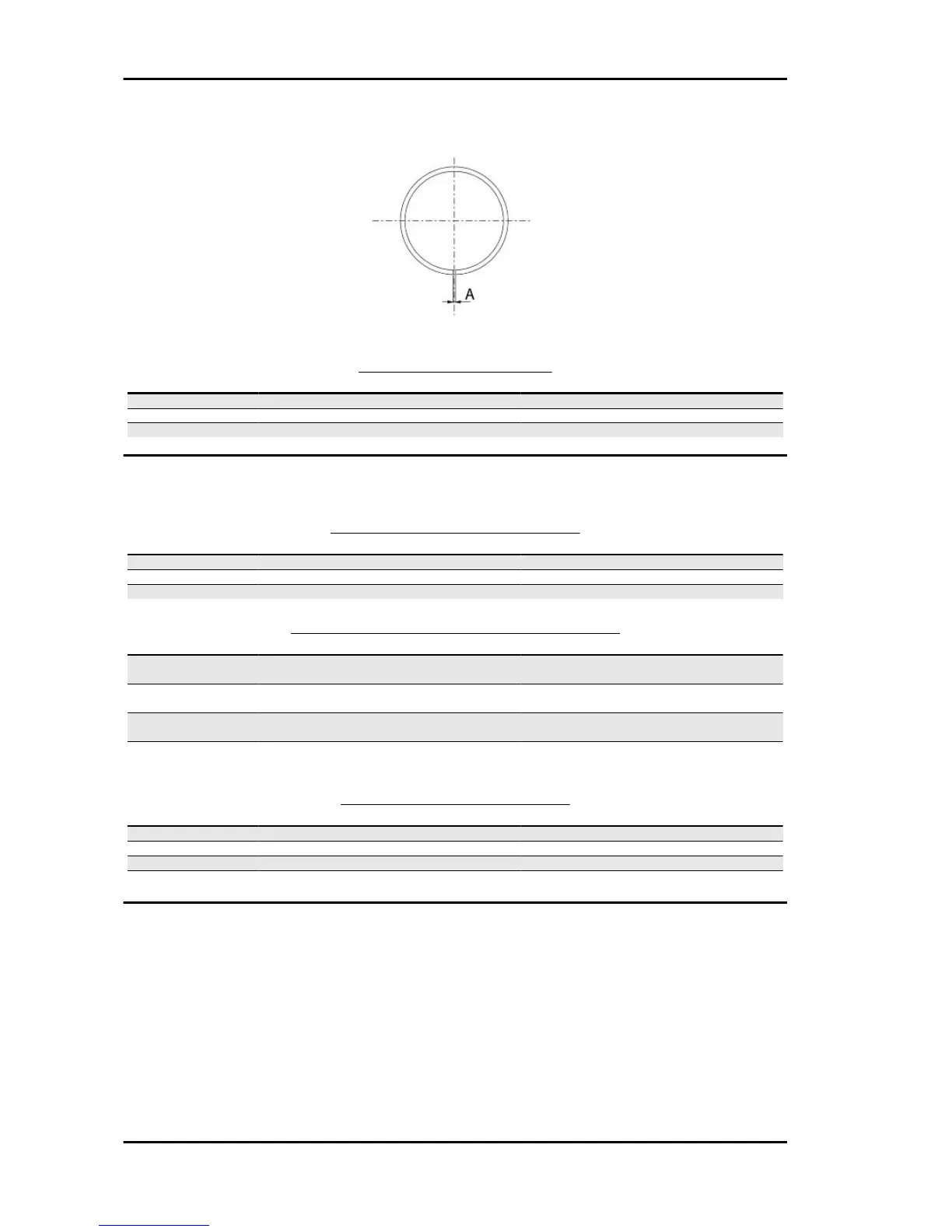

ENGINE SEALING RINGS
Name Description Dimensions Initials Quantity
Compression ring 72x1.5 A 0.15 ÷ 0.30
Oil scraper ring 72 x 1 A 0.10 ÷ 0.40
Oil scraper ring 72 x 2.5 A 0.20 ÷ 0.40
Crankcase - crankshaft - connecting rod
CRANKSHAFT HALF-BEARINGS
Name
Description Dimensions Initials Quantity
Crankshaft half-bearing Category B - blue 1.973 ÷ 1.976
Crankshaft half-bearing Type C - yellow 1.976 ÷ 1.979
Crankshaft half-bearing Category E - green 1.979 ÷ 1.982
CRANKCASE - CRANKSHAFT COUPLINGS
Name
Description Dimensions Initials Quantity
Crankshaft category 1 -
Crankcase category 1
E - E
Crankshaft category 1 -
Crankcase category 2
C - C
Crankshaft class 2 -
Crankcase class 1
C - C
Crankshaft category 2 -
Crankcase category 2
B - B
CRANKSHAFT - CRANKCASE
Name
Description Dimensions Initials Quantity
Crankshaft Category 1 28.998 ÷ 29.004
Crankshaft Class 2 29.004 ÷ 29.010
Crankcase Category 1 32.959 ÷ 32.965
Crankcase Class 2 32.953 ÷ 32.959
Characteristics Carnaby 125 - 200
CHAR - 20
