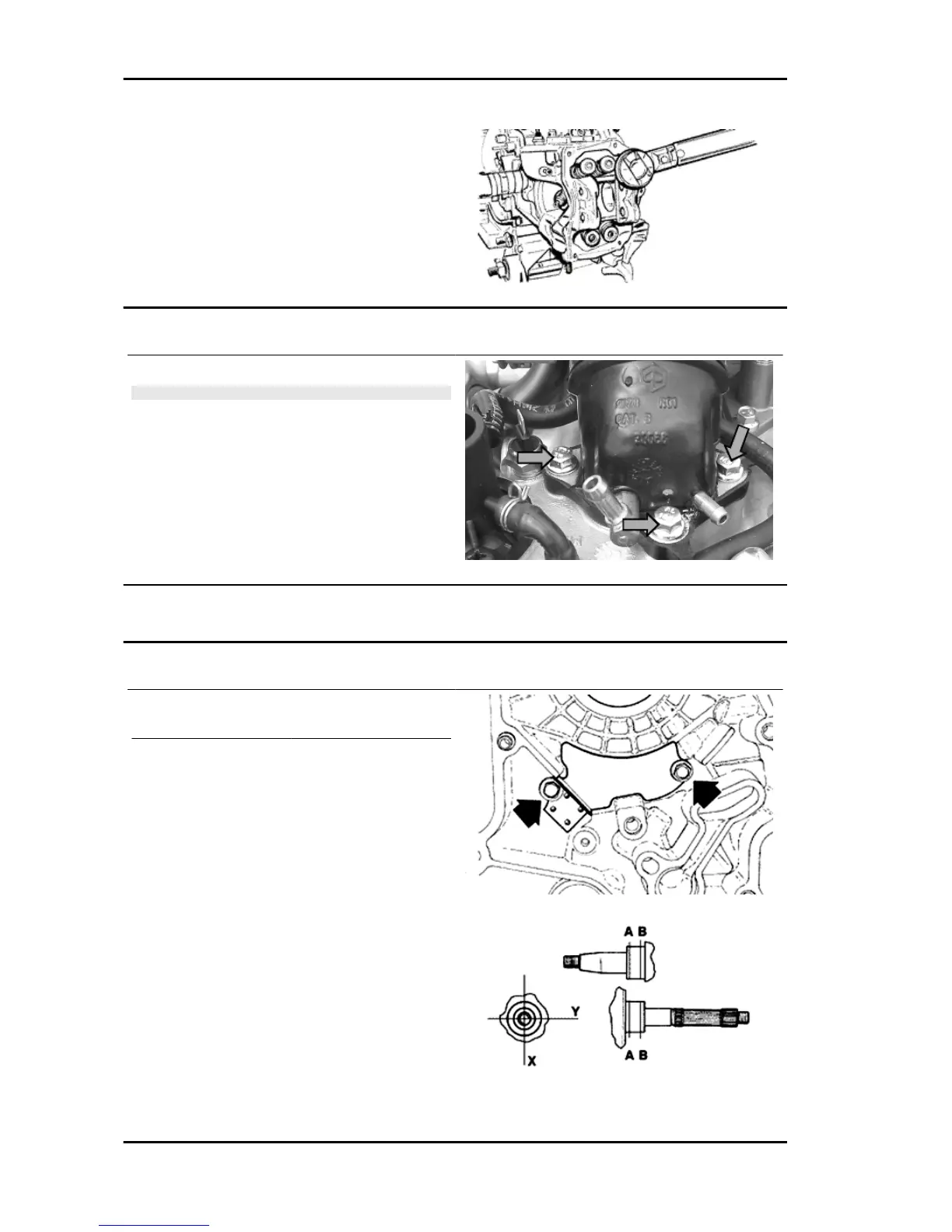

Refitting the intake manifold
Fit the intake manifold and do up the three screws.
N.B.
USE COMMERCIALLY AVAILABLE INSERTS AND INSERT
HOLDERS FOR THE SPECIAL SCREWS FOR 125 CM³
MODELS.
Crankcase - crankshaft
Splitting the crankcase halves
engine crankcase opening
ble>
- First remove the following
units:
transmission cover, driving
pulley, driven pulley and belt,
rear hub cover, gears, bear-
ings and oil seals as descri-
bed in the transmission
chapter.
-Remove the oil sump, the by-
pass, the chain compartment
cover and the oil pump as in
the lubrication chapter.
Engine Carnaby 125 - 200
ENG - 154
