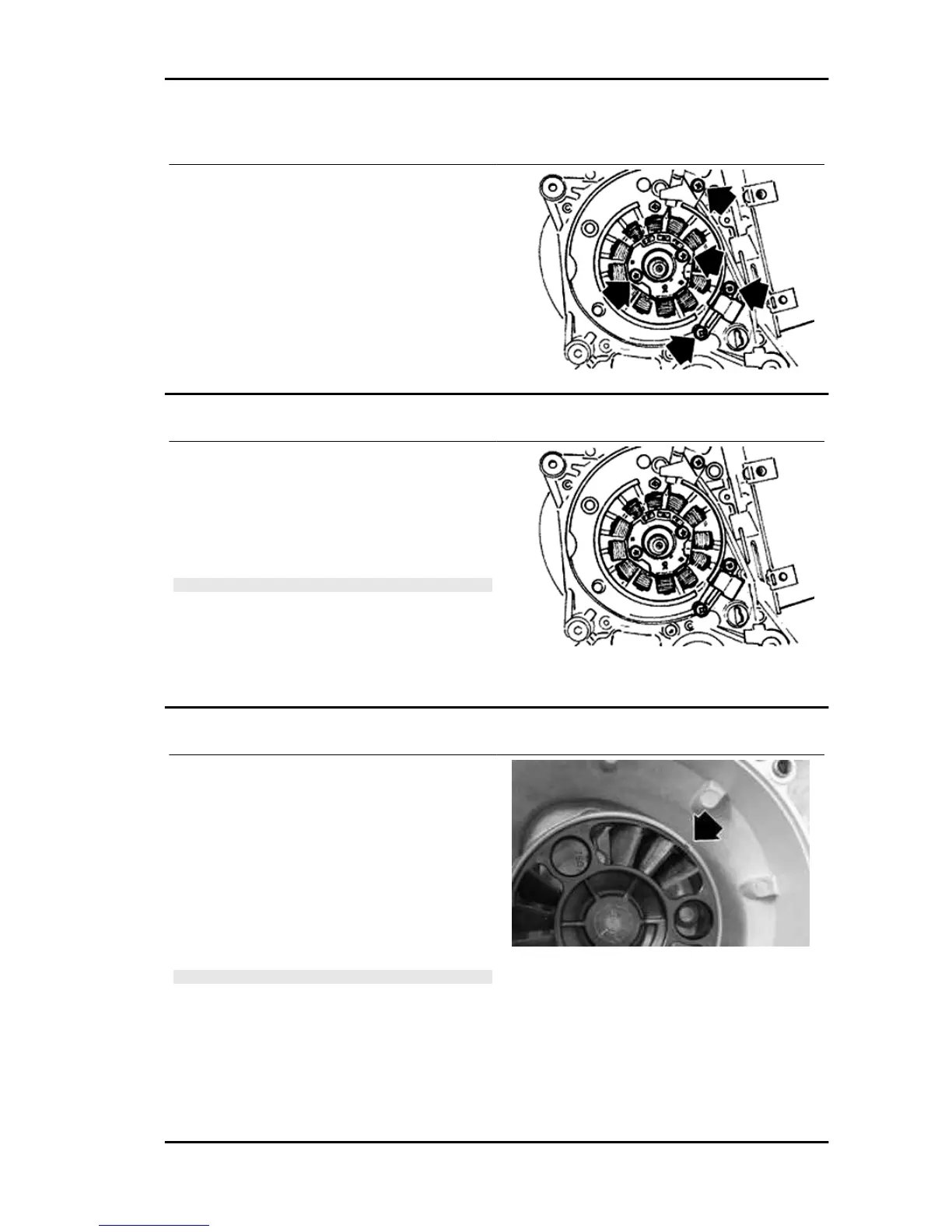

Removing the stator
- Remove the electric terminal of the minimum oil
pressure switch.
- Remove the two Pick-Up screws and the one for
the wiring harness bracket as well as the two stator
fixing screws shown in the figure.
- Remove the stator and its wiring.
Refitting the stator
- Refit the stator and flywheel carrying out the re-
moval procedure in reverse, tightening the retain-
ers to the specified torque.
- Place the cable harness as shown in the figure.
- Stator screws and Pick-Up
N.B.
THE PICK-UP WIRE SHOULD BE POSITIONED BETWEEN
THE UPPER SCREW AND THE REFERENCE PIN AS
SHOWN IN THE DETAIL DRAWING.
Locking torques (N*m)
Stator assembly screws (°) 3 ÷ 4
Refitting the flywheel cover
- Place the flywheel with the top dead centre mark
aligned with the crankcase.
- Place the flywheel cover by aligning the reference
marks of the drive and the crankcase cover.
- Reassemble the cover on the engine, placing the
three connectors in the drive for the water pump.
- Carry out the steps in the reverse order from the
dismantling procedure.
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL
CONNECTOR. MAKE SURE THE CENTRING DOWELS ARE
PRESENT.
Carnaby 125 - 200 Engine
ENG - 127
