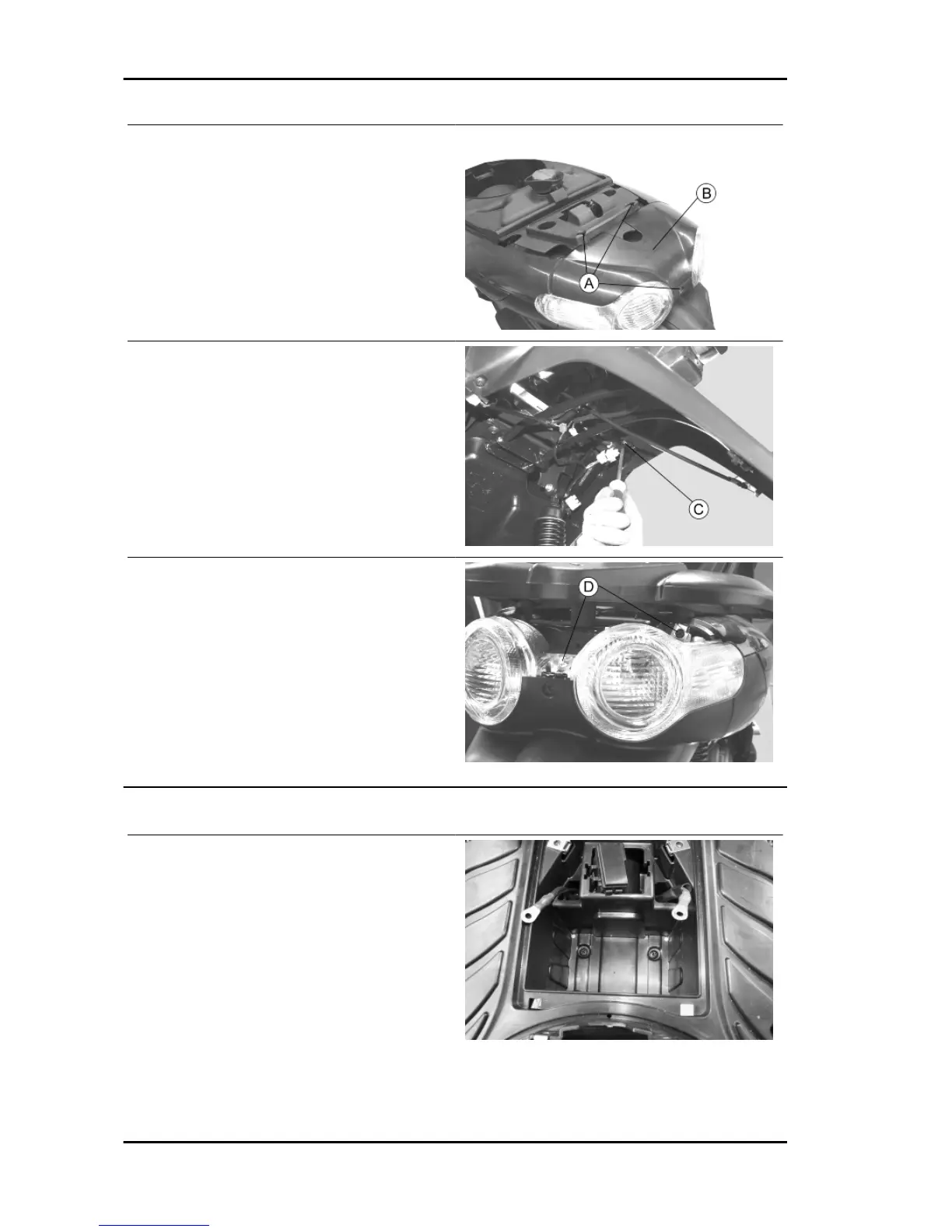

- Lift the saddle and remove the three screws
«A» fixing the tail light fairing B».
- Operating on both sides, undo the screw inside
the rear wheel housing «C» and disconnect the
connector.
- Undo the two screws «D».
Footrest
- Remove the side fairings.
- Remove the shield back plate.
- Remove the cover and take out the battery.
- Remove the fuse box by pulling it upwards.
- Remove the battery lower support.
- Undo the two screws connecting the battery to
the frame.
Chassis Carnaby 125 - 200
CHAS - 248
