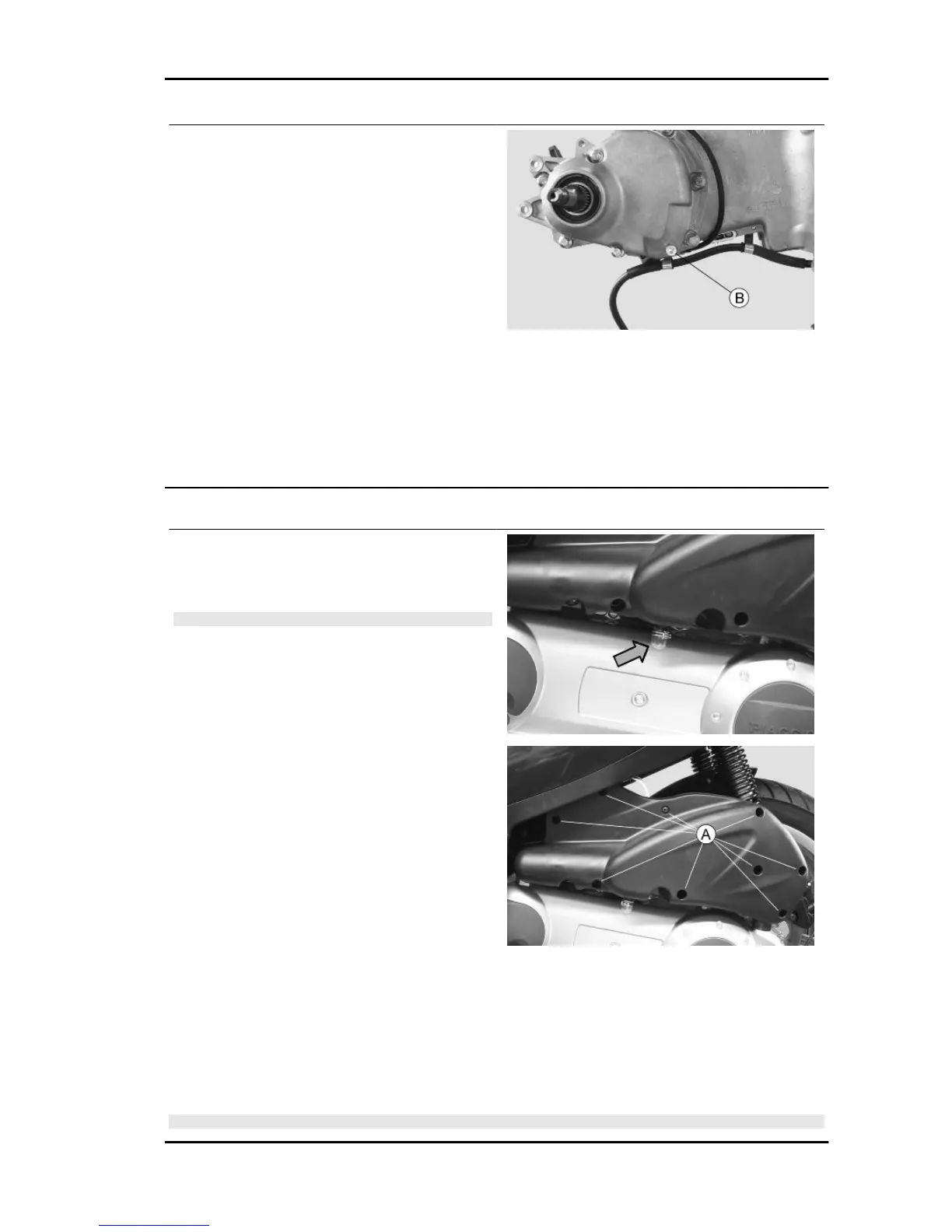

- Unscrew the oil drainage plug "B" and drain out
all the oil.
- Screw the drainage plug again to the prescribed
torque and refill the hub with the recommended oil.
Recommended products
AGIP ROTRA 80W-90 rear oil hub
SAE 80W/90 Oil that exceeds the requirements of
API GL3 specifications
Characteristic
Hub Oil Quantity
See the Technical Data Chapter
Locking torques (N*m)
Hub oil drainage screw 15 ÷ 17 Nm
Air filter
- Remove the air cleaner cover after undoing the
nine fixing screws «A».
- Take out the filtering element.
N.B.
CHECK THE AIR FILTER AND, IF NECESSARY, CLEAN IT
AS INDICATED IN THE SCHEDULED MAINTENANCE TA-
BLE. THE AIR JET MUST BE DIRECTED FROM THE INSIDE
TO THE OUTSIDE OF THE FILTER (I.E. OPPOSITE TO THE
SENSE THE AIR FLOWS AT REGULAR ENGINE RUN-
NING). UPON SERVICING, REMOVE THE LOCK AND THE
RUBBER HOOD UNDER THE FILTER HOUSING AS
SHOWN IN THE FIGURE AND DRAIN ALL POSSIBLE OIL
DEPOSITS.
Cleaning
- Wash with water and car shampoo.
- Dry with short blasts of compressed air and a clean cloth.
- Soak with a 50% mixture of gasoline and oil.
- Drip dry the filtering element and then squeeze it with your hands without wringing.
- Refit the filtering element.
CAUTION
Carnaby 125 - 200 Maintenance
MAIN - 47
