- The correct warm up time depends on the ambi-
ent temperature.
- If protrusion, resistance or timing values are dif-
ferent from the ones prescribed, replace the start-
er.
- Assemble the starter to the carburettor being
careful to position the O-Ring correctly, insert the
plate with the machined side contacting the starter,
tighten the fixing screws.

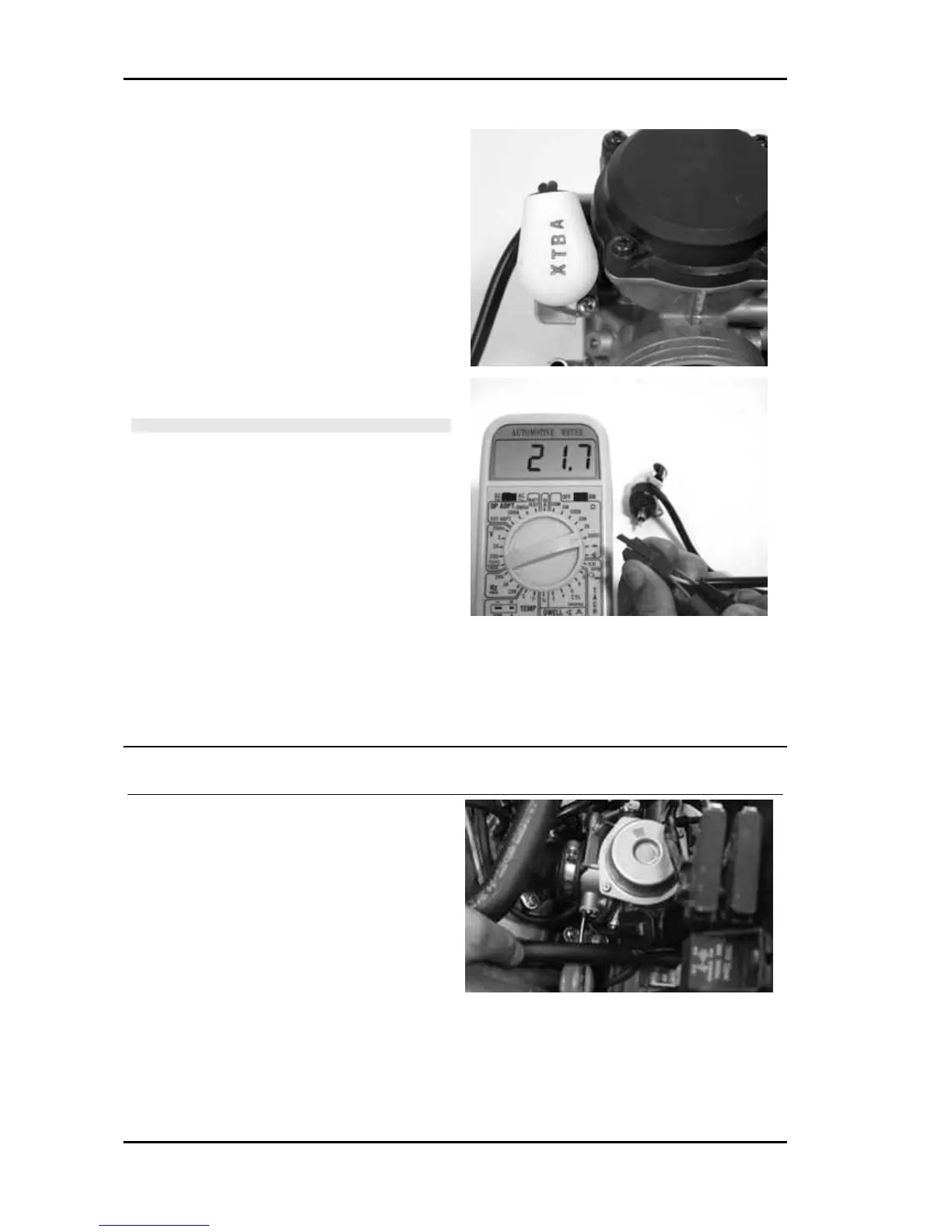

- Position the starter as shown in the figure.
- Assemble the protection casing.
N.B.
TO CARRY OUT THIS CHECK PAY SPECIAL ATTENTION
NOT TO GENERATE SHORT CIRCUITS USE A CABLE
SECTION WITH A TERMINAL SUITABLE TO BE CONNEC-
TED TO THE STARTER.
Characteristic
Check the automatic starter: Kehin: Protrusion
value
XX ÷ XX mm at approx. 20°C
Check the automatic starter: Kehin maximum
protrusion
XXX ÷ XXX mm
Check the automatic starter: Keihin maximum
time
5 min
Adjusting the idle
- The engine does not need frequent idle adjust-
ments, however it is very important to make any
adjustments fully respecting some standards.
- Before adjusting the carburettor make sure to re-
spect the lubrication requirements, valve clear-
ance, and complying timing, spark plug should be
in optimum conditions, air filter clean and sealed,
and the exhaust system tight.
- Warm up the engine by running it at least 5 mi-
nutes at approximately 50 kph.
