Raymarine e127 User Manual

4.17Fastheadingconnection
IfyouwishtouseMARPA(radartargetacquisition)
functionsonyourmultifunctiondisplayyouneed
either:
•Anautopilotconnectedtothemultifunctiondisplay
viaSeaTalk
ng
orNMEA0183.Thecompassis
connectedtothecoursecomputerandcalibrated
viathepilotcontrolhead;or:
•ARaymarineorthird-partyfastheadingsensor
connectedtothemultifunctiondisplayviaNMEA
0183.
Note:PleasecontactyourdealerorRaymarine
technicalsupportformoreinformation.
4.18SeaTalk
ng
connections
ThedisplaycanconnecttoaSeaT alk
ng
network.
ThedisplaycanuseSeaTalk
ng
tocommunicatewith:
•SeaTalk
ng
instruments
•SeaTalk
ng
autopilots
•SeaTalkequipmentviatheoptionalSeaT alkto
SeaTalk
ng
converter
•NMEA2000equipmentviaoptionalDeviceNet
adaptorcables

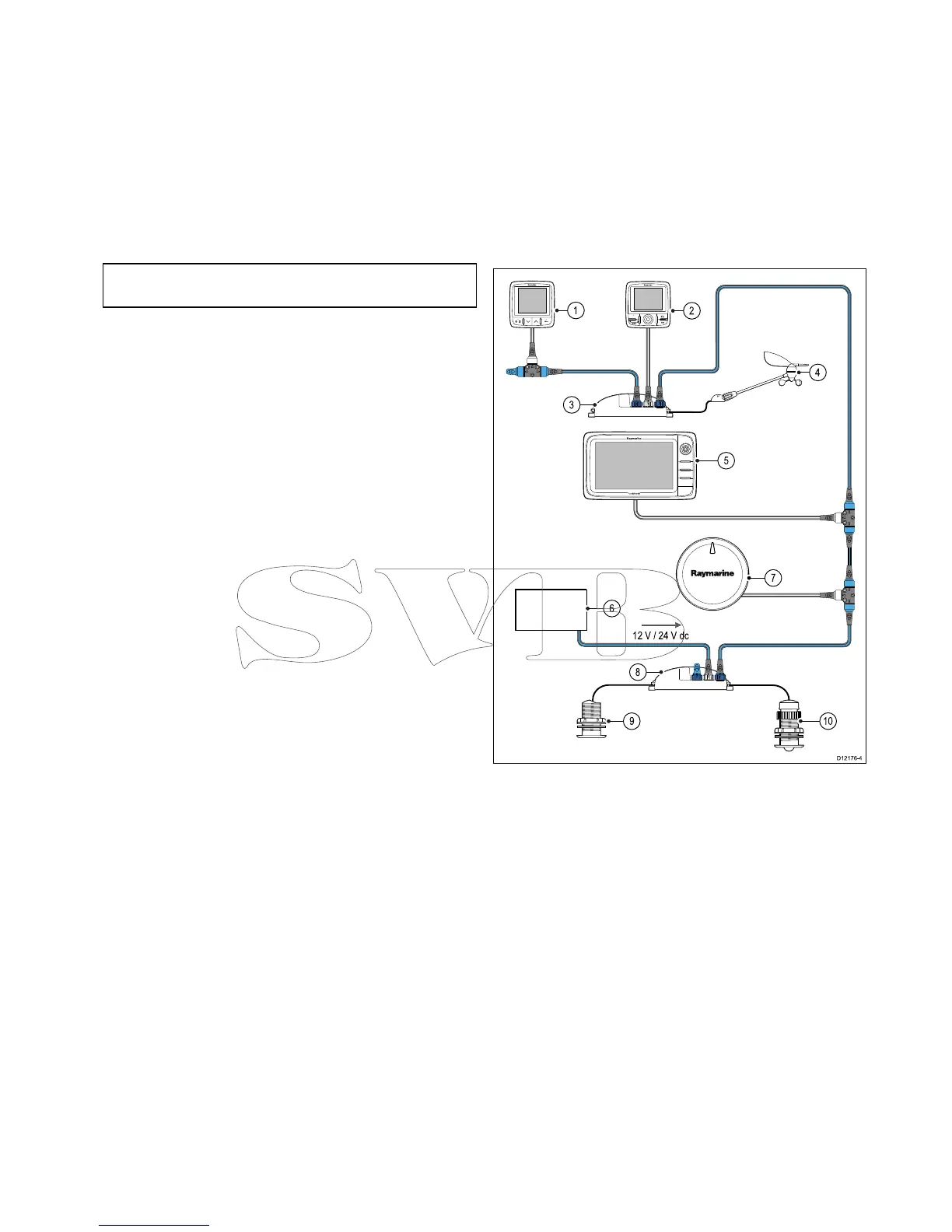

TypicalSeaTalk
ng
system
00
D12176-4
12 V / 24 V dc
1
2
6
9
10
8
5
7
3
4
1.SeaTalk
ng
instrument
2.SeaTalk
ng
pilotcontrolhead
3.iTC-5converter
4.Windtransducer
5.SeaTalk
ng
multifunctiondisplay
6.Powersupply
7.SeaTalk
ng
autopilot
8.iTC-5converter
9.Depthtransducer
10.Speedtransducer
FordetailsofSeaTalk
ng
cablingpleasereferto
Chapter33Sparesandaccessories.
SeaTalk
ng
powerrequirements
TheSeaTalk
ng
busrequiresa12Vpowersupply.
Powermaybeprovidedfrom:
•Raymarineequipmentwitharegulated12Vpower
supply(forexample,aSmartPilotSPXcourse
computer);or:
Cablesandconnections69

Raymarine e127 Specifications

General

Display Size	12.1 inches
Display Resolution	1280 x 800 pixels
Touchscreen	Yes
Wi-Fi	Yes
Bluetooth	No
Chartplotter	Yes
Radar Compatible	Yes
AIS Compatible	Yes
Display Type	LCD
Waterproof Rating	IPX6
GPS	Yes
Networking	RayNet Ethernet
Sonar	Optional, requires external sonar module
Operating Voltage	12/24 V DC
Fishfinder	Yes, with optional sonar module
Cartography	Navionics, C-MAP
Power Supply	12/24V DC
