Specifications for Ports

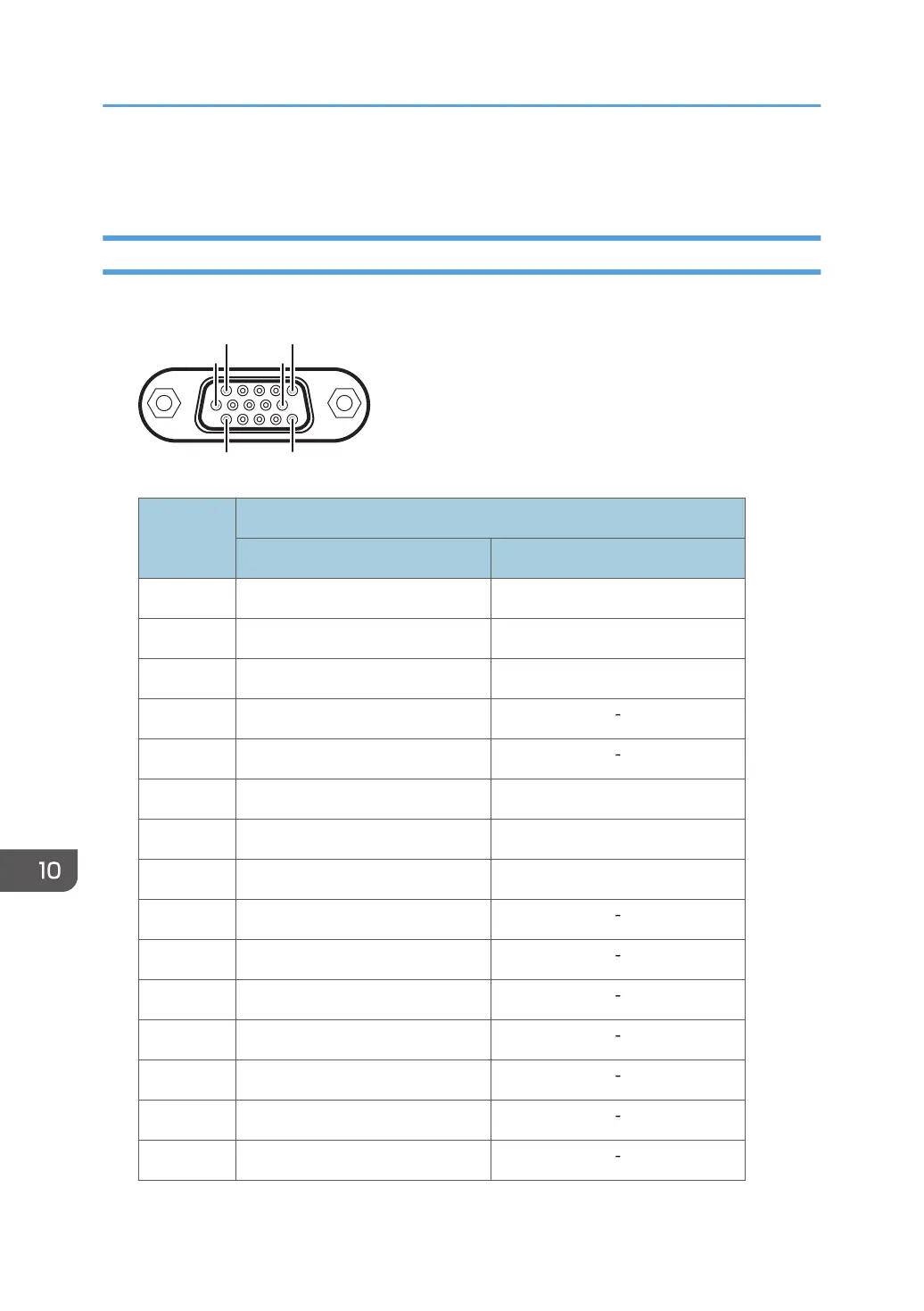

Computer In Port
Pin assignment
5
1
10
1511
6
CLB064
Pin No.
Pin description
During RGB input During Y/Pb/Pr input
1 Video signal (R) Color difference signal (Pr)
2 Video signal (G) Luminance signal (Y)
3 Video signal (B) Color difference signal (Pb)
4 N.C
5 GND
6 GND (R) GND (Pr)
7 GND (G) GND (Y)
8 GND (B) GND (Pb)
9 N.C
10 GND
11 N.C
12 I
2
C Data
13 Horizontal sync signal
14 Vertical sync signal
15 I
2
C CLOCK
