Rotax 912 Series Service Manual

BRP-Rotax
Maintenance Manual
72-00-00
page 80
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02622
3.13.3) Piston pin
See Fig. 72-90
Measure piston pin and check for traces of seizure in area of con-rod
seat. In case of distinct traces of seizure, replace piston pin even if
dimensions are correct.
Measure dimension PI03.
See 72-00-00 sec. 4.
◆ NOTE: The mono hook circlips for axial piston pin circlip must
be used only once and must therefore be replaced.
PI03
07403

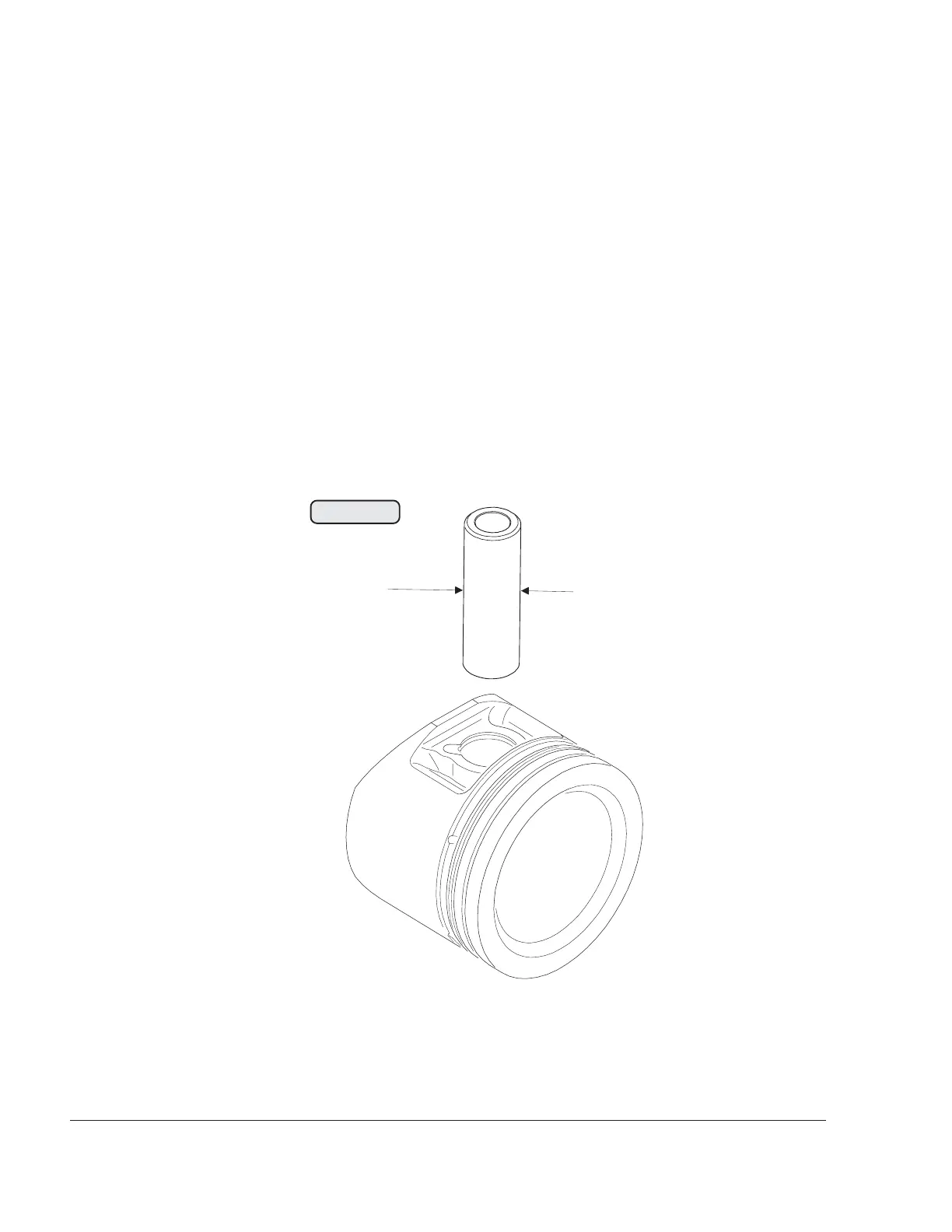

Fig. 72-90
