Rotax 912 Series Service Manual

BRP-Rotax
Maintenance Manual
Effectivity 912/914 Series
Edition 1 / Rev. 0
72-00-00
page 95
May 01/2007
d02622

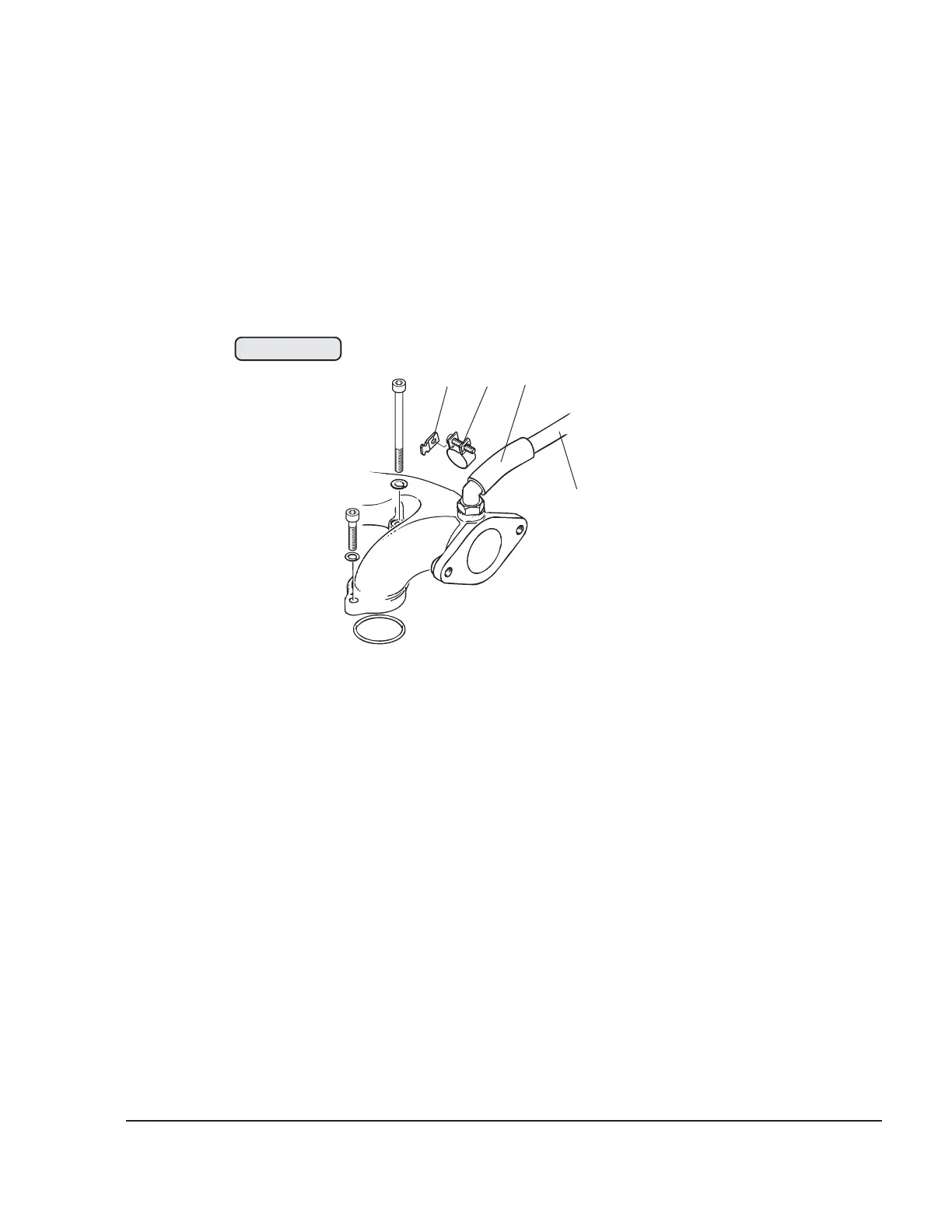

Fig. 72-111
2
3
4
00313
1
3.17) Intake manifold and compensation tube assembly
See Fig. 72-111
Attach compensation tube (1) and the resonator hoses (2) on both ends with
screw hose clamps (3). The spring which supports the carburetor hooks into
the bracket (4). See 73-00-00 sec. 3.5.
