3) Maintenance
The following sections describe maintenance procedure for engines of the 912/914
Series above and beyond the maintenance and special checks, see corresponding
Maintenance Manual (Line Maintenance) for the respective engine type, 912 Series or
914 Series, and the systems descriptions given hitherto. The description is divided into
subsections and descriptions of the function of the various systems.
3.1) Electric starter dismantling
3.1.1) Standard starter

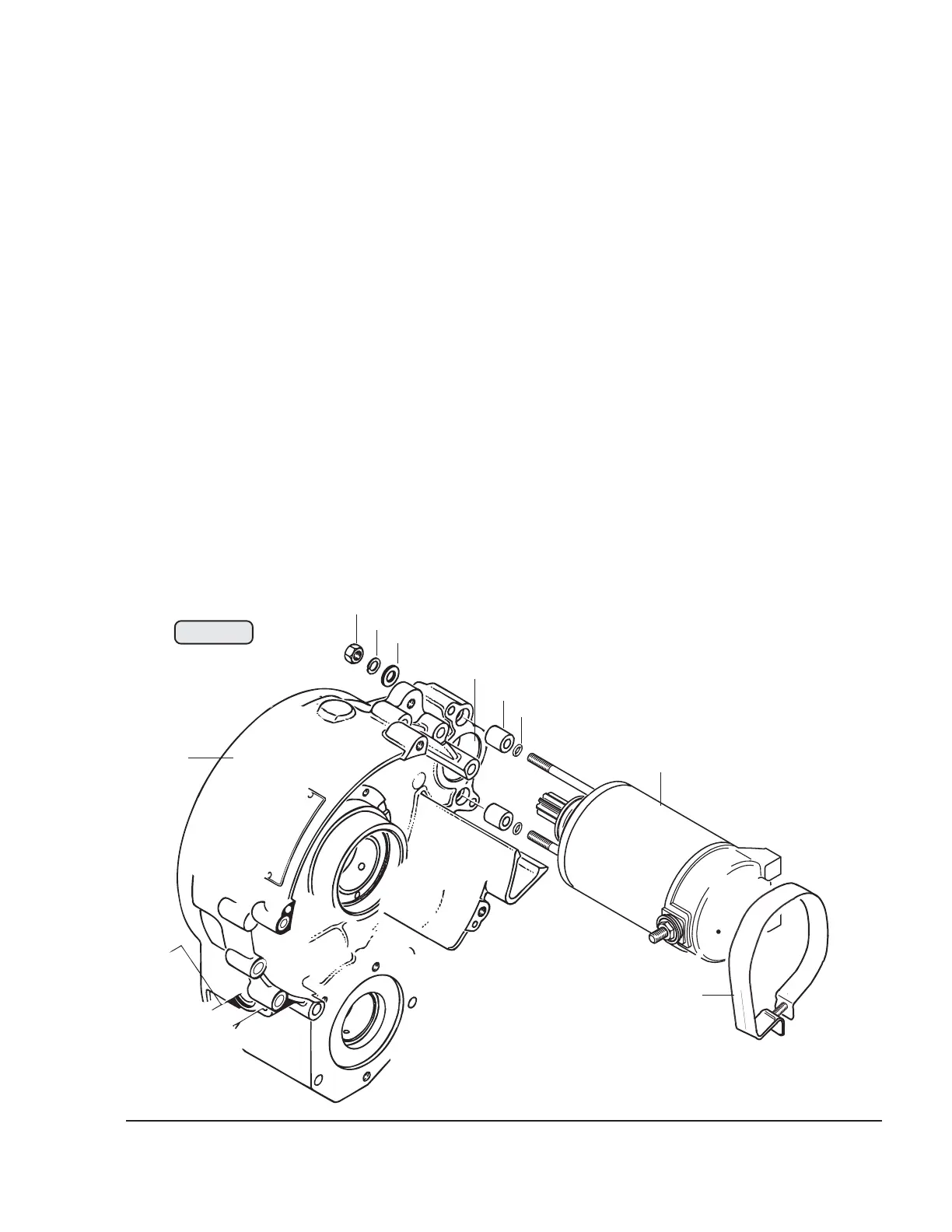

See Fig. 80-1
Remove the 2 hex. nuts M5 (1) with lock washers (2) and washers (3)
from the rear side of the ignition cover (8). The electric starter (6) can
be removed by releasing the tension clamp (7). The electric starter is
kept in position by 2 distance sleeves (4) and O-rings (5).
â—† NOTE: When withdrawing the electric starter from the ignition
housing, hold the bearing flange with starter housing
and rotor bearing together. Otherwise the carbon
brushes will jump off the commutator.
