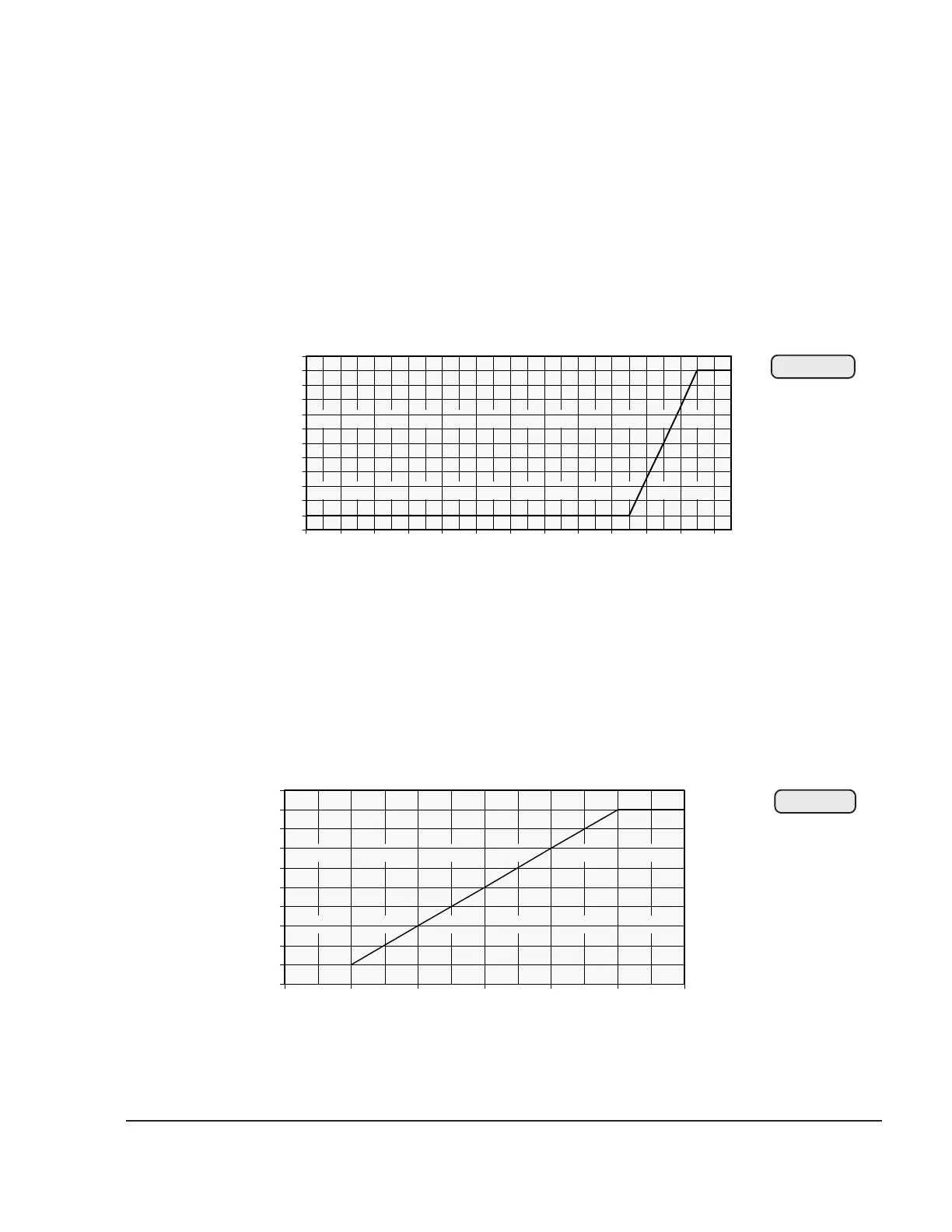

2.1.2.2) Target pressure reduction at excessive airbox tempera-
ture
See Figs. 76-7 and 76-8.
During the compression process in the turbocharger, the
intake air is heated. To reduce the risk of detonation at high
boost pressure with high intake air temperature, lowering of
the target pressure starts at 88 °C (190 °F) airbox tempera-
ture, see diagram (Fig. 76-7).
-20
0
20
40
60
80
100
120
140
160
180
70 72 74 76 78 80 82
Airbox Temperatur [°C]
(airbox temperature)
Druckreduktion [hPa]
(pressure reduction)
Target pressure reduction will result in a drop in maximum
performance e.g. the power drop can reach up to 10 kW at
80 °C (176 °F) airbox temperature.
◆ NOTE: On TCU part no. 966470 to 966473, the airbox
target pressure reduction starts at 72 °C
(162 °F). See Fig. 76-8.
