13
LAMPS AND
LIGHTING
92

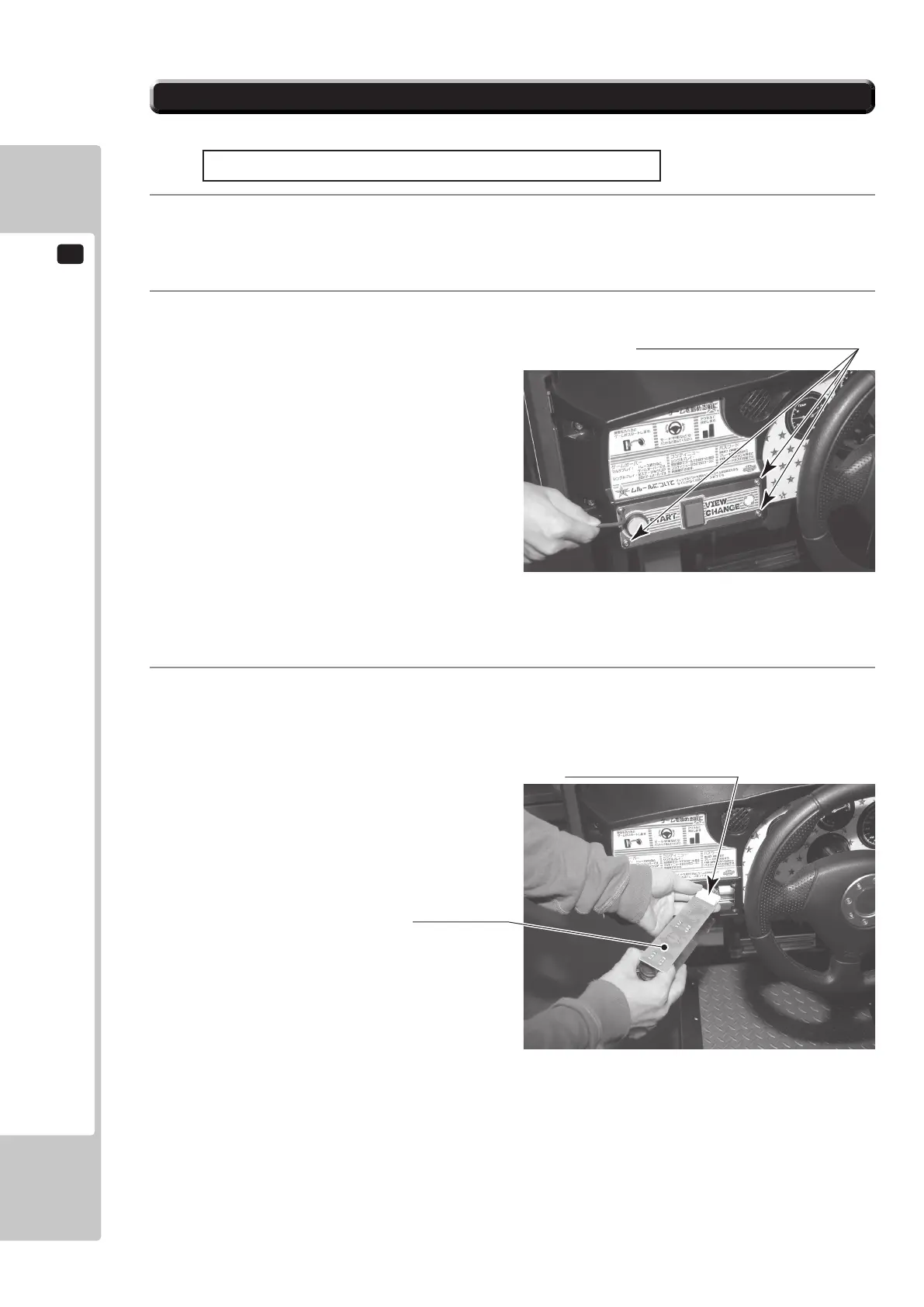

SWITCH PLATE
Disconnect the connector.
Start Button Lamp, View Change Button Lamp
1
T
urn off the power
2
Remove the 4 tamper proof screws.
TAMPERPROOF SCREW (4), chrome
M4x16
3
Remove the Switch Plate. The Switch Plate contains wiring connections. Disconnect the connector
, taking
care not to damage the wiring.
13.5 START AND VIEW LAMPS
Please note that the images shown may differ from
actual product but the process is the same.
100
102
Table of Contents
Default Chapter
2
Before Using the Product
2
To Maintain Safety
2
Specification Changes
3
Table of Contents
4
Introduction
6
Specifications
6
Other Qualified Professionals
7
Site Maintenance Personnel
7
Battery Recycling Statement
8
1 Handling and Precautions
10
Concerning the Sticker Display
11
Concerning Warning Displays
11
Limitations of Usage
13
2 Precautions Regarding Installation Location
13
Operation Area (Us Cabinet)
14
Operation Area (Eu Cabinet)
16
3 Precautions Regarding Product Operation
17
During Operation (Paying Attention to Customers)
19
4 Part Descriptions
20
5 Accessories
21
6 Assembly and Installation
23
Installing the Cabinet
24
Tools Required for Installation
24
Installing the Billboard Plate
25
Installing a Twinned Cabinet
26
Fixation to Installation Site
30
Power Supply, and Ground Connection
32
Turn on Power
34
Comfirmation of Assembly
35
Input Test
35
Output Test
35
Coin Settings
35
Applying Warning Labels
36
7 Precautions When Moving the Machine
37
Precautions When Moving (Us Std)
38
Precautions When Moving (Eu Twin)
40
8 Playing the Game
41
Game Description
41
Game Outline
41
Standby Screen
41
The Game
41
Championship - Single Player
42
Quick Race - 1 to 6 Players
43
Multiplayer
44
Track Selection
45
Car Selection
46
Transmission Select
46
Bonnet Camera
47
Bumper Camera
47
Drivers View – Camera Position
47
On Screen Display
47
High Score Tables
48
Transmission
48
Explanation of Test and Data Display
49
Switch Unit and Coin Meter
50
Vts Unit (E.u. Type)
51
Test Menu
52
Test Mode
52
System Information
53
Input Test Mode
54
Sound Test
57
Screen Test
58
Brightness Screen
59
Grid Alignment
59
Network Test
60
Calibration Test
61
Bookkeeping
62
Clock Settings
66
Game Settings
66
Cabinets Are Unable to Start a Multiplayer Session Together
67
Linked Cabinets will Not Sync Together in the Attract Mode
67
The Steering Wheel Does Not Work Correctly in the Game
67
Troubleshooting
67
Controller Unit(S)
69
Controller - Exploded Diagram
70
Shift Lever
71
Shift Lever Removal
71
Shift Switch Replacement
72
Brake and Accelerator Unit
73
Adjusting Procedure
74
Adjusting/Replacing the Volume Pot
75
Replacing the Volume
75
Graphics Display
77
Safety Precautions When Handling the Monitor
77
Cleaning the Screen Surface
78
Adjustment Method
79
Control - Adjustment Procedure
79
Button Names and Functions
80
On-Screen Display (OSD)
81
Available Settings
82
Brightness
82
Contrast
82
Csm
82
11 Display Lcd
83
Coin Handling
83
Cleaning the Coin Selector
83
Cleaning the Coin Selector (Mechanical)
84
Fault Finding
86
Adjusting the Price of Play
87
EXCEL Credit Board
87
DIL SW3 (Regional Settings)
87
Adjusting the Price of Play (Vts)
88
VTS Board
88
Regional and Acceptor Settings (Sw3)
89
Sterling Price of Play Settings (Sw1)
90
Euro Price of Play Settings (Sw1)
91
Sr3 Options - Sterling / Euro Select
92
Selecting Sterling / Euro Option
92
Bank Select
92
Both Banks on (Enabled) - Sterling and Euro’s
92
Teach and Run Programming (Sr3)
93
13 Lighting and Lamp Replacement
94
Lamps and Lighting
94
Coin Door Lamp Replacement
94
Led Lighting - Billboard
95
Race Leader Led
97
Recovery Lamp
99
Start and View Lamps
101
Start Button Lamp, View Change Button Lamp
101
14 Periodic Inspection
103
Cleaning the Cabinet Surfaces
104
Seat (Greasing to Seat Rail Portion)
104
When no Error Message
105
15 Troubleshooting
105
Replacing Fuses
108
16 Game Board
109
Game Board - Location
110
Communication Play
114
Installation Precautions
114
Distance between Machines
115
Connecting the Communication Cable
116
Network Play Settings
117
Network Play Precautions
118
18 Design Related Parts
119
19 Parts List
120
Assy Top Grid 42
121
Assy Coin Chute Tower
123
Assy Cockpit
124
Assy Monitor Cabi
127
Assy Sub Monitor Cabi
129
Assy Lcd Monitor
130
Assy Monitor Mask
131
Assy Main Base
132
Assy Base Box
134
Assy Ac Unit
135
Assy Adjustable Seat
136
Assy Seat
137
Assy Woofer
138
Assy Woofer Led
138
Assy Control Panel
139
Assy Sw Plate Credit
142
Assy 12Vdc Fan
143
Wire Color Code Table
144
