Sega Grid 42 User Manual

115
PARTS LIST
19

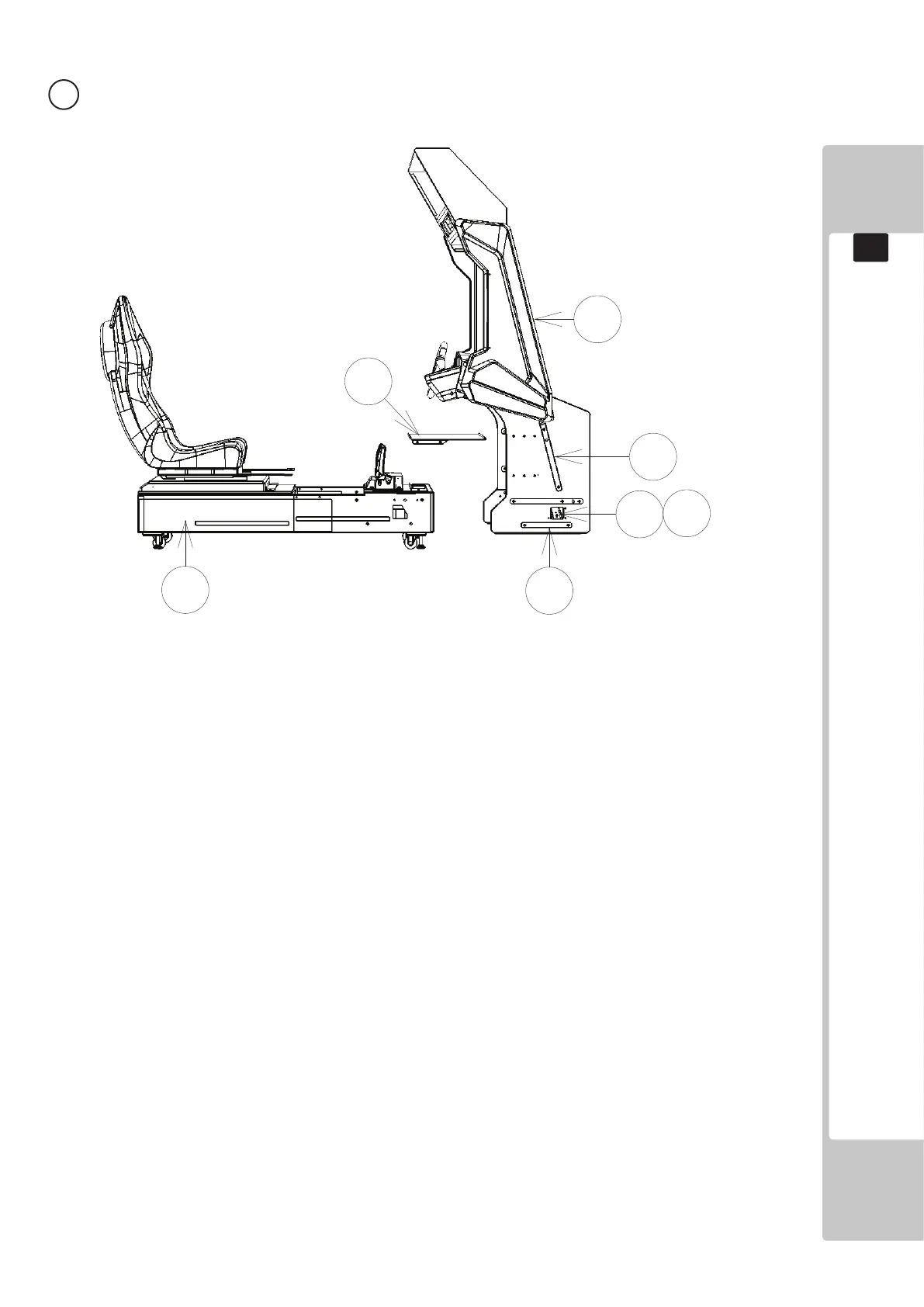

3 ASSY COCKPIT (RD-1000ZUK) (D-1/1)
ITEM NO PART NUMBER DESCRIPTION QTY
**1 PD-1200XUK ASSY MONITOR CABI 1
**2 RD-1500ZUK ASSY MAIN BASE 1
**4 RD-1001UK MON CABI PLATE UPPER 4
**5 RD-1002UK MON CABI PLATE LOWER 2
**7 RD-1004UK STRUT CABINET SUPPORT 2
**8 RD-1005UK BRKT OUTER CABI SUPP 2
**12 PD-1502UK BASE LID F 1
**14 RD-1011UK PLATE CONN BASE BOX 1
**201 030-000840-SB M8X40 BLT W/S BLK 14
**202 068-852216-0B M8 WSHR 22OD FLT BLK 18
**205 050-F00400 M4 NUT FLG SER PAS 3
**207 060-F00400 M4 WSHR FORM A FLT PAS 3
**209 000-T00512-0C M5X12 MSCR TH CRM 4
**210 030-000635-S M6X35 BLT W/S PAS 6
**211 031-000640-0B M6X40 CRG BLT BLK 8
**212 068-652016 M6 WSHR 20OD FLT PAS 14
**213 050-F00600 M6 NUT FLG SER PAS 8
**301 600-9010-44K WH EARTH 10CM M4M4 3
**302 600-9020-44K WH EARTH 20CM M4M4 4
**303 600-9040-44K WH EARTH 40CM M4M4 1
**304 600-9050-44K WH EARTH 50CM M4M4 1
**305 600-9060-44K WH EARTH 60CM M4M4 1
**306 600-9120-44K WH EARTH 120CM M4M4 1
**307 600-7009-1800UK ASSY RGB CA D-SUB 15 1
**308 RD-60042UK WH COIN HANDLING B 1
1
2
4
5
7
12
14
