LAMPS AND LIGHTING
88
13-3 RACE LEADER LED
1

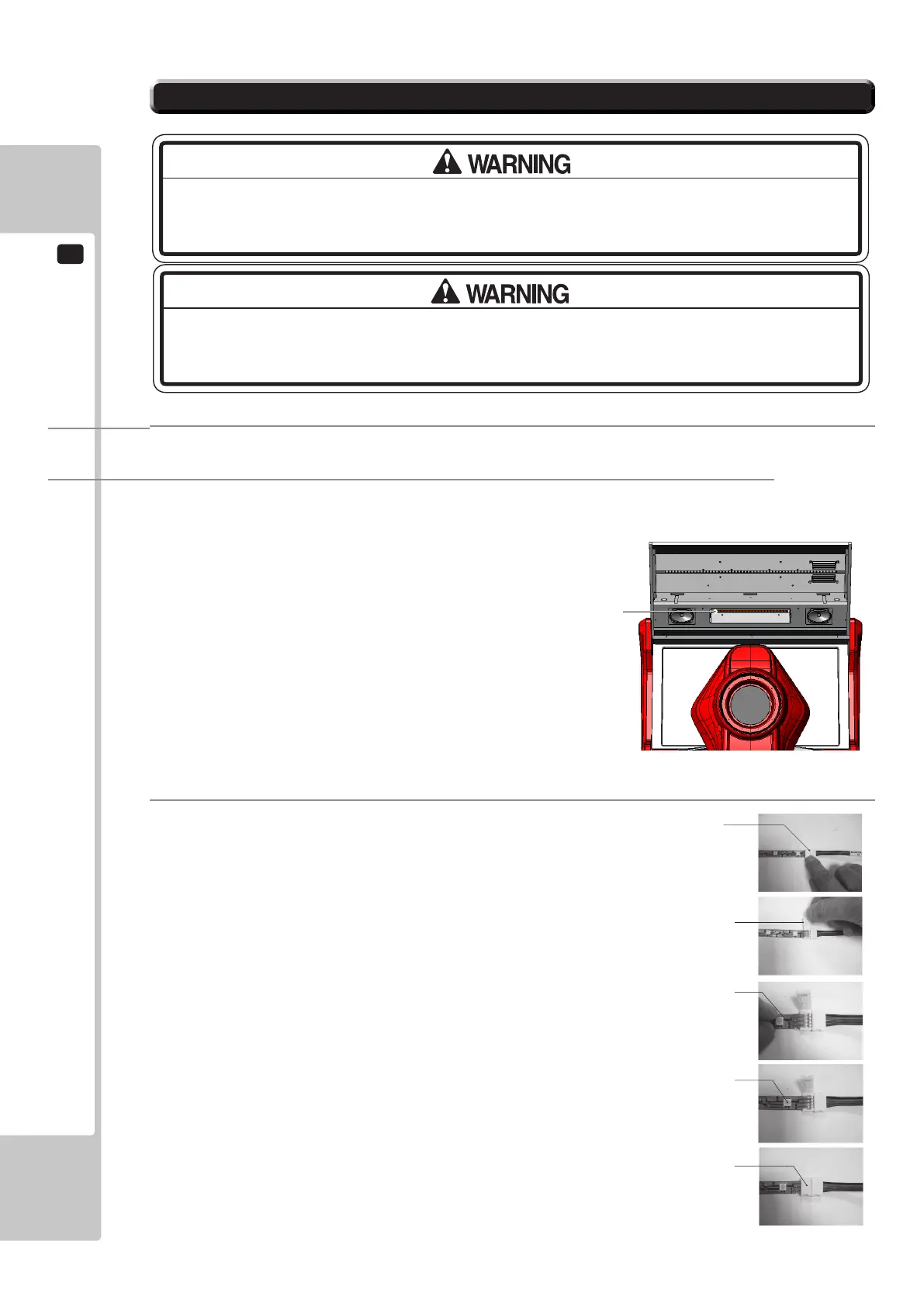

The K.O Feature Lamp is a strip of bright white LED’s mounted on a self adhesive strip.
2
To gain access to the RACE LEADER Lamp, remove the BILLBOARD PLATE as described in the
previous section.
THIS WORK ON TOP OF THE CABINET, SHOULD NOT BE UNDERTAKEN WITHOUT THE
USE OF A SUITABLE STEP OR FOOTSTOOL.
MAKE SURE THAT THE MAIN SUPPLY VOLTAGE TO THE MACHINE IS SWITCHED
OFF BEFORE ATTEMPTING TO CARRY OUT THIS WORK
3
Unclip the LED cable clamp at the end of the LED strip and remove.
1
The Race Leader Lamp is a strip of bright white LED’s mounted on a self adhesive strip.
Feature Lamp
Clamp
Unclip the Clamp
Lock the Clamp
Carefully pull the LED strip away
from the clamp
Re-t the NEW LED strip - ensure that
the LED strip is pushed underneath
the contacts of the clamp
