ASSEMBLY AND INSTALLATION
21
6
6-2 FIXATION TO INSTALLATION SITE
• Makesurethatalltheadjusterscontacttheoor.Otherwisethecabinetcould
move,causinganaccident.
• Provideaventilationspaceatleast20cmwidebehindthecabinet.Thereare
ventilation holes on the back of the cabinet. Do not block the ventilation holes.
Doingso couldtrapheatinside resultinginre.It couldalsoresultin equipment
damageorcausepartstobecomeexhaustedprematurely.

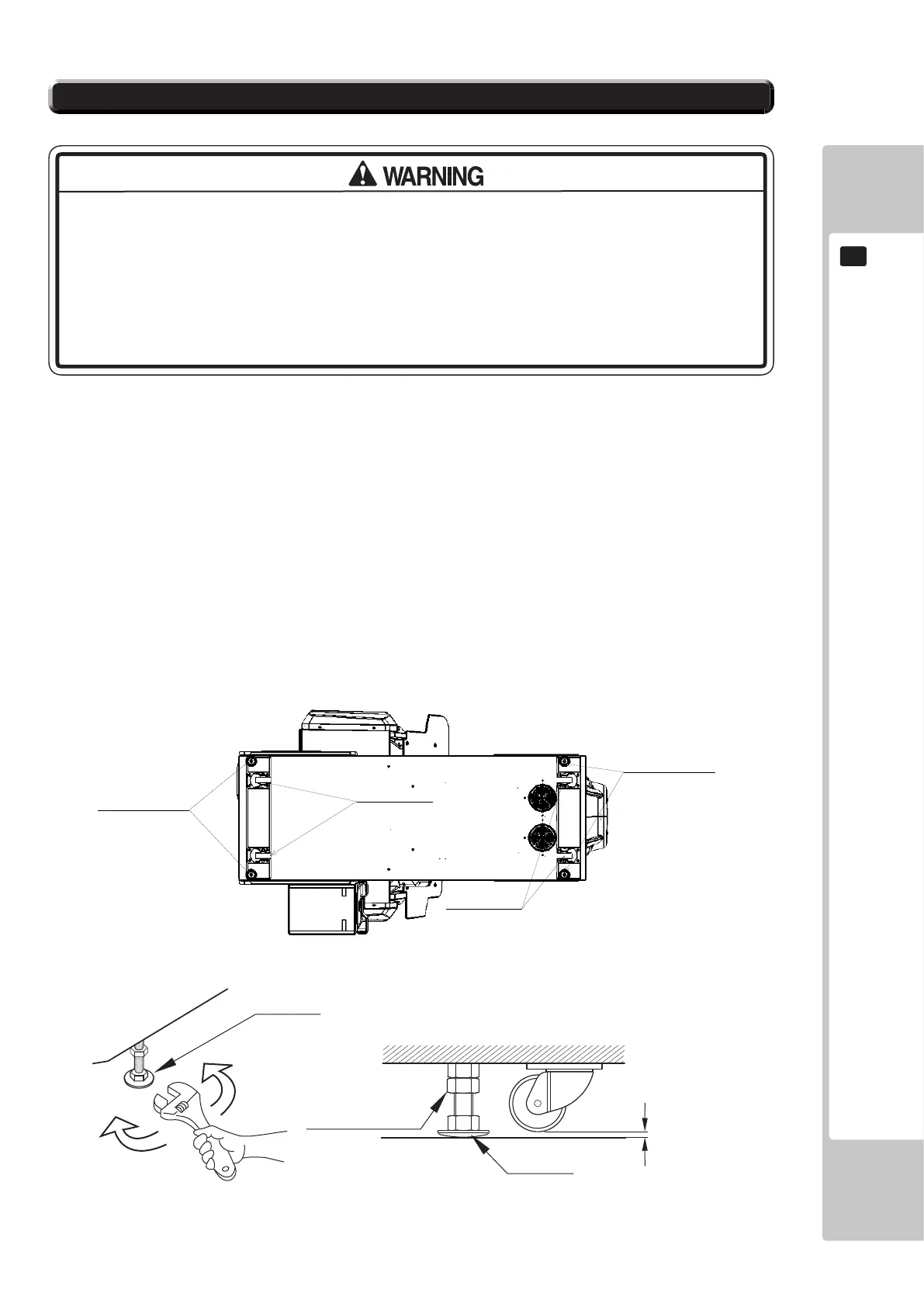

The product is equipped with 4 casters and 4 adjusters.
When installation position / site has been determined, have the adjusters come in direct contact with the floor.
Establish a gap of about 5 mm between the oor and the casters and adjust the unit so that it will remain level.
1 Move the product to the installation site.
2 Bring the adjusters into direct contact with the oor. Use a wrench to align the height of the adjusters until the
cabinet is perfectly level.
3 After setting, turn adjuster nuts upwards to tighten them and secure adjuster heights.
Approx. 5 mm
ADJUSTER
Fasten the nuts in an
upward direction.
ADJUSTER
CASTER
Casters
Casters
Adjusters
Adjusters
