Sega Grid 42 User Manual

128
PARTS LIST
19

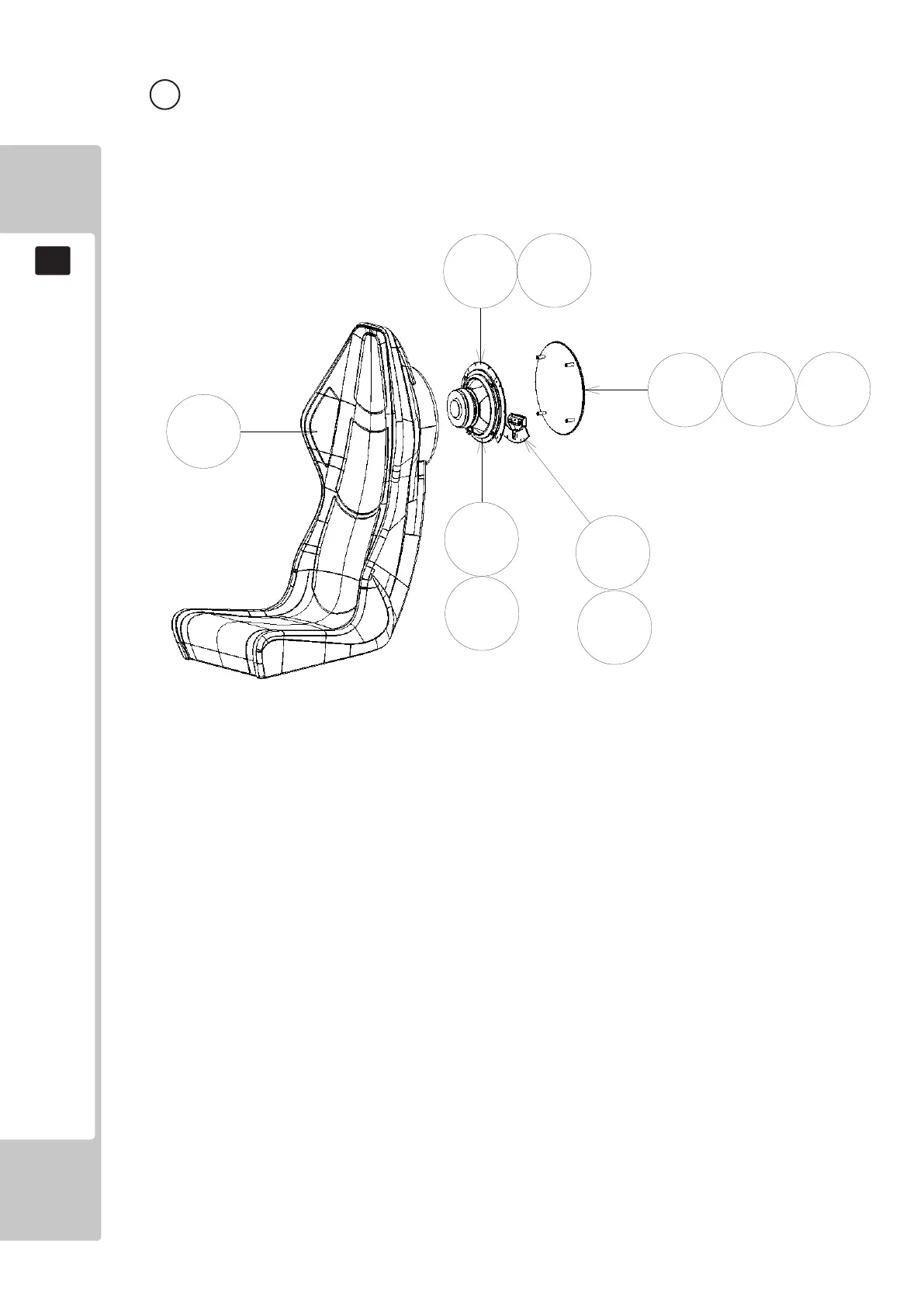

13 ASSY SEAT (RD-1650UK) (D-1/1)
1
2
3
4
5
102
201
202
202
202
ITEM NO PART NUMBER DESCRIPTION QTY
*****1 RD-1670UK ASSY WOOFER 1
*****2 RD-1680UK ASSY WOOFER LED 1
*****3 SRC-1651-01-A SEAT 1
*****4 RD-1652UK WOOFER BRKT B 1
*****5 RD-1654UK WOOFER DESIGN PLATE 1
*****6 RD-1651-BUK STICKER SEAT UPPER 1
*****7 RD-1651-CUK STICKER SEAT LOWER 1
*****102 280-6686-01UK 4.5X16X4 SP WSHR 4
*****201 FAS-290042 M4X12 HEX SKT LH CAP SCR STN 4
*****202 012-P00416-FZ N8X5/8” S/TAP FLG 0Z 10

Sega Grid 42 Specifications

General

Brand	Sega
Model	Grid 42
Category	Arcade Game Machines
Language	English
