EXPLANATION OF TEST AND DATA DISPLAY
41
9
9-1-1 SWITCH UNIT (U.S. TYPE)
Open the coin chute door, and the switch unit shown will appear.
The functioning of each SW is as follows:
TEST Button (TEST):
For the handling of the Test Button, refer to the
following pages.
SERVICE Button (SERVICE): Gives credits without registering on the coin meter.
Sound Volume Switch (SOUND VOLUME): Adjust sound volume for all of the machines’ speakers.
Coin Counter Counts and displayes coins in $0.10 units.
9-1 SWITCH UNIT AND COIN METER (U.S)
• Adjustthesoundtotheoptimum volume,takingintoconsiderationthe
environmentalrequirementsoftheinstallationlocation.
• RemovingtheCoinMetercircuitryrendersthegameinoperable.
Nevertouchplacesotherthanthosespecied.Touchingplacesnotspeciedcan
causeelectricshockandshortcircuitaccidents.

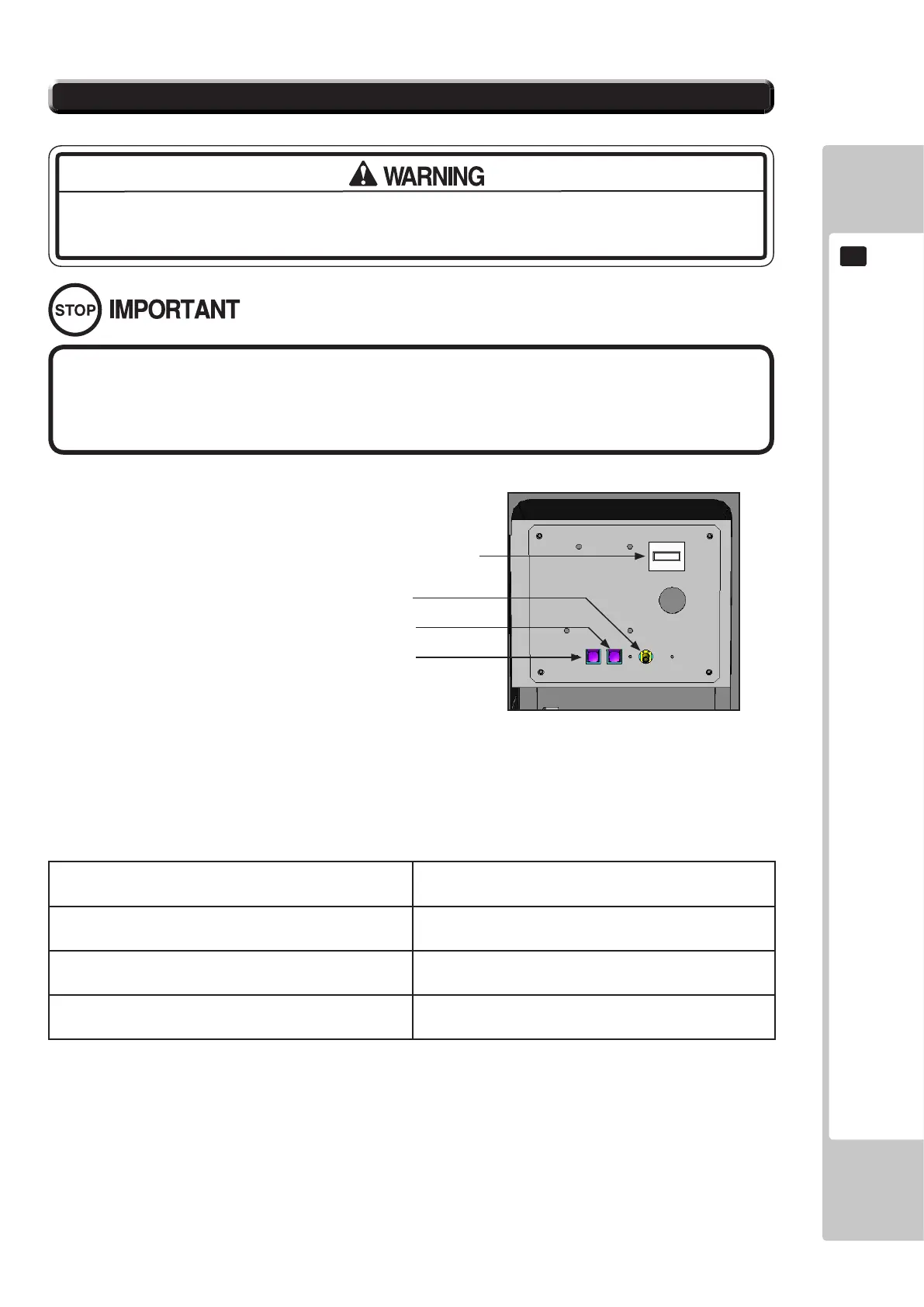

9-1-1 FIG. 01
Volume Control
Service Button
Test Button
Coin Counter
