Sega Grid 42 User Manual

129
PARTS LIST
19

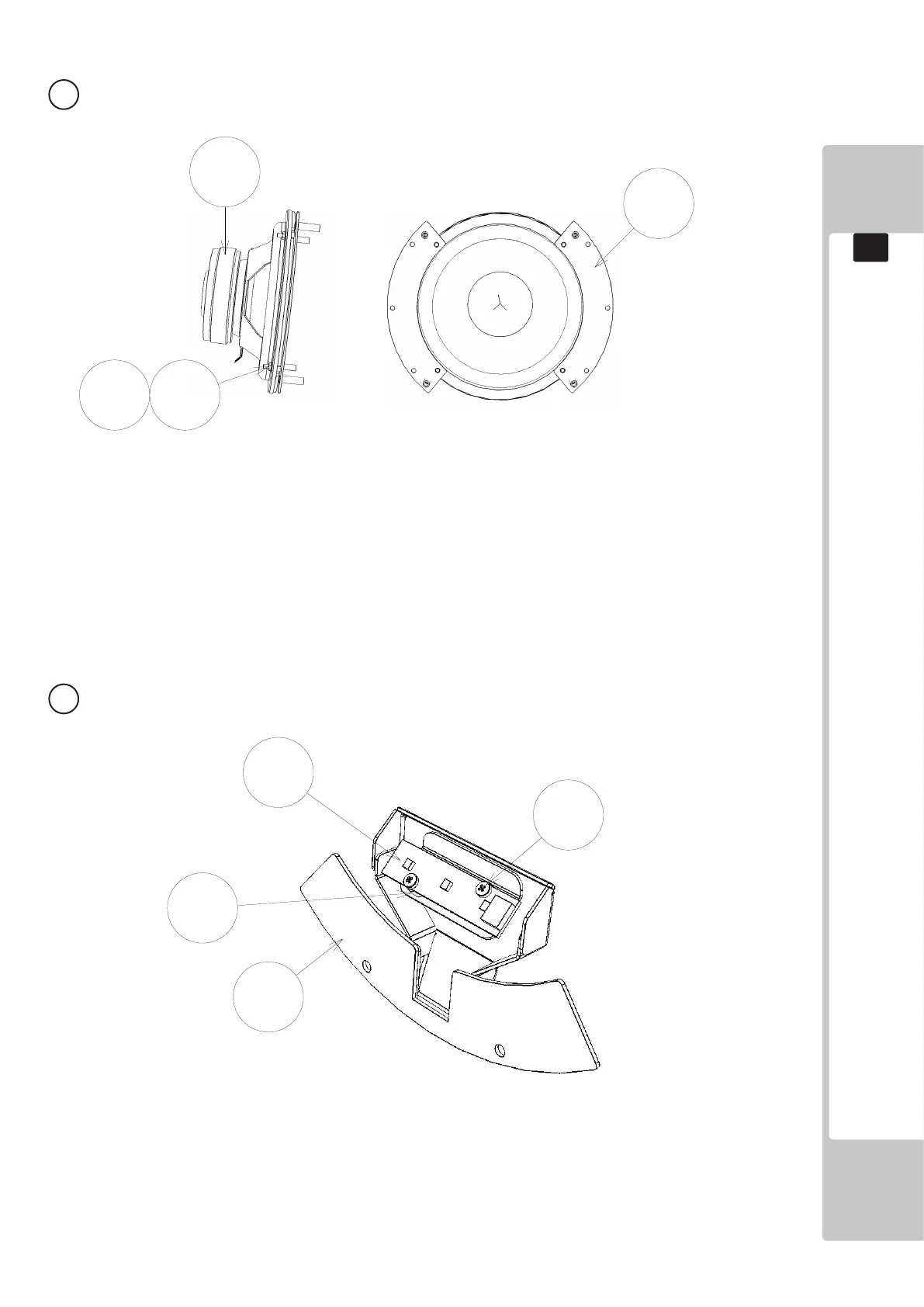

14 ASSY WOOFER (RD-1670UK) (D-1/1)
1
101
201202
1
101
102
201
15 ASSY WOOFER LED (RD-1680UK) (D-1/1)
ITEM NO PART NUMBER DESCRIPTION QTY
******1 RD-1671UK WOOFER BRKT A 2
******3 280-L00808-OS STANDOFF 7.94OD 4.93ID 7.94L 4
******101 130-5280 WOOFER 4OHM 80W SILVER RNE 1
******201 060-F00400 M4 WSHR FORM A FLT PAS 4
******202 050-U00400 M4 NUT NYLOK PAS 4
ITEM NO PART NUMBER DESCRIPTION QTY
******1 RD-1681UK WOOFER BRKT C 1
******101 838-14973-01 LED BD RGB 3X1BLOCK 1
******102 280-L00605-OS STANDOFF 6.35OD 3.56ID 4.76L 2
******201 000-P00312-PN M3X12 MSCR PAN NYLON NAT 2
