ASSEMBLY AND INSTALLATION
15
6

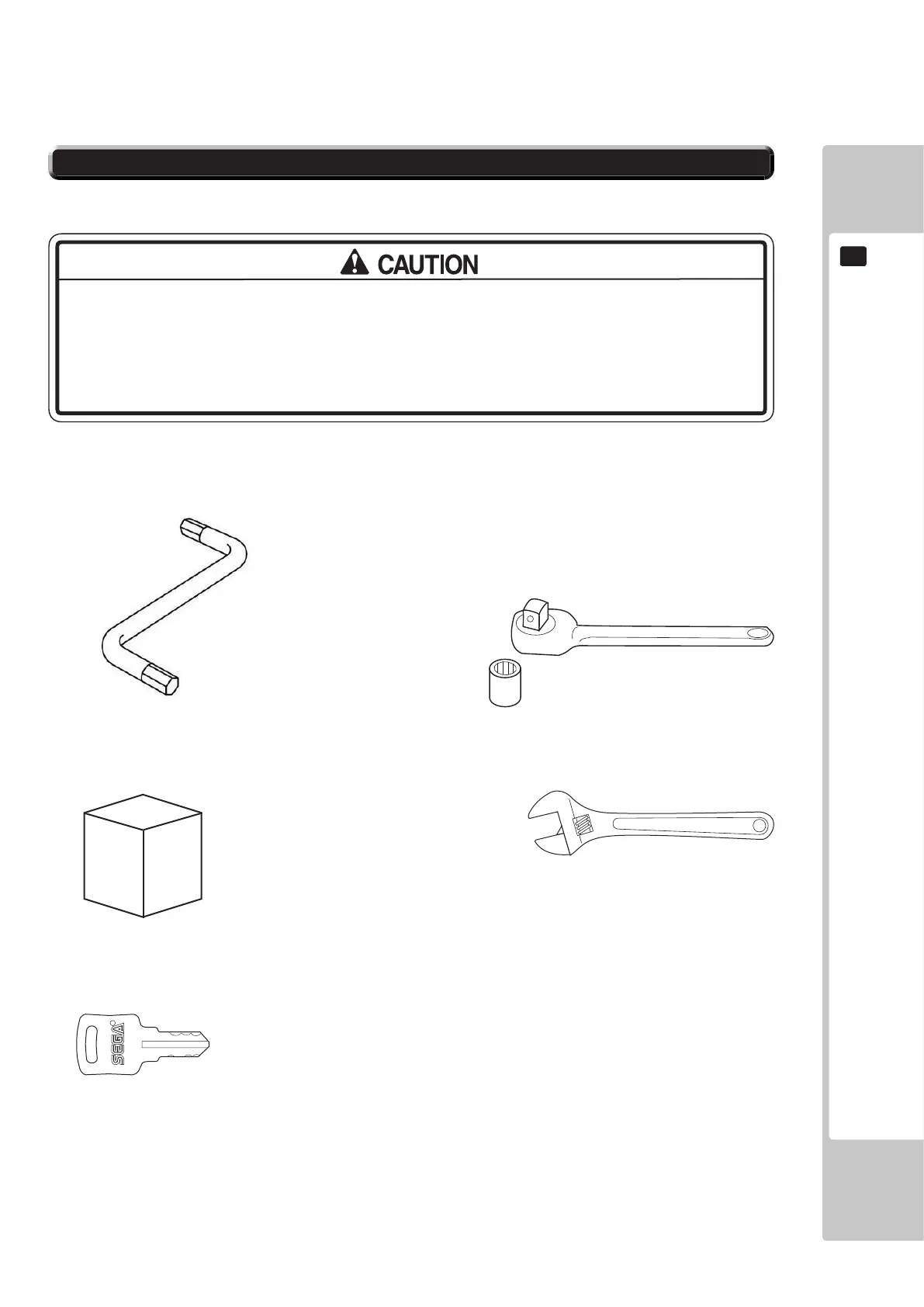

Tools required for installation
6-1 INSTALLING THE CABINET
• Billboardweighsapproximately19kg.Haveatleast2peopleduringthis
operation.Workingalonecouldresultinpersonalinjuries,etc.
• To perform work safely and securely, be suretopreparea step which is in a
safeandstablecondition.Performingworkwithoutusingastepmayleadtoinjury
ofdamagetocomponents.
Allen Key (M5)
- Attaching Billboard Panel to Assy Billboard.
(Not Supplied)
Hex Driver or Wrench (M6, M8)
- Attaching Assy Billboard / Coin Tower to cabinet.
Step or Ladders
- Aid in xing Billboard and Billboard Panel.
Adjustable Wrench
- Secure cabinet into position.
KEY
- Gain access to Coin Tower
