Sega Grid 42 User Manual

13
LAMPS AND LIGHTING
90
13-4 RECOVERY LAMP
MAKE SURE THAT THE MAIN SUPPLY VOLTAGE TO THE MACHINE IS SWITCHED
OFF BEFORE ATTEMPTING TO CARRY OUT THIS WORK
1
Locate the Recovery Lamp housing positioned on the Left hand side of the cabinet above the Start and View
switches.
2
Access to the Recovery Switch and Lamp housing is via the rear access panel.
THE RECOVERY LAMP IS A 12V (White) LED TYPE. IT IS IMPORTANT THAT YOU
REPLACE THIS LAMP WITH A LAMP OF THE SAME SPECIFICATION. REPLACING
THE LAMP WITH A FILAMENT BULB OR A LED OF A DIFFERENT SPECIFICATION
MAY RESULT IN PCB FAILURE OR EVEN A FIRE HAZARD.

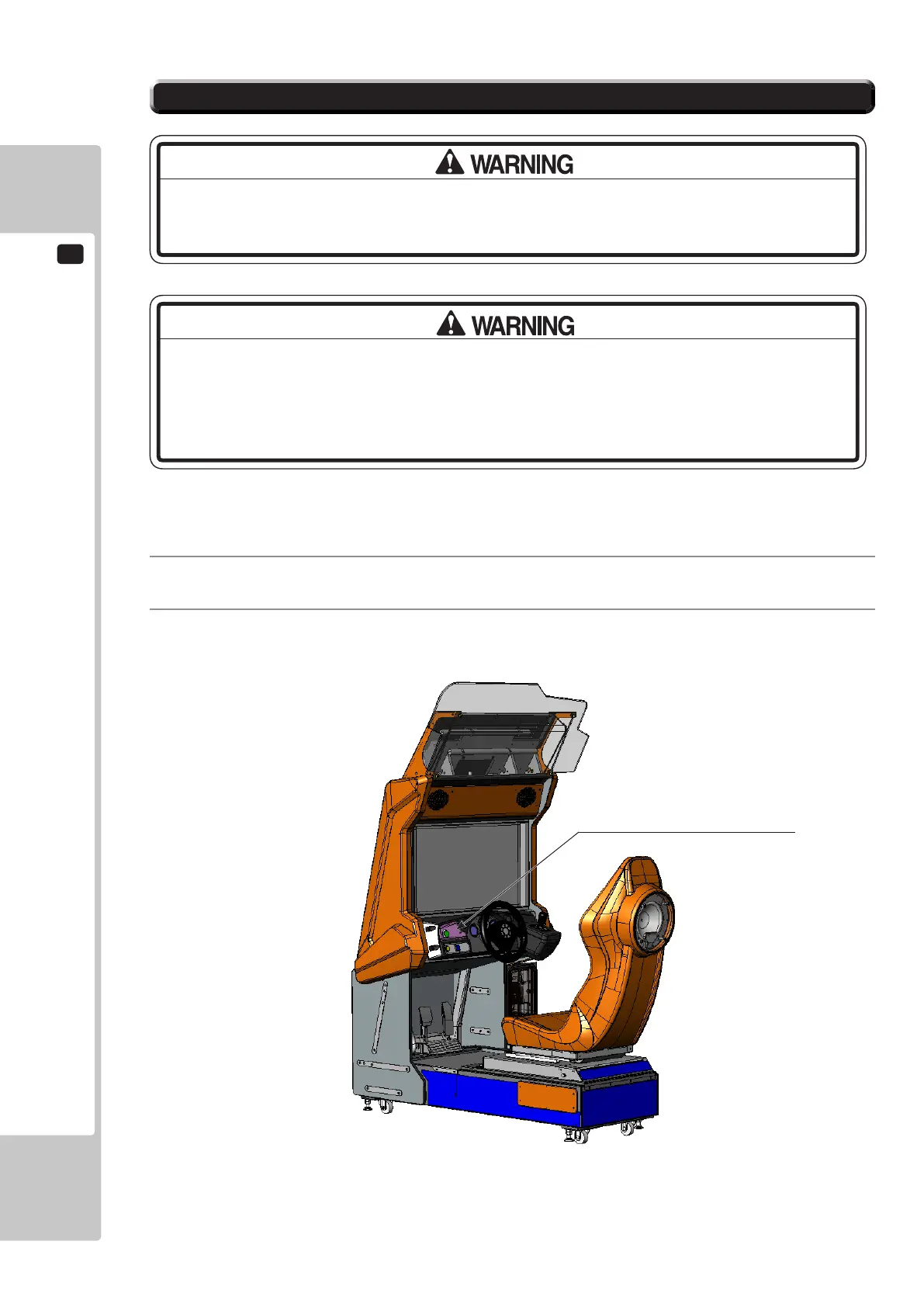

Recovery Switch and Lamp housing
