PARTS LIST
19

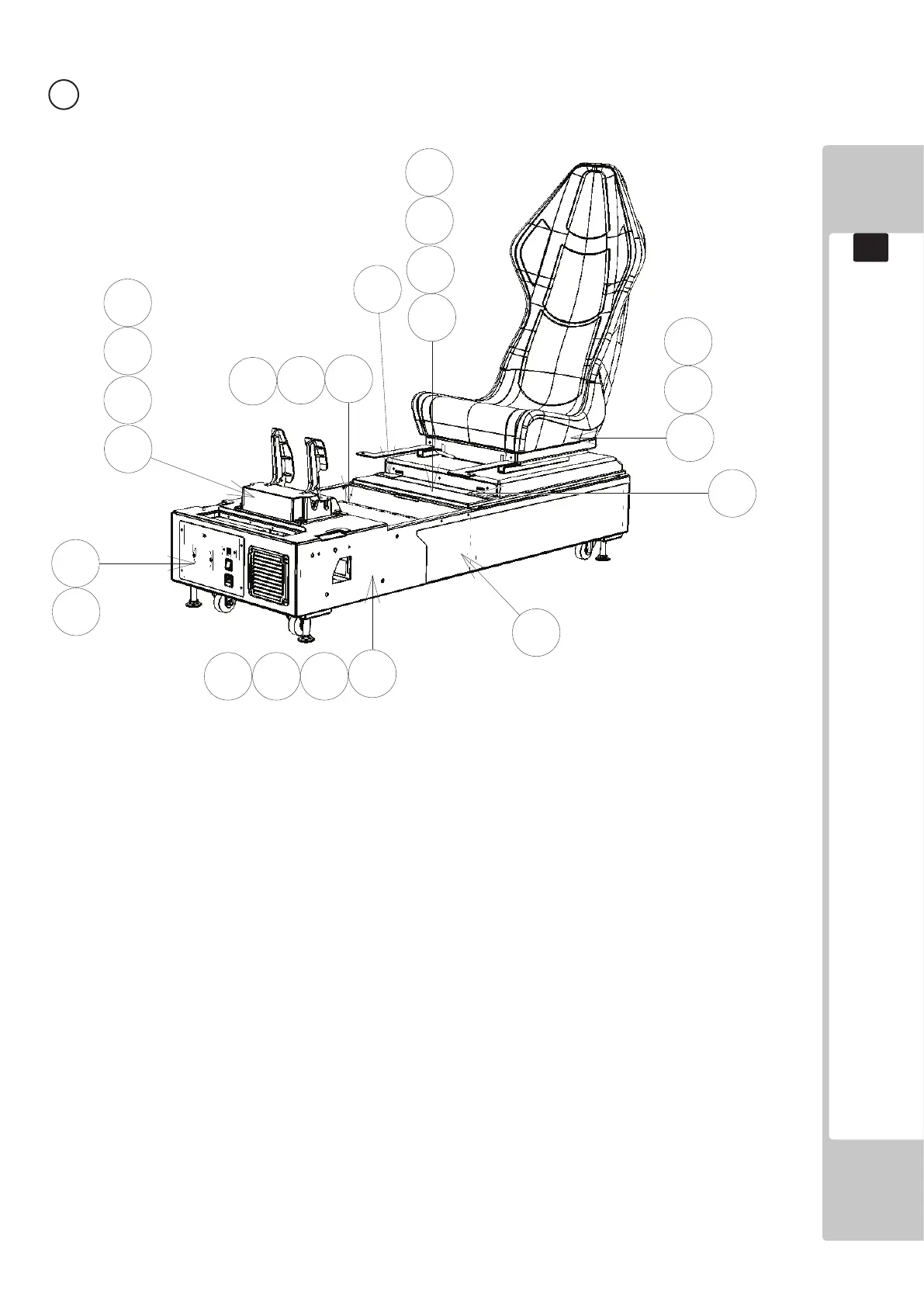

9 ASSY MAIN BASE (PD-1500ZUK) (D-1/2)
1
2
3
4
5
7
8
9
17
102103104
11
201
202
203
204
205
206
206
207
207
208
ITEM NO PART NUMBER DESCRIPTION QTY
***1 PD-1520UK ASSY BASE BOX 1
***2 PD-1540UK AC UNIT 1
***3 RD-1600ZUK ASSY ADJUSTABLE SEAT 1
***4 610-0874-01 ASSY ACCEL & BRAKE 1
***5 RD-4500ZUK ASSY MAIN BD 1
***6
***7 PD-1535UK ASSY BASE LID R 1
***8 RAL-2007X RUBBER HOLDER R TWIN 1
***9 RAL-2008X RUBBER HOLDER L TWIN 1
***11 RD-9003XUK STICKER MAIN BASE L 1
***12 RD-9004XUK STICKER MAIN BASE R 1
***13 RD-1505UK STICKER MAIN BASE REAR 1
***17 SPG-2224UK PEDAL GASKET 1
***101 EP1392 15P-VGA GENDER CHANGER 1
***102 260-0012-01UK FAN DC 12V ROHS 1
***103 FN1012 FAN GUARD METAL 120MM 2
***104 OS1195 RIVET SNAP MOSS SR1811 4
