Sega Grid 42 User Manual

CONTROL UNIT
65
10
When the accelerator pedal is not being pressed, the accelerator volume should have a value of 30H or less. When
the pedal is being pressed, the value should be C0H or greater.
When the brake pedal is not being pressed, the value should be 35H or less. When the pedal is being pressed, it
should be D0H or more. You can view these values in test mode. Note that the unit must be switched on to use test
mode. Do not touch any part of the unit except those areas indicated when the unit is switch on, as there is a danger
of electrical shock or short-circuit.
For this task, you will need a Phillips-head screwdriver (for M4, M5 screws).

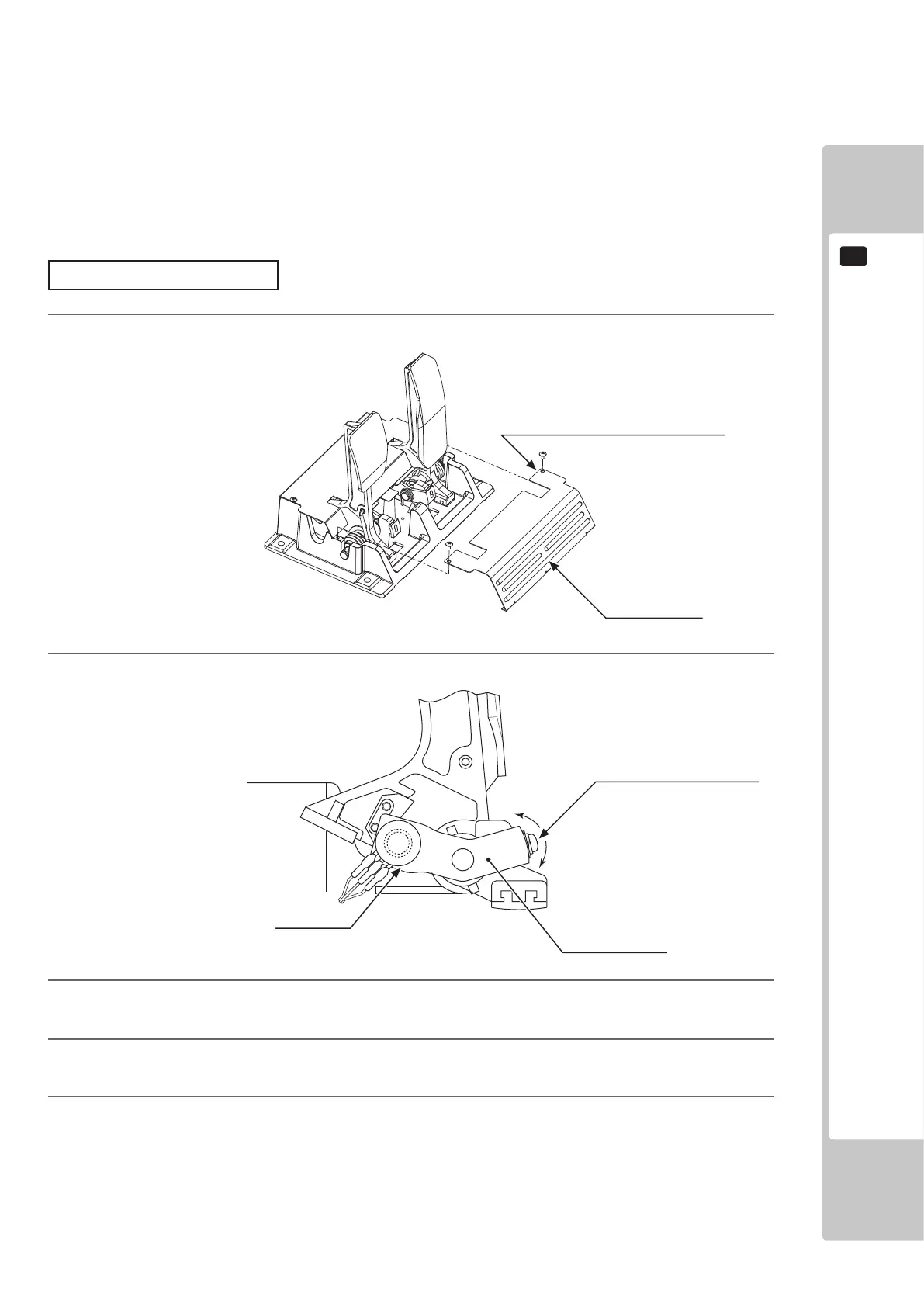

Adjusting Procedure
1
Ontheacceleratorandbrakepedalunit,removethetwotrussscrewsandlifto󱐯thefrontcover.
10-3FIG.01
2
Loosenthesinglescrewthatsecuresthepotentiobase,andmovethebasetoadjustthevolume
values
.
10-3FIG.02
3
Securethepotentiobase.
4
CongurethevolumevaluesontheINPUTASSIGNMENTSscreeninGameTestMode.


5
Checkthatthevalueschangesmoothlyinresponsetopedalinput.
TRUSS SCREW (2), chrome
M4x8
FRONT COVER
SCREW (1)
M5x12, w/at & spring washers
POTENTIOBASE
VOLUME
220-5484
220-5753
